DABPM9251 Adaptor – DME&JDE Group

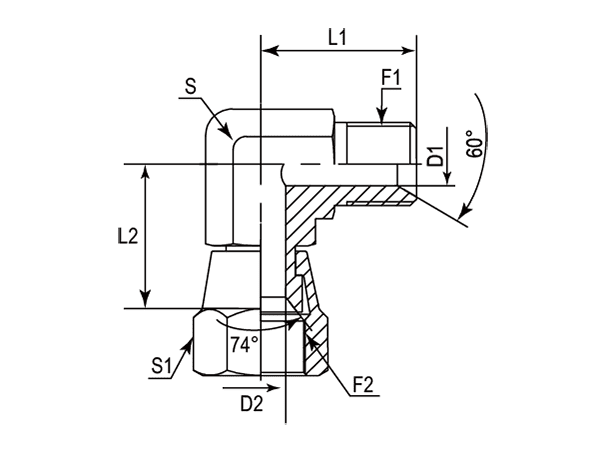

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	S1
-01	DABPM9251-0404	1/4"-19	7/16"-20	4.70	4.40	26.00	22.00	14.00	14.00
-01	DABPM9251-0406	1/4"-19	9/16"-18	4.70	7.54	26.00	22.23	14.00	19.00
-06	DABPM9251-0606	3/8"-19	9/16"-18	7.90	7.54	28.00	22.23	19.00	19.00
-06	DABPM9251-0608	3/8"-19	3/4"-16	7.90	9.93	29.00	24.33	19.00	22.23
-08	DABPM9251-0806	1/2"-14	9/16"-18	11.10	7.54	34.00	25.15	22.00	19.00
-08	DABPM9251-0808	1/2"-14	3/4"-16	11.10	9.93	34.00	26.16	22.00	22.23
-08	DABPM9251-0810	1/2"-14	7/8"-14	11.10	12.29	34.00	28.45	22.00	27.00
-12	DABPM9251-1212	3/4"-14	1-1/16''-12	16.70	15.47	40.00	30.20	27.00	31.75

DABPM105M

Straight Connector BSPP Male 60° Cone – BSPP Male 60° Cone

DABPM128M

Straight Connector BSPP Male 60° - NPTF Male Large Hexagon

DABPM152M

Straight Connector BSPP Male 60° Cone-Metric Male 60°Cone

DABPM152JM

Straight Connector BSPP Male 60° Cone - JIS Metric Male 60°Cone

DABPM107M

Straight Connector BSPP Male 60° - BSPT Male 60°

DABPM107M-LH

Straight Connector BSPP Male 60° Cone – BSPT Male 60° Large Hexagon

DABPM1305

Straight Connector BSPP Male 60° - SAE Male + O Ring

DABPM106Q

Straight Connector BSPP Male 60° – BSPP Male + O Ring + Retaining Ring

DABPM152Q

Straight Connector BSPP Male 60° – Metric Male + O Ring + Retaining Ring

DABPM1525

Straight Connector BSPP Male 60° - Metric Male + O Ring

DABPM105M-ED

Straight Connector BSPP Male 60°with ED Ring

DABPM107M-ED

Straight Connector BSPP Male 60° with ED Ring - BSPT Male 60°

DABPM1061

Straight Connector BSPP Male 60° Cone- BSPP Male with ED Seal

DABPM1521

Straight Connector BSPP Male 60° Cone-Metric Male 60°Cone

DABTM107M

Straight Connector BSPT Male 60° -BSPT Male 60°

DABTM128M

Straight Connector BSPT Male 60° - NPTF Male 60°

DABTM1305

Straight Connector BSPT Male 60° – SAE Male + O Ring

DABPM1000

Male Plug BSPP Male 60°

DABPM1000-ED

Male Plug BSPP Male 60° ED Seal

DABT21000-HHP

Male Plug with Hexagon Socket Head BSPT

DABPM105F

Straight Connector BSPP Male 60° – BSPP Fixed Female

DABPM105FR

Straight Bushing Connector BSPP Male 60° - BSPP Fixed Female

DABPM128F

Straight Connector BSPP Male 60° - NPTF Female

DABPM107F

Straight Connector BSPP Male 60° Cone-BSPT Female Cone

DABPM1081

Straight Connector BSPP Male 60° - BSPP Swivel Female 60°

DABPM1251

Straight Connector BSP Male 60° - JIC Swivel Female 74°

DABTM107F

Straight Connector BSPT Male 60°- BSPT Fixed Female

DABTM107FR

Straight Bushing Connector BSPT Male 60° - BSPT Fixed Female

DABTM105F

Straight Connector BSPT Male 60° - BSPP Fixed Female

DABTM105FR

Straight Bushing Connector BSPT Male 60° - BSPP Fixed Female

DABTM152F

Straight Adaptor BSPT Male 60° - Metric Fixed Female

DABTM152FR

Straight Bushing Connector BSPT Male 60° - Metric Fixed Female

DABTM128F

Straight Connector BSPT Male 60° - NPTF Female

DABPF152M

Straight Connector BSPP Fixed Female - Metric Male 60°

DABPF1305

Straight Adaptor BSPP Fixed Female – SAE Male O Ring

DABP11065

Straight Connector BSPP Swivel Female 60° - BSPP Male + O Ring

DABP1106Q

Straight Connector BSPP Swivel Female 60° – BSPP Male + O Ring + Retaining Ring

DABP11305

Straight Connector BSP Swivel Female 60° - SAE Male O Rings Boss

DABP1152Q

Straight Connector BSPP Swivel Female 60° – Metric Male + O Ring +Retaining Ring

DABP11525

Straight Connector BSPP Swivel Female 60° - Metric Male + O Ring

DABP1107M

Straight Connector BSPP Swivel Female 60° - BSPT Male 60°

NUT BSPP

Female Cap BSPP

Female Cap BSPP

Straight Connector BSPP Female Fixed

DABPF128F

Straight Coupling BSPP Fixed Female - NPTF Fixed Female

DABPF1081

Straight Connector BSPP Fixed Female – BSPP Swivel Female 60°

DABP11081

Straight Connector BSPP Swivel Female 60° - BSPP Swivel Female 60°

DABP11251

Straight Connector BSPP Swivel Female 60° - JIC Swivel Female 74°

DABTF107F

Straight Connector BSPT Female Fixed

DABPM100S

Straight Adaptor BSPP Male 60° – Butt Welding

DABPM100B

Bonding (socket welding) Connector BSPP Male 60° – Metric / Imperial Tube

DABTM100B

Bonding (socket welding) Connector BSPT Male 60° - Metric / Imperial Tube

DABTM1000

Male Plug BSPT Male 60°

DABP1100B

Straight Welding Connector BSPP Swivel Female – Metric/Imperial Tube

DABPM105T

Straight Bulkhead Connector BSPP Male 60°- BSPP Male 60°

DABPM105T-ED

Straight Bulkhead Connector BSPP Male 60°ED Seal - BSPP 60°Male

DABPLN

BSPP Bulkhead Nut

DABPM405M

45° Elbow Connector BSPP Male 60° - BSPP 60° Male

DABPM407M

45° Elbow Connector BSPP Male 60° - BSPT Male 60°

DABPM428M

45° Elbow Connector BSPP Male 60° - NPTF Male 60°

DABTM407M

45° Elbow Connector BSPT Male 60° - BSPT Male 60°

DABPM406Q

45° Adjustable Elbow BSPP Male 60° - BSPP Male + O Ring + Retaining Ring

DABPM4065

45° Adjustable Elbow BSPP Male 60° - BSPP Male + O Ring

DABPM4305

45° Adjustable Elbow BSPP Male 60° - SAE Male + O Ring

DABPM452Q

45° Adjustable Elbow BSPP Male 60° - Metric Male + O Ring + Retaining Ring

DABPM4525

45° Adjustable Elbow BSPP Male 60°- Metric Male + O Ring

DABPM4081

45° Elbow Connector BSPP Male 60° - BSPP Swivel Female 60°

DABPM4251

45° Elbow Connector BSPP Male 60°Cone - JIC Swivel Female 74°

DABTM4081

45° Elbow Connector BSPT Male 60° - BSPP Swivel Female 60°

DABPF428M

45° Elbow Connector BSPP Fixed Female - NPTF Male 60°

DABPF407M

45° Elbow Connector BSPP Fixed Female - BSPT Male

DABP14305

45° Adjustable Elbow BSPP Swivel Female 60° - SAE Male O Ring

DABP1406Q

45° Adjustable Elbow BSPP Swivel Female 60° - BSPP Male + O Ring + Retaining Ring

DABP14525

45° Adjustable Elbow BSPP Swivel Female - Metric Male + O Ring

DABP1452Q

45° Adjustable Elbow BSPP Swivel Female 60° - Metric Male + O Ring + Retaining Ring

DABP14065

45° Adjustable Elbow BSPP Swivel Female 60° - BSPP Male + O Ring

DABPF405F

45° Elbow Connector BSPP Fixed Female - BSPP Fixed Female

DABP14081

45° Elbow Connector BSPP Swivel Female 60° - BSPP 60° Swivel Female 45°

DABTF407F

45° Elbow Connector BSPT Fixed Female - BSPT Fixed Female

DABPM9065

90° Adjustable Elbow BSPP Male 60° - BSPP Male + O Ring

DABPM928M

90° Elbow Connector BSPP Male 60° - NPTF Male 60°

DABPM907M

90° Elbow Connector BSPP Male 60° - BSPT Male 60°

DABPM905M

90° Elbow Connector BSPP Male 60° - BSPP 60°Male

DABPM905M-SQ

90° Elbow Connector Square BSPP Male 60° - BSPP 60° Male

DABPM906Q

90° Adjustable Elbow BSPP Male 60° - BSPP Male + O Ring + Retaining Ring

DABPM9305

90° Adjustable Elbow BSPP Male 60° - SAE Male O Ring

DABPM952Q

90° Adjustable Elbow BSPP Male 60° - Metric Male + O Ring + Retaining Ring

DABPM9525

90° Adjustable Elbow BSPP Male 60° - Metric Male + O Ring

DABPM930J

90° Adjustable Long Elbow BSPP Male 60° – SAE Male + O Ring

DABPM906Y

90° Adjustable Long Elbow BSPP Male 60° - BSPP Male + O Ring + Retaining Ring

DABPM906J

90° Adjustable Long Elbow BSPP Male 60° - BSPP Male + O Ring

DABPM952Y

90° Adjustable Long Elbow BSPP Male 60° - Metric Male + O Ring + Retaining Ring

DABPM952J

90° Adjustable Long Elbow BSPP Male 60° - Metric Male + O Ring

DABPM905T

90° Bulkhead Elbow BSPP Male 60° - BSPP 60° Male

DABTM907M

90° Elbow BSPT Male 60° - BSPT Male 60°

DABTM928M

90° Elbow BSPT Male 60° - NPTF Male 60°

DABTM9305

90° Adjustable Elbow BSPT Male 60° - SAE Male + O Ring

DABTM906Q

Adjustable 90° Elbow BSPT Male 60° - BSPP Male + O Ring + Retaining Ring

DABPM905F

90° Elbow Connector BSPP Male 60° - BSPP Fixed Female

DABPM9081

90° Elbow Connector BSPP Male 60° - BSPP Swivel Female 60°

DABPM9081-B

90° Swept Elbow BSPP Male 60° Cone - BSPP Swivel Female 60°

DABPM9081-SQ

90° Elbow Connector BSPP Male 60° Cone - BSPP Swivel Female 60°

DABTM905F

90° Elbow BSPT Male 60° - BSPP Fixed Female

DABTM9081

90° Elbow Connector BSPT Male 60° - BSPP Swivel Female 60°

DABPF907M

90° Elbow Connector BSPP Fixed Female - BSPT Male

DABPF906Q

90° Adjustable Elbow BSPP Fixed Female - BSPP Male + O Ring + Retaining Ring

DABP19065

90° Adjustable Elbow BSPP Swivel Female 60° - BSPP Male + O Ring

DABP1906Q

90° Adjustable Elbow BSPP Swivel Female 60° - BSPP Male + O Ring + Retaining Ring

DABP1952Q

90° Adjustable Elbow BSPP Swivel Female 60° - Metric Male + O Ring + Retaining Ring

DABP19525

90° Adjustable Elbow BSPP Swivel Female 60° - Metric Male + O Ring

DABP19305

90° Adjustable Elbow BSPP Swivel Female 60° - SAE Male + O Ring + Retaining Ring

DABPF905F

90° Elbow Connector BSPP Fixed Female - BSPP Fixed Female

DABP19081

90° Elbow BSPP Swivel Female 60° - BSPP Swivel Female 60°

DABP19081-B

90° Swept Elbow BSPP Swivel Female 60° - BSPP Swivel Female 60°

DABTF907F

90° Elbow BSPT Fixed Female - BSPT Fixed Female

DABTM907F

90° Elbow BSPT Male 60° - BSPT Fixed Female

DABPMT05M

Branch Tee Connector BSPP Male 60° - BSPP Male 60°

DABPMT05M-SQ

Branch Tee Connector Square BSPP Male 60° - BSPP Male 60°

DABPMT081

Branch Tee Connector BSPP Male 60° - BSPP Swivel Female 60°

DABPMT081-SQ

Branch Tee Connector Square BSPP Male 60° - BSPP Swivel Female 60°

DABPMT07M

Branch Tee Connector BSPP Male 60° - BSPT Male 60°

DABPMT28M

Branch Tee Connector BSPP Male 60° - NPTF Male 60°

DABPML07M

Run Tee Connector BSPP Male 60° - BSPT Male 60°

DABPML28M

Run Tee Connector BSPP Male 60° - NPTF Male 60°

DABPFT07M

Branch Tee Connector BSPP Fixed Female - BSPT Male 60°

DABPFT28M

Branch Tee Connector BSPP Fixed Female - NPTF Male 60°

DABPFL07M

Run Tee Connector BSPP Fixed Female - BSPT Male 60°

DABPFL28M

Run Tee Connector BSPP Fixed Female - NPTF Male 60°

DABPFT05F

Branch Tee Connector BSPP Fixed Female – BSPP Fixed Female

DABP1T081

Branch Tee BSPP Swivel Female 60° - BSPP Swivel Female 60°

DABPMT305

Branch Adjustable Tee BSPP Male 60° - SAE Male + O Ring + Retaining Ring

DABPMT06Q

Branch Adjustable Tee BSPP Male 60° - BSPP Male + O Ring + Retaining Ring

DABPMT065

Branch Adjustable Tee BSPP Male 60° - BSPP Male + O Ring

DABPMT52Q

Branch Adjustable Tee BSPP Male 60° - Metric Male + O Ring + Retaining Ring

DABPMT525

Branch Adjustable Tee BSPP Male 60° - Metric Male + O Ring

DABPMT05T

Branch Bulkhead Tee Connector BSPP Male 60° - BSPP Male 60°

DABPML181

Run Tee Connector BSPP Male 60° - BSPP Swivel Female 60° - BSPP Swivel Female 60°

DABPML081

Run Tee Connector BSPP Male 60° - BSPP Swivel Female 60°

DABPML081-SQ

Run Tee Connector Square BSPP Male 60° - BSPP Swivel Female 60°

DABPFT06Q

Branch Adjustable Tee Connector BSPP Fixed Female - BSPP Male + ORB

DABPML305

Run Adjustable Tee BSPP Male 60° - SAE Male + O Ring + Retaining Ring

DABPML06Q

Run Adjustable Tee BSPP Male 60° - BSPP Male + O Ring + Retaining Ring

DABTML06Q

Run Adjustable Tee BSPT Male 60° - BSPP Male + O Ring + Retaining Ring

DABPML065

Run Adjustable Tee BSPP Male 60°- BSPP Male + O Ring

DABPML52Q

Run Adjustable Tee BSPP Male 60° - Metric Male + O Ring + Retaining Ring

DABPML525

Run Adjustable Tee BSPP Male 60° - Metric Male + O Ring

DABPMT181

Branch Tee Connector BSPP Swivel Female 60° - BSPP Swivel Female 60° - BSPP Male 60°

DABPML05T

Run Bulkhead Tee BSPP Male 60° - BSPP Male 60°

DABTMT07M

Branch Tee Connector BSPT Male 60° - BSPT Male 60°

DABTFT07F

Tee Connector BSPT Fixed Female - BSPT Fixed Female

DABTML081

Run Tee Connector BSPT Male 60° - BSPP Swivel Female 60°

DABTFL07M

Run Tee Adaptor BSPT Fixed Female - BSPT Male 60

DABPMX05M

Cross Connector BSPP Male 60° - BSPP Male 60°

DABPFX05F

Cross Connector BSPP Fixed Female

DABP1X081

Cross Connector BSPP Swivel Female 60° Cone

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	S1
-	-	BSPP	UNF	mm	mm	mm	mm	mm	mm
-01	DABPM9251-0404	1/4"-19	7/16"-20	4.70	4.40	26.00	22.00	14.00	14.00
-01	DABPM9251-0406	1/4"-19	9/16"-18	4.70	7.54	26.00	22.23	14.00	19.00
-06	DABPM9251-0606	3/8"-19	9/16"-18	7.90	7.54	28.00	22.23	19.00	19.00
-06	DABPM9251-0608	3/8"-19	3/4"-16	7.90	9.93	29.00	24.33	19.00	22.23
-08	DABPM9251-0806	1/2"-14	9/16"-18	11.10	7.54	34.00	25.15	22.00	19.00
-08	DABPM9251-0808	1/2"-14	3/4"-16	11.10	9.93	34.00	26.16	22.00	22.23
-08	DABPM9251-0810	1/2"-14	7/8"-14	11.10	12.29	34.00	28.45	22.00	27.00
-12	DABPM9251-1212	3/4"-14	1-1/16''-12	16.70	15.47	40.00	30.20	27.00	31.75

DABPM9251 90° Elbow Connector BSPP Male 60°Cone - JIC Swivel Female 74°
