* Filter the F1 Thread through selecting the -XX options

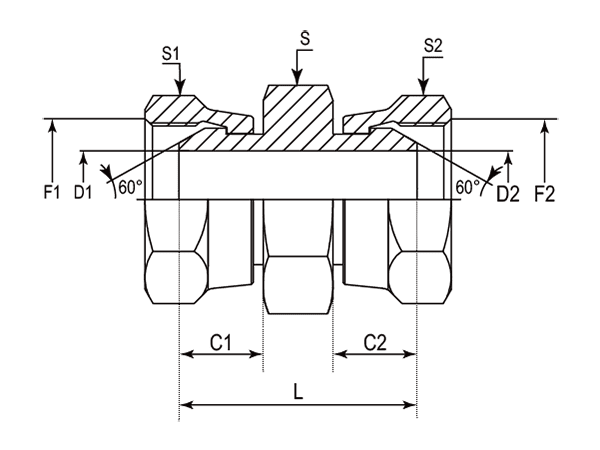

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | BSPP | mm | mm | mm | mm | mm | mm | mm | mm |
| -01 | DABP11081-0404 | 1/4"-19 | 1/4"-19 | 11.50 | 11.50 | 4.70 | 4.70 | 29.00 | 14.00 | 19.00 | 19.00 |
| -06 | DABP11081-0604 | 3/8"-19 | 1/4"-19 | 12.50 | 11.50 | 7.90 | 4.70 | 31.50 | 17.00 | 22.00 | 19.00 |
| -06 | DABP11081-0606 | 3/8"-19 | 3/8"-19 | 12.50 | 12.50 | 7.10 | 7.10 | 32.50 | 17.00 | 22.00 | 22.00 |
| -08 | DABP11081-0804 | 1/2"-14 | 1/4"-19 | 15.00 | 11.50 | 11.10 | 4.70 | 33.50 | 22.00 | 27.00 | 19.00 |
| -08 | DABP11081-0806 | 1/2"-14 | 3/8"-19 | 15.00 | 12.50 | 11.10 | 7.90 | 34.50 | 22.00 | 27.00 | 22.00 |
| -08 | DABP11081-0808 | 1/2"-14 | 1/2"-14 | 15.00 | 15.00 | 10.00 | 10.00 | 38.00 | 22.00 | 27.00 | 27.00 |
| -10 | DABP11081-1008 | 5/8"-14 | 1/2"-14 | 15.50 | 15.00 | 12.30 | 11.10 | 39.00 | 24.00 | 30.00 | 27.00 |
| -10 | DABP11081-1010 | 5/8"-14 | 5/8"-14 | 15.50 | 15.50 | 12.30 | 12.30 | 39.00 | 24.00 | 30.00 | 30.00 |
| -12 | DABP11081-1208 | 3/4"-14 | 1/2"-14 | 17.50 | 15.00 | 16.70 | 11.10 | 41.00 | 27.00 | 32.00 | 27.00 |
| -12 | DABP11081-1210 | 3/4"-14 | 5/8"-14 | 17.50 | 15.50 | 15.50 | 14.00 | 41.50 | 27.00 | 32.00 | 30.00 |
| -12 | DABP11081-1212 | 3/4"-14 | 3/4"-14 | 17.50 | 17.50 | 15.50 | 15.50 | 43.50 | 27.00 | 32.00 | 32.00 |
| -16 | DABP11081-1608 | 1"-11 | 1/2"-14 | 19.50 | 15.00 | 22.20 | 11.10 | 45.50 | 36.00 | 41.00 | 27.00 |
| -16 | DABP11081-1612 | 1"-11 | 3/4"14 | 19.50 | 17.50 | 22.20 | 16.70 | 49.00 | 36.00 | 41.00 | 32.00 |
| -16 | DABP11081-1616 | 1"-11 | 1"-11 | 19.50 | 19.50 | 22.20 | 22.20 | 50.00 | 36.00 | 41.00 | 41.00 |
| -20 | DABP11081-2012 | 1-1/4"-11 | 3/4"-14 | 21.00 | 17.50 | 26.00 | 16.70 | 51.50 | 41.00 | 50.00 | 32.00 |
| -20 | DABP11081-2020 | 1-1/4"-11 | 1-1/4"-11 | 21.00 | 21.00 | 26.00 | 26.00 | 55.00 | 41.00 | 50.00 | 50.00 |
| -24 | DABP11081-2420 | 1-1/2"-11 | 1-1/4"-11 | 22.00 | 21.00 | 33.30 | 28.60 | 57.00 | 50.00 | 55.00 | 50.00 |
| -24 | DABP11081-2424 | 1-1/2"-11 | 1-1/2"-11 | 22.00 | 22.00 | 33.30 | 33.30 | 58.00 | 50.00 | 55.00 | 55.00 |
| -32 | DABP11081-3232 | 2"-11 | 2"-11 | 23.00 | 23.00 | 46.00 | 46.00 | 61.50 | 60.00 | 70.00 | 70.00 |
