DABPFX05F Adaptor – DME&JDE Group

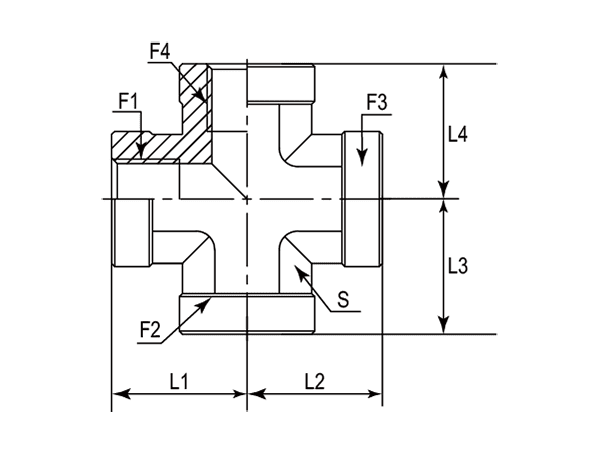

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	F4 (Thread)	L1	L2	L3	L4	S
-01	DABPFX05F-0202	1/8"-28	1/8"-28	1/8"-28	1/8"-28	20.00	20.00	20.00	20.00	14
-04	DABPFX05F-0404	1/4"-19	1/4"-19	1/4"-19	1/4"-19	22.00	22.00	22.00	22.00	19
-06	DABPFX05F-0606	3/8"-19	3/8"-19	3/8"-19	3/8"-19	26.00	26.00	26.00	26.00	22
-08	DABPFX05F-0808	1/2"-14	1/2"-14	1/2"-14	1/2"-14	32.00	32.00	32.00	32.00	27
-12	DABPFX05F-1212	3/4"-14	3/4"-14	3/4"-14	3/4"-14	36.00	36.00	36.00	36.00	33
-16	DABPFX05F-1616	1"-11	1"-11	1"-11	1"-11	41.50	41.50	41.50	41.50	41
