* Filter the F1 Thread through selecting the -XX options

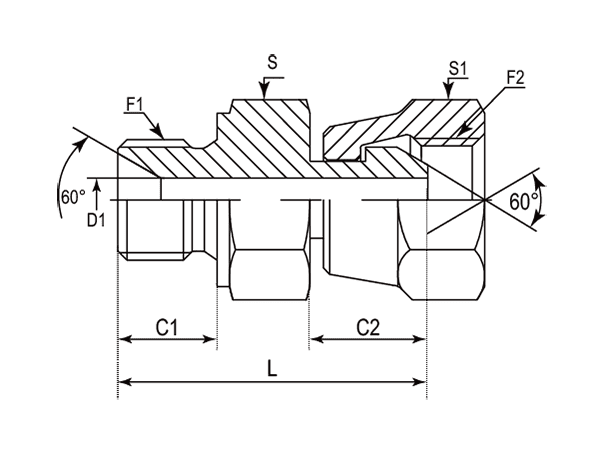

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S | S1 |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | BSPP | mm | mm | mm | mm | mm | mm | mm |
| -01 | DABPM1081-0202 | 1/8"-28 | 1/8"-28 | 8.00 | 9.50 | 3.50 | 3.50 | 23.00 | 14.00 | 14.00 |
| -01 | DABPM1081-0204 | 1/8"-28 | 1/4"-19 | 9.00 | 11.50 | 3.50 | 4.70 | 28.00 | 14.00 | 19.00 |
| -04 | DABPM1081-0402 | 1/4"-19 | 1/8"-28 | 11.00 | 9.50 | 4.70 | 3.50 | 28.50 | 19.00 | 14.00 |
| -04 | DABPM1081-0404 | 1/4"-19 | 1/4"-19 | 11.00 | 11.50 | 4.70 | 4.70 | 29.50 | 19.00 | 19.00 |
| -04 | DABPM1081-0406 | 1/4"-19 | 3/8"-19 | 11.00 | 12.50 | 4.70 | 7.10 | 33.00 | 19.00 | 22.00 |
| -04 | DABPM1081-0408 | 1/4"-19 | 1/2"-14 | 11.00 | 15.00 | 4.70 | 11.10 | 34.50 | 22.00 | 27.00 |
| -04 | DABPM1081-0412 | 1/4"-19 | 3/4"-14 | 11.00 | 17.50 | 4.70 | 16.70 | 40.00 | 27.00 | 32.00 |
| -06 | DABPM1081-0604 | 3/8"-19 | 1/4"-19 | 12.00 | 11.50 | 7.90 | 4.50 | 33.00 | 22.00 | 19.00 |
| -06 | DABPM1081-0606 | 3/8"-19 | 3/8"-19 | 12.00 | 12.50 | 7.0 | 7.00 | 32.50 | 22.00 | 22.00 |
| -06 | DABPM1081-0608 | 3/8"-19 | 1/2"-14 | 12.00 | 15.00 | 7.90 | 11.10 | 36.00 | 22.00 | 27.00 |
| -06 | DABPM1081-0612 | 3/8"-19 | 3/4"-14 | 12.00 | 17.50 | 7.90 | 16.70 | 38.50 | 27.00 | 32.00 |
| -08 | DABPM1081-0804 | 1/2"-14 | 1/4"-19 | 14.00 | 11.50 | 11.10 | 4.70 | 36.50 | 27.00 | 19.00 |
| -08 | DABPM1081-0806 | 1/2"-14 | 3/8"-19 | 14.00 | 12.50 | 11.10 | 7.10 | 37.50 | 27.00 | 22.00 |
| -08 | DABPM1081-0808 | 1/2"-14 | 1/2"-14 | 14.00 | 15.00 | 11.10 | 11.10 | 39.00 | 27.00 | 27.00 |
| -08 | DABPM1081-0810 | 1/2"-14 | 5/8"-14 | 14.00 | 15.50 | 11.10 | 14.00 | 40.00 | 27.00 | 30.00 |
| -08 | DABPM1081-0812 | 1/2"-14 | 3/4"-14 | 14.00 | 17.50 | 11.10 | 16.70 | 43.00 | 27.00 | 32.00 |
| -08 | DABPM1081-0816 | 1/2"-14 | 1"-11 | 14.00 | 19.50 | 11.10 | 20.40 | 43.50 | 36.00 | 41.00 |
| -10 | DABPM1081-1008 | 5/8"-14 | 1/2"-14 | 16.00 | 15.00 | 14.00 | 9.70 | 38.50 | 30.00 | 27.00 |
| -10 | DABPM1081-1010 | 5/8"-14 | 5/8"-14 | 16.00 | 15.50 | 14.00 | 14.00 | 42.00 | 30.00 | 30.00 |
| -10 | DABPM1081-1012 | 5/8"-14 | 3/4"-14 | 16.00 | 17.50 | 14.00 | 16.00 | 41.00 | 30.00 | 32.00 |
| -12 | DABPM1081-1206 | 3/4"-14 | 3/8"-19 | 16.00 | 12.50 | 16.70 | 7.90 | 39.00 | 32.00 | 22.00 |
| -12 | DABPM1081-1208 | 3/4"-14 | 1/2"-14 | 16.00 | 15.00 | 16.70 | 11.10 | 42.50 | 32.00 | 27.00 |
| -12 | DABPM1081-1210 | 3/4"-14 | 5/8"-14 | 16.00 | 15.50 | 16.70 | 12.00 | 42.00 | 32.00 | 30.00 |
| -12 | DABPM1081-1212 | 3/4"-14 | 3/4"-14 | 16.00 | 17.50 | 16.70 | 16.70 | 45.00 | 32.00 | 32.00 |
| -12 | DABPM1081-1216 | 3/4"-14 | 1"-11 | 16.00 | 19.50 | 16.70 | 22.20 | 47.50 | 36.00 | 41.00 |
| -12 | DABPM1081-1220 | 3/4"-14 | 1 1/4"-11 | 16.00 | 21.00 | 16.70 | 28.60 | 51.50 | 41.00 | 50.00 |
| -16 | DABPM1081-1608 | 1"-11 | 1/2"-14 | 19.00 | 15.00 | 22.20 | 11.10 | 47.50 | 41.00 | 27.00 |
| -16 | DABPM1081-1612 | 1"-11 | 3/4"-14 | 19.00 | 17.50 | 22.20 | 15.50 | 50.00 | 41.00 | 32.00 |
| -16 | DABPM1081-1616 | 1"-11 | 1"-11 | 19.00 | 19.50 | 22.20 | 22.20 | 53.50 | 41.00 | 41.00 |
| -16 | DABPM1081-1620 | 1"-11 | 1-1/4''-11 | 19.00 | 21.00 | 22.20 | 26.00 | 53.50 | 41.00 | 50.00 |
| -20 | DABPM1081-2012 | 1-1/4"-11 | 3/4"-14 | 20.00 | 17.50 | 28.60 | 16.70 | 51.00 | 50.00 | 32.00 |
| -20 | DABPM1081-2016 | 1-1/4"-11 | 1"-11 | 20.00 | 19.50 | 28.60 | 22.20 | 53.00 | 50.00 | 41.00 |
| -20 | DABPM1081-2020 | 1-1/4"-11 | 1-1/4"-11 | 20.00 | 21.00 | 28.60 | 28.60 | 54.40 | 50.00 | 50.00 |
| -20 | DABPM1081-2024 | 1-1/4"-11 | 1-1/2"-11 | 20.00 | 22.00 | 28.60 | 33.30 | 55.50 | 50.00 | 55.00 |
| -24 | DABPM1081-2416 | 1-1/2"-11 | 1"-11 | 22.00 | 19.50 | 33.30 | 22.20 | 55.00 | 55.00 | 41.00 |
| -24 | DABPM1081-2420 | 1-1/2"-11 | 1-1/4"-11 | 22.00 | 21.00 | 33.30 | 26.00 | 57.50 | 55.00 | 50.00 |
| -24 | DABPM1081-2424 | 1-1/2''-11 | 1-1/2''-11 | 22.00 | 22.00 | 33.30 | 33.30 | 58.50 | 55.00 | 55.00 |
| -24 | DABPM1081-2432 | 1-1/2"-11 | 2"-11 | 22.00 | 23.00 | 33.30 | 44.00 | 61.50 | 60.00 | 70.00 |
| -32 | DABPM1081-3232 | 2"-11 | 2"-11 | 25.00 | 23.00 | 46.00 | 46.00 | 69.00 | 70.00 | 70.00 |
