DABPF907M Adaptor – DME&JDE Group

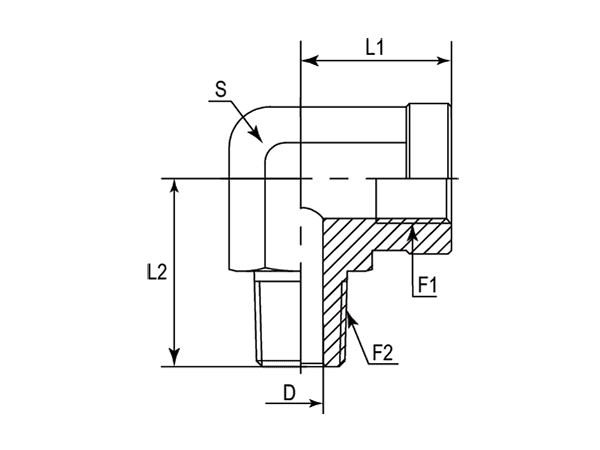

-	Part Number	F1 (Thread)	F2 (Thread)	D	L1	L2	S
-01	DABPF907M-0202	1/8"-28	1/8"-28	4.5	17	20	14
-04	DABPF907M-0404	1/4"-19	1/4"-19	6.5	22	27.5	19
-06	DABPF907M-0606	3/8"-19	3/8"-19	10	26	31	22
-08	DABPF907M-0808	1/2"-14	1/2"-14	13	32	37.5	27
-12	DABPF907M-1212	3/4"-14	3/4"-14	18	36	43	33
-16	DABPF907M-1616	1"-11	1"-11	22.2	42	50	41
-20	DABPF907M-2020	1-1/4''-11	1-1/4''-11	28.6	43	60	48
-24	DABPF907M-2424	1-1/2''-11	1-1/2''-11	33.3	53	67	65
-32	DABPF907M-3232	2"-11	2"-11	46	60	76	72
