DABTM907F Adaptor – DME&JDE Group

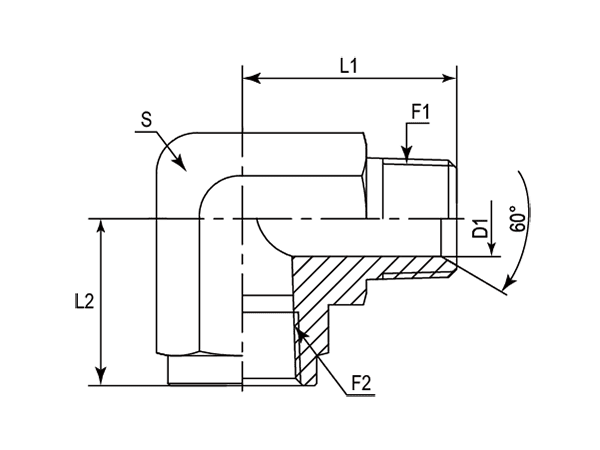

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S	Cross Number
-01	DABTM907F-0202	1/8"-28	1/8"-28	19.80	16.80	4.50	14.00	CLJ-02-02
-04	DABTM907F-0404	1/4"-19	1/4"-19	27.70	22.40	6.00	19.00	CLJ-04-04
-06	DABTM907F-0606	3/8"-19	3/8"-19	31.00	25.90	9.00	22.00	CLJ-06-06
-08	DABTM907F-0808	1/2"-14	1/2"-14	37.30	31.20	12.00	27.00	CLJ-08-08
-12	DABTM907F-1212	3/4"-14	3/4"-14	40.40	34.50	16.70	33.00	CLJ-12-12
-16	DABTM907F-1616	1"-11	1"-11	50.00	41.20	22.20	41.00	CLJ-16-16
-20	DABTM907F-2020	1 1/4"-11	1 1/4"-11	61.00	43.20	28.60	48.00	CLJ-20-20
-24	DABTM907F-2424	1 1/2"-11	1 1/2"-11	67.10	52.80	33.30	65.00	CLJ-24-24
-32	DABTM907F-3232	2"-11	2"-11	75.00	62.00	46.00	71.00	CLJ-32-32
71.00	CLP-32-32
