DABP1106Q Adaptor – DME&JDE Group

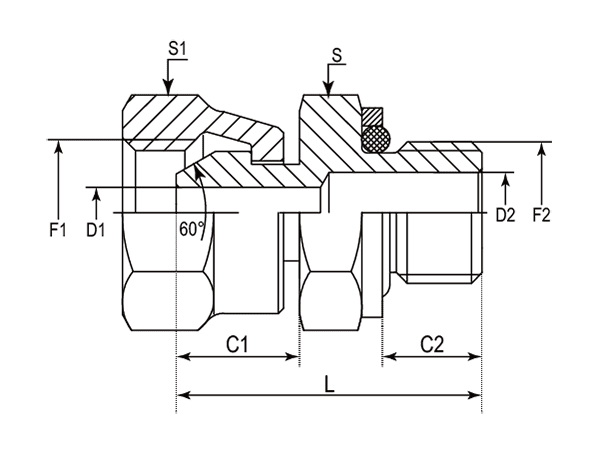

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S	S1
-01	DABP1106Q-0202	1/8"-28	1/8"-28	9.50	7.60	3.50	4.40	24.50	14.00	14.00
-01	DABP1106Q-0204	1/8"-29	1/4"-19	9.50	11.20	3.50	7.50	25.00	19.00	14.00
-04	DABP1106Q-0404	1/4"-19	1/4"-19	11.50	11.20	4.50	7.50	28.50	19.00	19.00
-04	DABP1106Q-0406	1/4"-19	3/8"-19	11.50	11.20	4.50	9.90	30.50	22.00	19.00
-06	DABP1106Q-0604	3/8"-19	1/4"-19	12.50	11.20	7.10	7.10	28.50	19.00	22.00
-06	DABP1106Q-0606	3/8"-19	3/8"-19	12.50	11.20	7.10	9.90	32.00	22.00	22.00
-06	DABP1106Q-0608	3/8"-19	1/2"-14	12.50	14.50	7.10	12.30	36.50	27.00	22.00
-08	DABP1106Q-0806	1/2"-14	3/8"-19	15.00	11.20	9.70	9.70	34.00	22.00	27.00
-08	DABP1106Q-0808	1/2"-14	1/2"-14	15.00	14.50	9.70	12.30	38.00	27.00	27.00
-08	DABP1106Q-0812	1/2"-14	3/4"-14	15.00	14.50	9.70	15.50	39.50	32.00	27.00
-10	DABP1106Q-1008	5/8"-14	1/2"-14	15.50	14.50	12.00	12.00	38.50	27.00	30.00
-12	DABP1106Q-1208	3/4"-14	1/2"-14	17.50	14.50	15.50	12.30	39.00	27.00	32.00
-12	DABP1106Q-1212	3/4"-14	3/4"-14	17.50	14.50	15.50	15.50	41.50	32.00	32.00
-12	DABP1106Q-1216	3/4"-14	1"-11	17.50	18.60	15.50	21.50	46.00	41.00	32.00
-16	DABP1106Q-1612	1"-11	3/4"-14	19.50	14.50	20.40	15.50	42.00	32.00	41.00
-16	DABP1106Q-1616	1"-11	1"-11	19.50	18.60	20.40	21.50	48.00	41.00	41.00
-16	DABP1106Q-1620	1"-11	1-1/4"-11	19.50	18.60	20.40	27.50	51.50	50.00	41.00
-20	DABP1106Q-2020	1-1/4"-11	1-1/4"-11	21.00	18.60	26.00	27.50	53.50	50.00	50.00
-24	DABP1106Q-2424	1-1/2"-11	1-1/2"-11	22.00	18.60	30.80	33.00	55.50	55.00	55.00
