DABP31000-C Adaptor – DME&JDE Group

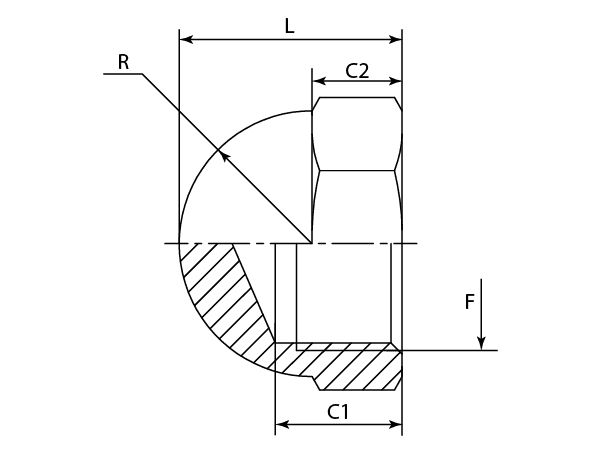

-	PART NUMBER	F (Thread)	L	R	C1	C2	S
-01	DABP31000-400-C	1/4"-19	19.00	9.00	11.00	10.00	19
-06	DABP31000-600-C	3/8"-19	22.00	11.00	13.00	11.00	22
-08	DABP31000-800-C	1/2"-14	26.00	13.00	15.00	12.00	27
-12	DABP31000-1200-C	3/4"-14	31.00	16.00	17.00	13.00	32
-16	DABP31000-1600-C	1"-11	36.00	20.00	19.00	16.00	41
