* Filter the F1 Thread through selecting the -XX options

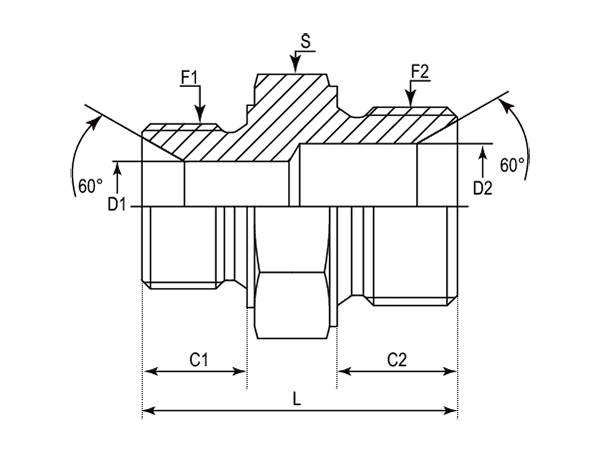

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | Metric | mm | mm | mm | mm | mm | mm |
| -01 | DABPM152M-0210 | 1/8"-28 | M10X1 | 9.00 | 8.00 | 3.50 | 3.50 | 26.00 | 14.00 |
| -01 | DABPM152M-0212 | 1/8"-28 | M12X1.5 | 9.00 | 12.00 | 3.50 | 3.50 | 30.50 | 17.00 |
| -01 | DABPM152M-0214 | 1/8"-28 | M14X1.5 | 9.00 | 12.00 | 3.50 | 6.00 | 31.00 | 19.00 |
| -04 | DABPM152M-0410 | 1/4"-19 | M10X1 | 11.00 | 8.00 | 3.50 | 3.50 | 28.50 | 19.00 |
| -04 | DABPM152M-0412 | 1/4"-19 | M12X1.5 | 11.00 | 12.00 | 4.00 | 4.00 | 33.00 | 19.00 |
| -04 | DABPM152M-0414 | 1/4"-19 | M14X1.5 | 11.00 | 12.00 | 4.70 | 6.00 | 33.00 | 19.00 |
| -04 | DABPM152M-0416 | 1/4"-19 | M16X1.5 | 11.00 | 12.00 | 4.70 | 8.00 | 33.50 | 22.00 |
| -04 | DABPM152M-0418 | 1/4"-19 | M18X1.5 | 11.00 | 12.00 | 4.70 | 10.00 | 35.00 | 24.00 |
| -04 | DABPM152M-0420 | 1/4"-19 | M20X1.5 | 11.00 | 14.00 | 4.70 | 12.00 | 37.50 | 27.00 |
| -04 | DABPM152M-0422 | 1/4"-19 | M22X1.5 | 11.00 | 14.00 | 4.70 | 14.10 | 38.00 | 27.00 |
| -06 | DABPM152M-0612 | 3/8"-19 | M12X1.5 | 12.00 | 11.00 | 7.90 | 4.00 | 34.50 | 22.00 |
| -06 | DABPM152M-0614 | 3/8"-19 | M14X1.5 | 12.00 | 12.00 | 7.90 | 6.00 | 34.50 | 22.00 |
| -06 | DABPM152M-0616 | 3/8"-19 | M16X1.5 | 12.00 | 12.00 | 7.90 | 7.90 | 34.50 | 22.00 |
| -06 | DABPM152M-0618 | 3/8"-19 | M18X1.5 | 12.00 | 12.00 | 7.90 | 10.00 | 36.00 | 24.00 |
| -06 | DABPM152M-0620 | 3/8"-19 | M20X1.5 | 12.00 | 14.00 | 7.90 | 12.00 | 38.50 | 27.00 |
| -06 | DABPM152M-0622 | 3/8"-19 | M22X1.5 | 12.00 | 14.00 | 7.90 | 14.10 | 38.50 | 27.00 |
| -08 | DABPM152M-0812 | 1/2"-14 | M12X1.5 | 14.00 | 11.00 | 11.10 | 4.00 | 37.00 | 27.00 |
| -08 | DABPM152M-0814 | 1/2"-14 | M14X1.5 | 14.00 | 12.00 | 11.10 | 6.00 | 38.00 | 27.00 |
| -08 | DABPM152M-0816 | 1/2"-14 | M16X1.5 | 14.00 | 12.00 | 11.10 | 8.00 | 38.00 | 27.00 |
| -08 | DABPM152M-0818 | 1/2"-14 | M18X1.5 | 14.00 | 12.00 | 11.10 | 10.00 | 38.50 | 27.00 |
| -08 | DABPM152M-0820 | 1/2"-14 | M20X1.5 | 14.00 | 14.00 | 11.10 | 12.00 | 40.50 | 27.00 |
| -08 | DABPM152M-0822 | 1/2"-14 | M22X1.5 | 14.00 | 14.00 | 11.10 | 14.10 | 41.00 | 27.00 |
| -08 | DABPM152M-0824 | 1/2"-14 | M24X1.5 | 14.00 | 14.00 | 11.10 | 15.50 | 41.00 | 30.00 |
| -08 | DABPM152M-0826 | 1/2"-14 | M26X1.5 | 14.00 | 16.00 | 11.10 | 15.00 | 45.00 | 32.00 |
| -10 | DABPM152M-1022 | 5/8"-14 | M22X1.5 | 16.00 | 14.00 | 14.00 | 14.00 | 43.00 | 30.00 |
| -12 | DABPM152M-1216 | 3/4"-14 | M16X1.5 | 16.00 | 12.00 | 16.70 | 8.00 | 43.00 | 32.00 |
| -12 | DABPM152M-1218 | 3/4"-14 | M18X1.5 | 16.00 | 12.00 | 16.70 | 10.00 | 43.00 | 32.00 |
| -12 | DABPM152M-1220 | 3/4"-14 | M20X1.5 | 16.00 | 14.00 | 16.70 | 12.00 | 45.00 | 32.00 |
| -12 | DABPM152M-1222 | 3/4"-14 | M22X1.5 | 16.00 | 14.00 | 16.70 | 14.10 | 42.00 | 32.00 |
| -12 | DABPM152M-1224 | 3/4"-14 | M24X1.5 | 16.00 | 14.00 | 15.50 | 15.50 | 45.00 | 32.00 |
| -12 | DABPM152M-1230 | 3/4"-14 | M30X1.5 | 16.00 | 18.00 | 16.70 | 21.50 | 48.50 | 36.00 |
| -16 | DABPM152M-1618 | 1"-11 | M18X1.5 | 19.00 | 12.00 | 22.20 | 10.00 | 47.00 | 41.00 |
| -16 | DABPM152M-1622 | 1"-11 | M22X1.5 | 19.00 | 14.00 | 22.20 | 14.10 | 49.00 | 41.00 |
| -16 | DABPM152M-1626 | 1"-11 | M26X1.5 | 19.00 | 16.00 | 22.20 | 15.00 | 49.00 | 41.00 |
| -16 | DABPM152M-1628 | 1"-11 | M28X1.5 | 19.00 | 16.00 | 22.20 | 16.00 | 50.50 | 41.00 |
| -16 | DABPM152M-1630 | 1"-11 | M30X1.5 | 19.00 | 18.00 | 21.50 | 21.50 | 51.50 | 41.00 |
| -16 | DABPM152M-1636 | 1"-11 | M36X1.5 | 19.00 | 18.00 | 22.20 | 25.00 | 51.50 | 41.00 |
| -16 | DABPM152M-1638 | 1"-11 | M38X1.5 | 19.00 | 18.00 | 22.20 | 25.00 | 54.00 | 46.00 |
| -20 | DABPM152M-2030 | 1-1/4''-11 | M30X1.5 | 20.00 | 18.00 | 28.60 | 21.50 | 55.00 | 50.00 |
| -20 | DABPM152M-2038 | 1-1/4''-11 | M38X1.5 | 20.00 | 18.00 | 25.00 | 25.00 | 55.00 | 50.00 |
| -24 | DABPM152M-2438 | 1-1/2''-11 | M38X1.5 | 22.00 | 18.00 | 33.30 | 25.00 | 59.00 | 55.00 |
| -24 | DABPM152M-2445 | 1-1/2''-11 | M45X1.5 | 22.00 | 20.00 | 32.00 | 32.00 | 60.00 | 55.00 |
| -32 | DABPM152M-3245 | 2"-11 | M45X1.5 | 25.00 | 20.00 | 46.00 | 32.00 | 66.00 | 70.00 |
| -32 | DABPM152M-3252 | 2"-11 | M52X1.5 | 25.00 | 20.00 | 46.00 | 38.00 | 66.00 | 70.00 |
