* Filter the F1 Thread through selecting the -XX options

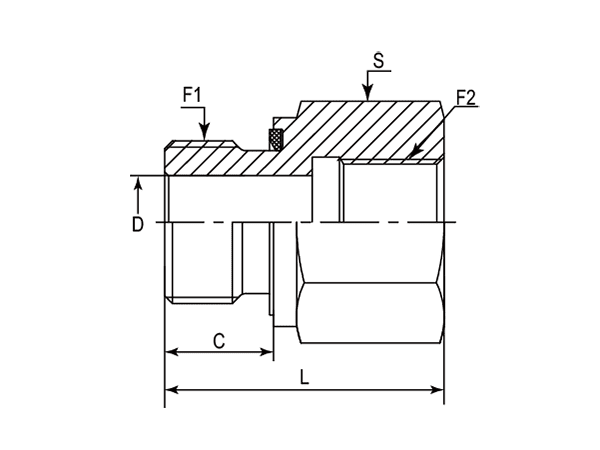

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D | L | S |
|---|---|---|---|---|---|---|---|
| - | - | Metric | BSPP | mm | mm | mm | mm |
| -01 | MFAE-01ED-01G | 1/8"-28 | 1/8"-28 | 8.00 | 4.00 | 23.50 | 14.00 |
| -01 | MFAE-01ED-02G | 1/8"-28 | 1/4"-19 | 8.00 | 4.00 | 31.00 | 19.00 |
| -01 | MFAE-01ED-03G | 1/8"-28 | 3/8"-19 | 8.00 | 4.00 | 32.00 | 24.00 |
| -02 | MFAE-02ED-01G | 1/4"-19 | 1/8"-28 | 12.00 | 5.00 | 28.00 | 19.00 |
| -02 | MFAE-02ED-02G | 1/4"-19 | 1/4"-19 | 12.00 | 5.00 | 35.50 | 19.00 |
| -02 | MFAE-02ED-03G | 1/4"-19 | 3/8"-19 | 12.00 | 6.00 | 36.00 | 24.00 |
| -02 | MFAE-02ED-04G | 1/4"-19 | 1/2"-14 | 12.00 | 5.00 | 40.00 | 27.00 |
| -02 | MFAE-02ED-06G | 1/4"-19 | 3/4"-14 | 12.00 | 5.00 | 43.00 | 36.00 |
| -03 | MFAE-03ED-02G | 3/8"-19 | 1/4"-19 | 12.00 | 8.00 | 36.00 | 22.00 |
| -03 | MFAE-03ED-04G | 3/8"-19 | 1/2"-14 | 12.00 | 8.00 | 41.00 | 30.00 |
| -03 | MFAE-03ED-06G | 3/8"-19 | 3/4"-14 | 12.00 | 8.00 | 44.00 | 36.00 |
| -04 | MFAE-04ED-03G | 1/2"-14 | 3/8"-19 | 14.00 | 12.30 | 36.00 | 27.00 |
| -04 | MFAE-04ED-04G | 1/2"-14 | 1/2"-14 | 14.00 | 12.00 | 39.00 | 27.00 |
| -04 | MFAE-04ED-06G | 1/2"-14 | 3/4"-14 | 14.00 | 12.00 | 46.00 | 36.00 |
| -04 | MFAE-04ED-08G | 1/2"-14 | 1"-11 | 14.00 | 12.00 | 49.00 | 41.00 |
| -06 | MFAE-06ED-04G | 3/4"-14 | 1/2"-14 | 16.00 | 16.00 | 41.00 | 32.00 |
| -06 | MFAE-06ED-06G | 3/4"-14 | 3/4"-14 | 16.00 | 16.00 | 48.00 | 32.00 |
| -06 | MFAE-06ED-10G | 3/4"-14 | 1-1/4"-11 | 16.00 | 16.00 | 55.00 | 55.00 |
| -06 | MFAE-06ED-12G | 3/4"-14 | 1-1/2"-11 | 16.00 | 16.00 | 57.00 | 60.00 |
| -08 | MFAE-08ED-06G | 1"-11 | 3/4"-14 | 18.00 | 20.00 | 47.00 | 41.00 |
| -08 | MFAE-08ED-10G | 1"-11 | 1-1/4"-11 | 18.00 | 20.00 | 57.00 | 55.00 |
| -08 | MFAE-08ED-12G | 1"-11 | 1-1/2"-11 | 18.00 | 20.00 | 59.00 | 60.00 |
| -10 | MFAE-10ED-06G | 1-1/4"-11 | 3/4"-14 | 20.00 | 25.00 | 50.00 | 50.00 |
| -10 | MFAE-10ED-08G | 1-1/4"-11 | 1"-11 | 20.00 | 25.00 | 52.00 | 50.00 |
| -10 | MFAE-10ED-12G | 1-1/4"-11 | 1-1/2"-11 | 20.00 | 25.00 | 60.00 | 60.00 |
| -12 | MFAE-12ED-10G | 1-1/2"-11 | 1-1/4"-11 | 22.00 | 32.00 | 58.00 | 55.00 |
| -12 | MFAE-12ED-16G | 1-1/2"-11 | 2"-11 | 22.00 | 32.00 | 66.00 | 70.00 |
