Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DGE

DGE Swivel Connector (Metric Female) with 24°Cone and DKI

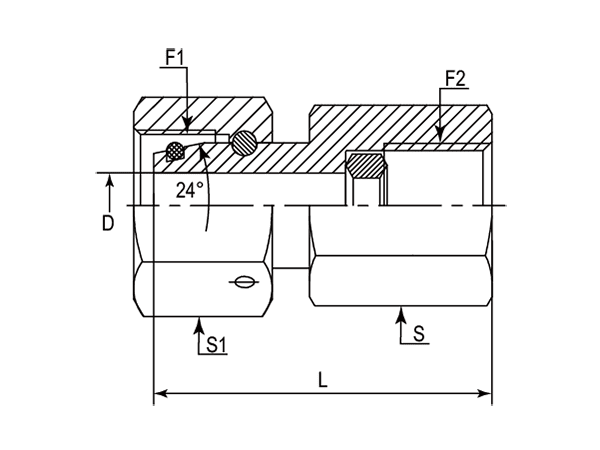

A model drawing of DGE hydraulic adaptor.

DME&JDE Code: DGE
Product Type: hydraulic adaptor
Standard: DIN 2353
Structure: Straight
Connection Type: Swivel Female × Swivel Female
Thread Types: Metric 24° Cone × BSPP

Technical Data of DGE

-06
-08
-10
-12

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S
-	-	Metric	BSPP	mm	mm	mm	mm
-01	DGE-06L-02G	M12X1.5	1/4"-19	3.00	35.00	19.00	14.00
-08	DGE-08L-02G	M14X1.5	1/4"-19	4.00	36.00	19.00	17.00
-08	DGE-08S-02G	M16X1.5	1/4"-19	4.00	36.00	19.00	19.00
-08	DGE-08S-04G	M16X1.5	1/2"-14	4.00	42.50	27.00	19.00
-10	DGE-10L-02G	M16X1.5	1/4"-19	6.00	35.00	19.00	19.00
-10	DGE-10S-04G	M18X1.5	1/2"-14	6.00	42.50	27.00	22.00
-12	DGE-12L-02G	M18X1.5	1/4"-19	5.50	36.50	19.00	22.00
-12	DGE-12S-04G	M20X1.5	1/2"-14	8.00	45.00	27.00	24.00
