Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DN

DN Tube Nut

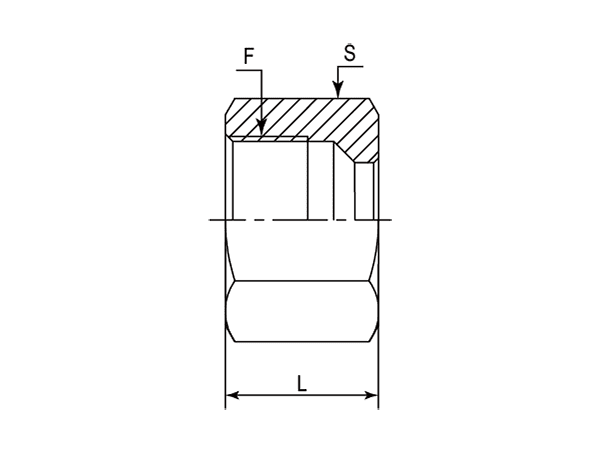

A model drawing of DN hydraulic adaptor.

DME&JDE Code: DN
Product Type: hydraulic adaptor
Adaptor Standard: DIN 2353
Thread Types: Metric
Other Features: Nut/Plug

Technical Data of DN

-06
-08
-10
-12
-14
-15
-16
-18
-20
-22
-25
-28
-30
-35
-38
-42

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F (Thread)	L	S
-	-	Metric	mm	mm
-01	DN-06L	M12X1.5	15.50	14.00
-01	DN-06LL	M10X1	12.50	12.00
-01	DN-06S	M14X1.5	16.50	17.00
-08	DN-08L	M14X1.5	14.50	17.00
-08	DN-08LL	M12X1	13.00	14.00
-08	DN-08S	M16X1.5	16.50	19.00
-10	DN-10L	M16X1.5	15.50	19.00
-10	DN-10S	M18X1.5	17.50	22.00
-12	DN-12L	M18X1.5	16.50	22.00
-12	DN-12S	M20X1.5	17.50	24.00
-14	DN-14S	M22X1.5	20.50	27.00
-15	DN-15L	M22X1.5	17.00	27.00
-16	DN-16S	M24X1.5	20.50	30.00
-18	DN-18L	M26X1.5	18.00	32.00
-20	DN-20S	M30X2	25.00	36.00
-22	DN-22L	M30X2	20.00	36.00
-25	DN-25S	M36X2	27.00	46.00
-28	DN-28L	M36X2	21.00	41.00
-30	DN-30S	M42X2	29.00	50.00
-35	DN-35L	M45X2	24.00	50.00
-38	DN-38S	M52X2	32.50	60.00
-42	DN-42L	M52X2	24.00	60.00
