* Filter the F1 Thread through selecting the -XX options

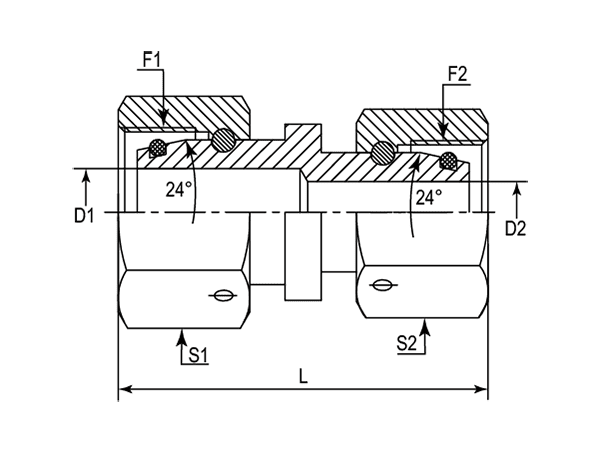

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | D1 | D2 | L | S1 | S2 |
|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | METRIC | mm | mm | mm | mm | mm |
| -01 | DUER-08L-06L | M14X1.5 | M12X1.5 | 3 | 3 | 32.5 | 17 | 14 |
| -01 | DUER-08S-06S | M16X1.5 | M14X1.5 | 3 | 3 | 33.5 | 19 | 17 |
| -10 | DUER-10L-06L | M16X1.5 | M12X1.5 | 6 | 3 | 33 | 19 | 14 |
| -10 | DUER-10L-08L | M16X1.5 | M14X1.5 | 6 | 4 | 32.5 | 19 | 17 |
| -10 | DUER-10S-06S | M18X1.5 | M14X1.5 | 6 | 3 | 34.5 | 22 | 17 |
| -10 | DUER-10S-08S | M18X1.5 | M16X1.5 | 6 | 4 | 34.5 | 22 | 19 |
| -12 | DUER-12L-06L | M18X1.5 | M12X1.5 | 7.5 | 3 | 36 | 22 | 14 |
| -12 | DUER-12L-08L | M18X1.5 | M14X1.5 | 7.5 | 4 | 35.5 | 22 | 17 |
| -12 | DUER-12L-10L | M18X1.5 | M16X1.5 | 6 | 6 | 36 | 22 | 19 |
| -12 | DUER-12S-06S | M20X1.5 | M14X1.5 | 8 | 3 | 37 | 24 | 17 |
| -12 | DUER-12S-08S | M20X1.5 | M16X1.5 | 8 | 4 | 36.5 | 24 | 19 |
| -12 | DUER-12S-10S | M20X1.5 | M18X1.5 | 8 | 6 | 37.5 | 24 | 22 |
| -15 | DUER-15L-08L | M22X1.5 | M14X1.5 | 10 | 4 | 36 | 27 | 17 |
| -15 | DUER-15L-10L | M22X1.5 | M16X1.5 | 10 | 6 | 36.5 | 27 | 19 |
| -15 | DUER-15L-12L | M22X1.5 | M18X1.5 | 10 | 7.5 | 39.5 | 27 | 22 |
| -16 | DUER-16S-10S | M24X1.5 | M18X1.5 | 10 | 6 | 38 | 30 | 22 |
| -16 | DUER-16S-12S | M24X1.5 | M20X1.5 | 10 | 8 | 40 | 30 | 24 |
| -18 | DUER-18L-10L | M26X1.5 | M16X1.5 | 12.5 | 6 | 37 | 32 | 19 |
| -18 | DUER-18L-12L | M26X1.5 | M18X1.5 | 12.5 | 7.5 | 40 | 32 | 22 |
| -18 | DUER-18L-15L | M26X1.5 | M22X1.5 | 12.5 | 10 | 40 | 32 | 27 |
| -20 | DUER-20S-12S | M30X2 | M20X1.5 | 14 | 8 | 41 | 36 | 24 |
| -20 | DUER-20S-16S | M30X2 | M24X1.5 | 14 | 10 | 41 | 36 | 30 |
| -22 | DUER-22L-12L | M30X2 | M18X1.5 | 17 | 7.5 | 41.5 | 36 | 22 |
| -22 | DUER-22L-15L | M30X2 | M22X1.5 | 17 | 10 | 41.5 | 36 | 27 |
| -22 | DUER-22L-18L | M30X2 | M26X1.5 | 17 | 12.5 | 41.5 | 36 | 32 |
| -25 | DUER-25S-16S | M36X2 | M24X1.5 | 18 | 10 | 47.5 | 46 | 30 |
| -25 | DUER-25S-20S | M36X2 | M30X2 | 18 | 14 | 48.5 | 46 | 36 |
| -28 | DUER-28L-15L | M36X2 | M22X1.5 | 22 | 10 | 43.5 | 41 | 27 |
| -28 | DUER-28L-18L | M36X2 | M26X1.5 | 22 | 12.5 | 43.5 | 41 | 32 |
| -28 | DUER-28L-22L | M36X2 | M30X2 | 22 | 17 | 45 | 41 | 36 |
| -30 | DUER-30S-16S | M42X2 | M24X1.5 | 22 | 10 | 46.5 | 50 | 30 |
| -30 | DUER-30S-20S | M42X2 | M30X2 | 22 | 14 | 47.5 | 50 | 36 |
| -30 | DUER-30S-25S | M42X2 | M36X2 | 22 | 18 | 54 | 50 | 46 |
| -35 | DUER-35L-18L | M45X2 | M26X1.5 | 28 | 12.5 | 45 | 50 | 32 |
| -35 | DUER-35L-22L | M45X2 | M30X2 | 28 | 17 | 46.5 | 50 | 36 |
| -35 | DUER-35L-28L | M45X2 | M36X2 | 28 | 22 | 48.5 | 50 | 41 |
| -38 | DUER-38S-20S | M52X2 | M30X2 | 30 | 14 | 54 | 60 | 36 |
| -38 | DUER-38S-25S | M52X2 | M36X2 | 30 | 18 | 60.5 | 60 | 46 |
| -38 | DUER-38S-30S | M52X2 | M42X2 | 30 | 22 | 59.5 | 60 | 50 |
| -42 | DUER-42L-22L | M52X2 | M30X2 | 34 | 17 | 48 | 60 | 36 |
| -42 | DUER-42L-28L | M52X2 | M36X2 | 34 | 22 | 50 | 60 | 41 |
| -42 | DUER-42L-35L | M52X2 | M45X2 | 34 | 28 | 51.5 | 60 | 50 |
