* Filter the F1 Thread through selecting the -XX options

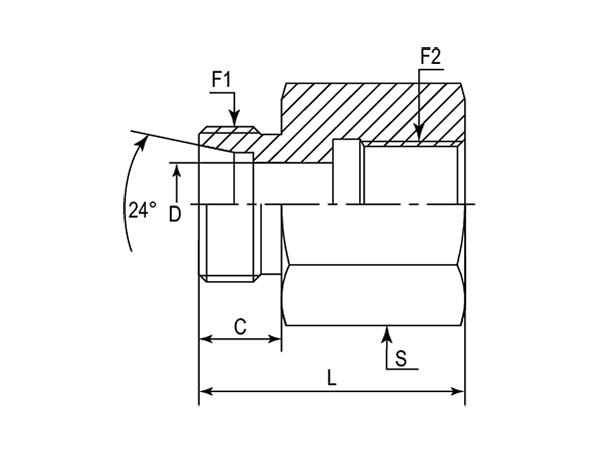

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D | L | S |
|---|---|---|---|---|---|---|---|
| - | - | Metric | Metric | mm | mm | mm | mm |
| -01 | DFC-06L-M10 | M12X1.5 | M10X1 | 10 | 4 | 26 | 14 |
| -01 | DFC-06S-M12 | M14X1.5 | M12X1.5 | 12 | 4 | 33 | 17 |
| -08 | DFC-08L-M12 | M14X1.5 | M12X1.5 | 10 | 6 | 31 | 17 |
| -08 | DFC-08S-M14 | M16X1.5 | M14X1.5 | 12 | 5 | 33 | 19 |
| -10 | DFC-10L-M14 | M16X1.5 | M14X1.5 | 11 | 6 | 32 | 19 |
| -10 | DFC-10S-M16 | M18X1.5 | M16X1.5 | 12 | 7 | 34 | 22 |
| -12 | DFC-12L-M16 | M18X1.5 | M16X1.5 | 11 | 8 | 33 | 22 |
| -12 | DFC-12S-M18 | M20X1.5 | M18X1.5 | 12 | 8 | 34 | 24 |
| -14 | DFC-14S-M20 | M22X1.5 | M20X1.5 | 14 | 10 | 40 | 27 |
| -15 | DFC-15L-M18 | M22X1.5 | M18X1.5 | 12 | 10 | 38 | 24 |
| -16 | DFC-16S-M22 | M24X1.5 | M22X1.5 | 14 | 12 | 40 | 30 |
| -18 | DFC-18L-M22 | M26X1.5 | M22X1.5 | 12 | 14 | 38 | 30 |
| -20 | DFC-20S-M27 | M30X2 | M27X2 | 16 | 15 | 45 | 36 |
| -22 | DFC-22L-M26 | M30X2 | M26X1.5 | 14 | 17 | 42 | 32 |
| -25 | DFC-25S-M33 | M36X2 | M33X2 | 18 | 20 | 49 | 41 |
| -28 | DFC-28L-M33 | M36X2 | M33X2 | 14 | 23 | 45 | 41 |
| -30 | DFC-30S-M42 | M42X2 | M42X2 | 20 | 25 | 56 | 55 |
| -35 | DFC-35L-M42 | M45X2 | M42X2 | 16 | 30 | 51 | 55 |
| -38 | DFC-38S-M48 | M52X2 | M48X2 | 22 | 32 | 60 | 60 |
| -42 | DFC-42L-M48 | M52X2 | M48X2 | 16 | 36 | 54 | 60 |
