* Filter the F1 Thread through selecting the -XX options

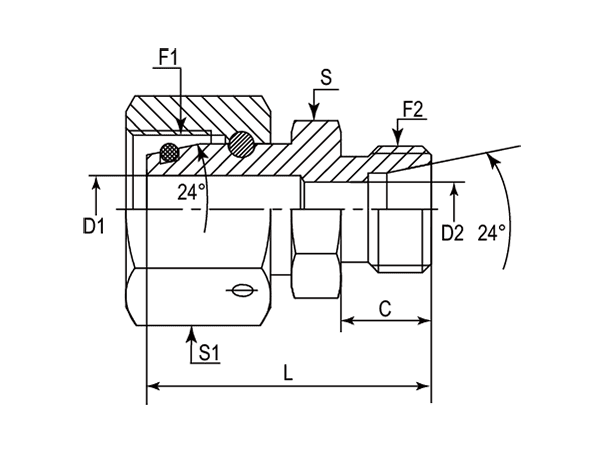

| - | Part Number | F1 (Thread) | F2 (Thread) | C | L | D1 | D2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | Metric | mm | mm | mm | mm | mm | mm |
| -01 | DRED-08S-06S | M16X1.5 | M14X1.5 | 12.00 | 34.00 | 4.00 | 4.00 | 14.00 | 19.00 |
| -10 | DRED-10S-06S | M18X1.5 | M14X1.5 | 12.00 | 35.50 | 5.00 | 4.00 | 17.00 | 22.00 |
| -10 | DRED-10S-08S | M18X1.5 | M16X1.5 | 12.00 | 35.50 | 5.00 | 5.00 | 17.00 | 22.00 |
| -12 | DRED-12S-06S | M20X1.5 | M14X1.5 | 12.00 | 34.50 | 8.00 | 4.00 | 17.00 | 24.00 |
| -12 | DRED-12S-08S | M20X1.5 | M16X1.5 | 12.00 | 34.50 | 8.00 | 5.00 | 17.00 | 24.00 |
| -12 | DERD-12S-10S | M20X1.5 | M18X1.5 | 12.00 | 35.50 | 8.00 | 7.00 | 19.00 | 24.00 |
| -14 | DRED-14S-06S | M22X1.5 | M14X1.5 | 12.00 | 38.50 | 8.00 | 4.00 | 19.00 | 27.00 |
| -14 | DRED-14S-08S | M22X1.5 | M16X1.5 | 12.00 | 38.50 | 8.00 | 5.00 | 19.00 | 27.00 |
| -14 | DERD-14S-10S | M22X1.5 | M18X1.5 | 12.00 | 38.00 | 7.00 | 7.00 | 19.00 | 27.00 |
| -14 | DRED-14S-12S | M22X1.5 | M20X1.5 | 12.00 | 43.00 | 8.00 | 8.00 | 22.00 | 27.00 |
| -16 | DRED-16S-08S | M24X1.5 | M16X1.5 | 12.00 | 36.50 | 10.00 | 5.00 | 22.00 | 30.00 |
| -16 | DERD-16S-10S | M24X1.5 | M18X1.5 | 12.00 | 36.50 | 10.00 | 7.00 | 22.00 | 30.00 |
| -16 | DRED-16S-12S | M24X1.5 | M20X1.5 | 12.00 | 37.00 | 10.00 | 8.00 | 22.00 | 30.00 |
| -16 | DRED-16S-14S | M24X1.5 | M22X1.5 | 14.00 | 43.00 | 10.00 | 10.00 | 24.00 | 30.00 |
| -20 | DRED-20S-08S | M30X2 | M16X1.5 | 12.00 | 42.00 | 14.00 | 5.00 | 27.00 | 36.00 |
| -20 | DERD-20S-10S | M30X2 | M18X1.5 | 12.00 | 42.00 | 14.00 | 7.00 | 27.00 | 36.00 |
| -20 | DRED-20S-12S | M30X2 | M20X1.5 | 12.00 | 40.00 | 14.00 | 8.00 | 27.00 | 36.00 |
| -20 | DRED-20S-14S | M30X2 | M22X1.5 | 14.00 | 42.00 | 14.00 | 10.00 | 27.00 | 36.00 |
| -20 | DRED-20S-16S | M30X2 | M24X1.5 | 14.00 | 42.00 | 14.00 | 12.00 | 27.00 | 36.00 |
| -25 | DRED-25S-08S | M36X2 | M16X1.5 | 12.00 | 45.50 | 18.00 | 5.00 | 32.00 | 46.00 |
| -25 | DERD-25S-10S | M36X2 | M18X1.5 | 12.00 | 46.50 | 18.00 | 7.00 | 32.00 | 46.00 |
| -25 | DRED-25S-12S | M36X2 | M20X1.5 | 12.00 | 46.50 | 18.00 | 8.00 | 32.00 | 46.00 |
| -25 | DRED-25S-14S | M36X2 | M22X1.5 | 14.00 | 48.00 | 18.00 | 10.00 | 32.00 | 46.00 |
| -25 | DRED-25S-20S | M36X2 | M30X2 | 16.00 | 50.00 | 18.00 | 16.00 | 32.00 | 46.00 |
| -30 | DRED-30S-08S | M42X2 | M16X1.5 | 12.00 | 47.00 | 22.00 | 5.00 | 41.00 | 50.00 |
| -30 | DRED-30S-12S | M42X2 | M20X1.5 | 12.00 | 45.50 | 22.00 | 8.00 | 41.00 | 50.00 |
| -30 | DRED-30S-20S | M42X2 | M30X2 | 16.00 | 49.50 | 22.00 | 16.00 | 41.00 | 50.00 |
| -30 | DRED-30S-25S | M42X2 | M36X2 | 18.00 | 51.50 | 22.00 | 20.00 | 41.00 | 50.00 |
| -38 | DRED-38S-12S | M52X2 | M20X1.5 | 12.00 | 54.50 | 30.00 | 8.00 | 50.00 | 60.00 |
| -38 | DRED-38S-14S | M52X2 | M22X1.5 | 14.00 | 56.50 | 30.00 | 10.00 | 50.00 | 60.00 |
| -38 | DRED-38S-16S | M52X2 | M24X1.5 | 14.00 | 56.50 | 30.00 | 12.00 | 50.00 | 60.00 |
| -38 | DRED-38S-20S | M52X2 | M30X2 | 16.00 | 58.50 | 30.00 | 16.00 | 50.00 | 60.00 |
| -38 | DRED-38S-25S | M52X2 | M36X2 | 18.00 | 60.50 | 30.00 | 20.00 | 50.00 | 60.00 |
| -38 | DRED-38S-30S | M52X2 | M42X2 | 20.00 | 60.50 | 30.00 | 25.00 | 50.00 | 60.00 |
