* Filter the F1 Thread through selecting the -XX options

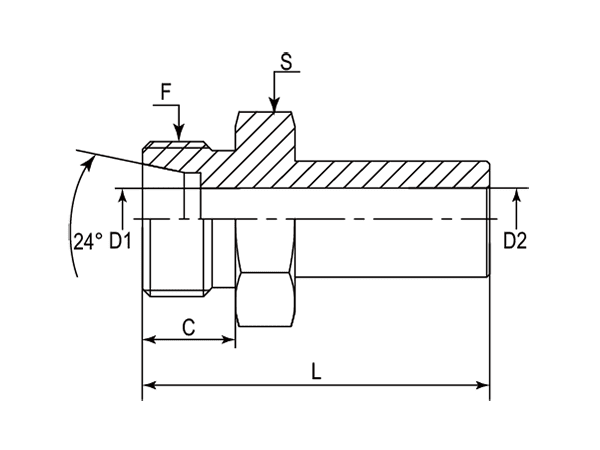

| - | Part Number | F (Thread) | D1 | D2 | C | L | S |
|---|---|---|---|---|---|---|---|
| - | - | Metric | mm | mm | mm | mm | mm |
| -01 | DR-08L-06L | M14X1.5 | 6 | 6 | 10 | 30.5 | 14 |
| -01 | DR-08S-06S | M16X1.5 | 5 | 6 | 12 | 35 | 17 |
| -10 | DR-10L-08L | M16X1.5 | 8 | 8 | 11 | 34.5 | 17 |
| -10 | DR-10S-08S | M18X1.5 | 7 | 8 | 12 | 38 | 19 |
| -12 | DR-12L-10L | M18X1.5 | 10 | 10 | 11 | 35.5 | 19 |
| -12 | DR-12S-10S | M20X1.5 | 8 | 10 | 12 | 39.5 | 22 |
| -14 | DR-14S-12S | M22X1.5 | 10 | 12 | 14 | 44 | 24 |
| -15 | DR-15L-12L | M22X1.5 | 12 | 12 | 12 | 37 | 22 |
| -16 | DR-16S-14S | M24X1.5 | 12 | 14 | 14 | 48 | 27 |
| -18 | DR-18L-15L | M26X1.5 | 15 | 15 | 12 | 40.5 | 27 |
| -20 | DR-20S-16S | M30X2 | 16 | 16 | 16 | 54 | 32 |
| -22 | DR-22L-18L | M30X2 | 19 | 18 | 14 | 42 | 32 |
| -25 | DR-25S-20S | M36X2 | 20 | 20 | 18 | 60 | 36 |
| -28 | DR-28L-22L | M36X2 | 24 | 22 | 14 | 44 | 36 |
| -30 | DR-30S-25S | M42X2 | 25 | 25 | 20 | 66.5 | 46 |
| -35 | DR-35L-28L | M45X2 | 30 | 28 | 16 | 52.5 | 46 |
| -38 | DR-38S-30S | M52X2 | 32 | 30 | 22 | 74.5 | 55 |
| -42 | DR-42L-35L | M52X2 | 36 | 35 | 16 | 54.5 | 55 |
