* Filter the F1 Thread through selecting the -XX options

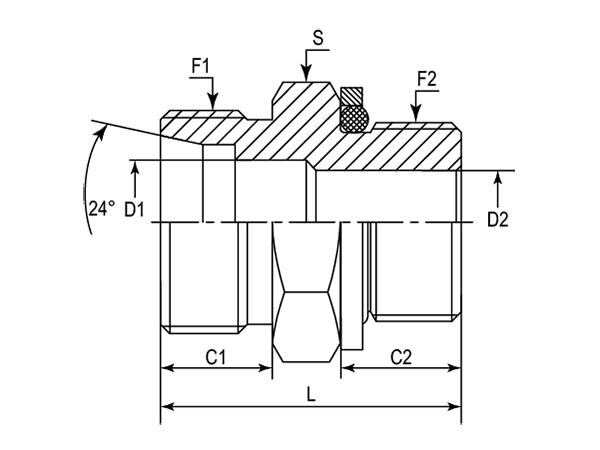

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | BSPP | mm | mm | mm | mm | mm | mm |
| -01 | DMC-06L-01GQ | M12X1.5 | 1/8"-28 | 10.00 | 7.60 | 4.00 | 4.00 | 22.50 | 14 |
| -01 | DMC-06L-02GQ | M12X1.5 | 1/4"-19 | 10.00 | 11.20 | 4.00 | 7.50 | 30.00 | 19 |
| -01 | DMC-06S-02GQ | M14X1.5 | 1/4"-19 | 12.00 | 11.20 | 4.00 | 6.50 | 30.00 | 19 |
| -08 | DMC-08L-02GQ | M14X1.5 | 1/4"-19 | 10.00 | 11.20 | 6.00 | 6.00 | 27.00 | 19 |
| -08 | DMC-08L-03GQ | M14X1.5 | 3/8"-19 | 10.00 | 11.20 | 6.00 | 6.00 | 30.00 | 22 |
| -08 | DMC-08S-02GQ | M16X1.5 | 1/4"-19 | 12.00 | 11.20 | 5.00 | 7.50 | 32.00 | 19 |
| -10 | DMC-10L-02GQ | M16X1.5 | 1/4"-19 | 11.00 | 11.20 | 7.50 | 7.50 | 29.00 | 19 |
| -10 | DMC-10L-03GQ | M16X1.5 | 3/8"-19 | 11.00 | 11.20 | 8.00 | 8.00 | 30.00 | 22 |
| -10 | DMC-10L-04GQ | M16X1.5 | 1/2"-14 | 11.00 | 14.50 | 8.00 | 12.00 | 34.00 | 27 |
| -10 | DMC-10S-02GQ | M18X1.5 | 1/4"-19 | 12.00 | 11.20 | 7.00 | 7.00 | 32.00 | 19 |
| -10 | DMC-10S-03GQ | M18X1.5 | 3/8"-19 | 12.00 | 11.20 | 7.00 | 9.90 | 32.50 | 22 |
| -12 | DMC-12L-03GQ | M18X1.5 | 3/8"-19 | 11.00 | 11.20 | 9.90 | 9.90 | 30.00 | 22 |
| -12 | DMC-12L-04GQ | M18X1.5 | 1/2"-14 | 11.00 | 14.50 | 10.00 | 12.00 | 34.50 | 27 |
| -12 | DMC-12S-03GQ | M20X1.5 | 3/8"-19 | 12.00 | 11.20 | 8.00 | 8.00 | 36.00 | 22 |
| -12 | DMC-12S-04GQ | M20X1.5 | 1/2"-14 | 12.00 | 14.50 | 8.00 | 12.00 | 39.00 | 27 |
| -14 | DMC-14S-04GQ | M22X1.5 | 1/2"-14 | 14.00 | 14.50 | 10.00 | 12.00 | 39.00 | 27 |
| -15 | DMC-15L-03GQ | M22X1.5 | 3/8"-19 | 12.00 | 11.20 | 12.00 | 7.50 | 31.00 | 24 |
| -15 | DMC-15L-04GQ | M22X1.5 | 1/2"-14 | 12.00 | 14.50 | 12.00 | 12.00 | 34.50 | 27 |
| -16 | DMC-16S-04GQ | M24X1.5 | 1/2"-14 | 14.00 | 14.50 | 12.00 | 12.00 | 38.50 | 27 |
| -18 | DMC-18L-04GQ | M26X1.5 | 1/2"-14 | 12.00 | 14.50 | 15.00 | 12.00 | 36.00 | 27 |
| -18 | DMC-18L-06GQ | M26X1.5 | 3/4"-14 | 12.00 | 14.50 | 15.00 | 15.00 | 37.50 | 36 |
| -20 | DMC-20S-06GQ | M30X2 | 3/4"-14 | 16.00 | 15.50 | 16.00 | 16.00 | 45.00 | 36 |
| -22 | DMC-22L-06GQ | M30X2 | 3/4"-14 | 14.00 | 15.50 | 19.00 | 15.50 | 39.50 | 36 |
| -25 | DMC-25S-06GQ | M36X2 | 3/4"-14 | 18.00 | 15.50 | 20.00 | 15.50 | 49.50 | 41 |
| -25 | DMC-25S-08GQ | M36X2 | 1"-11 | 18.00 | 18.60 | 20.00 | 20.00 | 50.50 | 41 |
| -28 | DMC-28L-08GQ | M36X2 | 1"-11 | 14.00 | 18.60 | 24.00 | 21.50 | 41.00 | 41 |
| -30 | DMC-30S-10GQ | M42X2 | 11/4"-11 | 20.00 | 18.60 | 25.00 | 27.50 | 53.10 | 50 |
| -35 | DMC-35L-10GQ | M45X2 | 11/4"-11 | 16.00 | 18.60 | 30.00 | 27.50 | 48.00 | 50 |
| -38 | DMC-38S-12GQ | M52X2 | 11/2"-11 | 22.00 | 18.60 | 32.00 | 32.00 | 58.10 | 55 |
| -42 | DMC-42L-12GQ | M52X2 | 11/2"-11 | 16.00 | 18.60 | 36.00 | 33.00 | 49.50 | 55 |
