Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DTR

DTR Reducing Tee

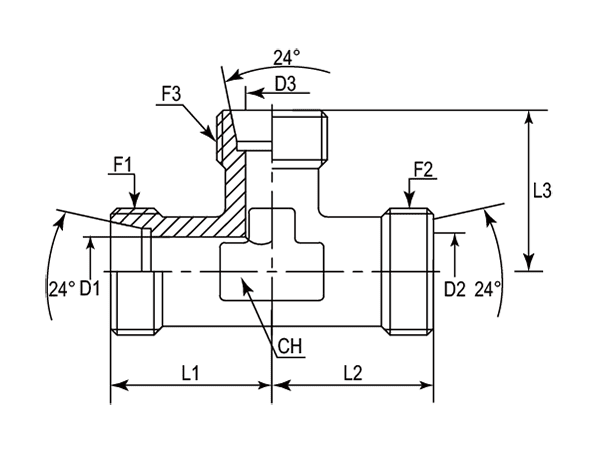

A model drawing of DTR hydraulic adaptor.

DME&JDE Code: DTR
Product Type: hydraulic adaptor
Standard: DIN 2353
Structure: Tee
Connection Type: Male × Male × Male
Thread Types: Metric × Metric × Metric

Technical Data of DTR

-06
-08
-10
-12
-15
-16
-18
-22
-25
-28

* Filter the F1 Thread through selecting the -XX options

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	D1	D2	D3	L1	L2	L3	CH
-	-	METRIC	METRIC	METRIC	mm	mm	mm	mm	mm	mm	mm
-01	DTR-06L-08L-06L	M12X1.5	M14X1.5	M12X1.5	4	6	4	21	21	21	12
-01	DTR-06L-10L-06L	M12X1.5	M16X1.5	M12X1.5	4	8	4	21	22	21	14
-08	DTR-08L-06L-08L	M14X1.5	M12X1.5	M14X1.5	6	4	6	21	21	21	12
-08	DTR-08L-10L-08L	M14X1.5	M16X1.5	M14X1.5	6	8	6	21	22	21	14
-08	DTR-08L-12L-08L	M14X1.5	M18X1.5	M14X1.5	8	10	8	23	24	23	17
-10	DTR-10L-06L-10L	M16X1.5	M12X1.5	M16X1.5	8	4	8	22	21	22	14
-10	DTR-10L-08L-10L	M16X1.5	M14X1.5	M16X1.5	8	6	8	22	21	22	14
-10	DTR-10L-10L-06L	M16X1.5	M16X1.5	M12X1.5	8	8	4	22	22	21	14
-10	DTR-10L-15L-10L	M16X1.5	M22X1.5	M16X1.5	8	12	8	27	28	27	19
-10	DTR-10S-06S-10S	M18X1.5	M14X1.5	M18X1.5	7	4	7	25	25	25	17
-12	DTR-12L-06L-12L	M18X1.5	M12X1.5	M18X1.5	10	4	10	24	23	24	17
-12	DTR-12L-08L-08L	M18X1.5	M14X1.5	M14X1.5	10	8	8	24	23	23	17
-12	DTR-12L-08L-12L	M18X1.5	M14X1.5	M18X1.5	10	8	10	24	23	24	17
-12	DTR-12L-10L-10L	M18X1.5	M16X1.5	M16X1.5	10	8	8	24	24	24	17
-12	DTR-12L-10L-12L	M18X1.5	M16X1.5	M18X1.5	10	8	10	24	24	24	17
-12	DTR-12L-12L-10L	M18X1.5	M18X1.5	M16X1.5	10	10	8	24	24	24	17
-12	DTR-12L-15L-12L	M18X1.5	M22X1.5	M18X1.5	10	12	10	27	28	27	19
-12	DTR-12L-18L-12L	M22X1.5	M26X1.5	M22X1.5	12	15	12	31	31	30	24
-12	DTR-12S-08S-08S	M20X1.5	M16X1.5	M16X1.5	8	5	5	25	25	25	17
-12	DTR-12S-08S-12S	M20X1.5	M16X1.5	M20X1.5	8	5	8	29	25	29	17
-12	DTR-12S-10S-12S	M20X1.5	M18X1.5	M20X1.5	8	7	8	29	25	29	17
-12	DTR-12S-16S-12S	M20X1.5	M24X1.5	M20X1.5	8	12	8	31	33	31	24
-15	DTR-15L-06L-15L	M22X1.5	M12X1.5	M22X1.5	12	4	12	28	25	28	19
-15	DTR-15L-10L-15L	M22X1.5	M16X1.5	M22X1.5	12	8	12	28	27	28	19
-15	DTR-15L-12L-12L	M22X1.5	M18X1.5	M18X1.5	12	10	10	28	27	27	19
-15	DTR-15L-12L-15L	M22X1.5	M18X1.5	M22X1.5	12	10	12	28	27	28	19
-15	DTR-15L-15L-12L	M22X1.5	M22X1.5	M18X1.5	12	12	10	28	28	27	19
-16	DTR-16S-06S-16S	M24X1.5	M14X1.5	M24X1.5	12	4	12	33	31	33	24
-16	DTR-16S-08S-16S	M24X1.5	M16X1.5	M24X1.5	12	5	12	33	31	33	24
-16	DTR-16S-10S-16S	M24X1.5	M18X1.5	M24X1.5	12	7	12	33	31	33	24
-16	DTR-16S-12S-16S	M24X1.5	M20X1.5	M24X1.5	12	8	12	33	31	33	24
-16	DTR-16S-20S-16S	M24X1.5	M30X2	M24X1.5	12	16	12	36	37	36	27
-18	DTR-18L-10L-10L	M26X1.5	M16X1.5	M16X1.5	15	8	8	31	30	30	24
-18	DTR-18L-10L-18L	M26X1.5	M16X1.5	M26X1.5	15	8	15	31	30	31	24
-18	DTR-18L-12L-18L	M26X1.5	M18X1.5	M26X1.5	15	10	15	31	30	31	24
-18	DTR-18L-15L-18L	M26X1.5	M22X1.5	M26X1.5	15	12	15	31	31	31	24
-18	DTR-18L-18L-10L	M26X1.5	M26X1.5	M16X1.5	15	15	8	31	31	30	24
-20	DTR-20S-10S-20S	M30X2	M18X1.5	M30X2	16	7	16	37	34	37	27
-20	DTR-20S-12S-20S	M30X2	M20X1.5	M30X2	16	8	16	37	34	37	27
-20	DTR-20S-16S-20S	M30X2	M24X1.5	M30X2	16	12	16	37	36	37	27
-20	DTR-20S-25S-20S	M30X2	M36X2	M30X2	16	20	16	40	42	40	36
-22	DTR-22L-10L-22L	M30X2	M16X1.5	M30X2	19	8	19	35	33	35	27
-22	DTR-22L-12L-22L	M30X2	M18X1.5	M30X2	19	10	19	35	33	35	27
-22	DTR-22L-15L-15L	M30X2	M22X1.5	M22X1.5	19	12	12	35	34	34	27
-22	DTR-22L-15L-22L	M30X2	M22X1.5	M30X2	19	12	19	35	34	35	27
-22	DTR-22L-18L-18L	M30X2	M26X1.5	M26X1.5	19	15	15	35	34	34	27
-22	DTR-22L-18L-22L	M30X2	M26X1.5	M30X2	19	15	19	35	34	35	27
-22	DTR-22L-22L-18L	M30X2	M30X2	M26X1.5	19	19	15	35	35	34	27
-25	DTR-25S-16S-25S	M36X2	M24X1.5	M36X2	20	12	20	42	39	42	36
-25	DTR-25S-20S-25S	M36X2	M30X2	M36X2	20	16	20	42	40	42	36
-25	DTR-25S-30S-25S	M36X2	M42X2	M36X2	20	25	20	47	49	47	41
-28	DTR-28L-10L-28L	M36X2	M16X1.5	M36X2	24	8	24	38	36	38	36
-28	DTR-28L-12L-28L	M36X2	M18X1.5	M36X2	24	10	24	38	36	38	36
-28	DTR-28L-15L-28L	M36X2	M22X1.5	M36X2	24	12	24	38	37	38	36
-28	DTR-28L-18L-28L	M36X2	M26X1.5	M36X2	24	15	24	38	37	38	36
-28	DTR-28L-22L-22L	M36X2	M30X2	M30X2	24	19	19	38	38	38	36
-28	DTR-28L-22L-28L	M36X2	M30X2	M36X2	24	19	24	38	38	38	36
