* Filter the F1 Thread through selecting the -XX options

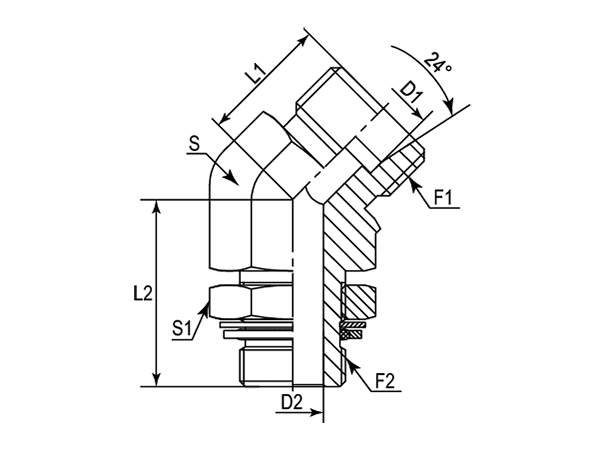

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | D1 | D2 | L1 | L2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | BSPP | mm | mm | mm | mm | mm | mm |
| -01 | DL4-06L-01GQ | M12X1.5 | 1/8"-28 | 4 | 4.4 | 17 | 27 | 14 | 14 |
| -01 | DL4-06L-02GQ | M12X1.5 | 1/4"-19 | 4 | 7.5 | 24 | 29 | 14 | 19 |
| -01 | DL4-06S-02GQ | M14X1.5 | 1/4"-19 | 4 | 7.5 | 16 | 27 | 14 | 14 |
| -08 | DL4-08L-02GQ | M14X1.5 | 1/4"-19 | 6 | 7.5 | 19 | 29 | 14 | 19 |
| -08 | DL4-08L-03GQ | M14X1.5 | 3/8"-19 | 6 | 9.9 | 19 | 33 | 19 | 22 |
| -08 | DL4-08S-02GQ | M16X1.5 | 1/4"-19 | 5 | 7.5 | 19 | 29 | 14 | 19 |
| -10 | DL4-10L-02GQ | M16X1.5 | 1/4"-19 | 8 | 7.5 | 19 | 29 | 14 | 19 |
| -10 | DL4-10L-03GQ | M16X1.5 | 3/8"-19 | 8 | 9.9 | 20 | 33 | 19 | 22 |
| -10 | DL4-10L-04GQ | M16X1.5 | 1/2"-14 | 10 | 12.3 | 19 | 38.5 | 22 | 27 |
| -10 | DL4-10S-02GQ | M18X1.5 | 1/4"-19 | 7 | 7.5 | 21 | 29 | 14 | 19 |
| -10 | DL4-10S-03GQ | M18X1.5 | 3/8"-19 | 7 | 9.9 | 20 | 33 | 19 | 22 |
| -12 | DL4-12L-03GQ | M18X1.5 | 3/8"-19 | 10 | 9.9 | 21 | 33 | 19 | 22 |
| -12 | DL4-12L-04GQ | M18X1.5 | 1/2"-14 | 12 | 12.3 | 21 | 38.5 | 22 | 27 |
| -12 | DL4-12S-03GQ | M20X1.5 | 3/8"-19 | 8 | 9.9 | 24 | 33 | 19 | 22 |
| -12 | DL4-12S-04GQ | M20X1.5 | 1/2"-14 | 8 | 12.3 | 24 | 38.5 | 22 | 27 |
| -14 | DL4-14S-04GQ | M22X1.5 | 1/2"-14 | 10 | 10.5 | 24 | 38.5 | 22 | 27 |
| -15 | DL4-15L-03GQ | M22X1.5 | 3/8"-19 | 12 | 9.9 | 22 | 33 | 19 | 22 |
| -15 | DL4-15L-04GQ | M22X1.5 | 1/2"-14 | 12 | 12.3 | 22 | 38.5 | 22 | 27 |
| -16 | DL4-16S-04GQ | M24X1.5 | 1/2"-14 | 12 | 12.3 | 24 | 38.5 | 22 | 27 |
| -18 | DL4-18L-04GQ | M26X1.5 | 1/2"-14 | 15 | 12.3 | 24 | 38.5 | 22 | 27 |
| -18 | DL4-18L-06GQ | M26X1.5 | 3/4"-14 | 15 | 15.5 | 24 | 44 | 27 | 36 |
| -20 | DL4-20S-06GQ | M30X2 | 3/4"-14 | 16 | 15.5 | 26.5 | 44 | 27 | 36 |
| -22 | DL4-22L-06GQ | M30X2 | 3/4"-14 | 19 | 15.5 | 26 | 46 | 27 | 36 |
| -25 | DL4-25S-06GQ | M36X2 | 3/4"-14 | 20 | 15.5 | 30.5 | 46 | 27 | 36 |
| -25 | DL4-25S-08GQ | M36X2 | 1"-11 | 20 | 21.5 | 30.5 | 52 | 36 | 41 |
| -28 | DL4-28L-08GQ | M36X2 | 1"-11 | 24 | 21.5 | 30.5 | 52 | 36 | 41 |
| -30 | DL4-30S-08GQ | M42X2 | 1"-11 | 25 | 21.5 | 37 | 54 | 36 | 41 |
| -30 | DL4-30S-10GQ | M42X2 | 1 1/4"-11 | 25 | 27.5 | 37 | 48.5 | 41 | 50 |
| -35 | DL4-35L-10GQ | M45X2 | 1 1/4"-11 | 20 | 27.5 | 37 | 48.5 | 41 | 50 |
| -38 | DL4-38S-10GQ | M52X2 | 1 1/4"-11 | 32 | 27.5 | 37 | 48.5 | 41 | 50 |
| -38 | DL4-38S-12GQ | M52X2 | 1 1/2"-11 | 32 | 33 | 37 | 49 | 48 | 55 |
| -42 | DL4-42L-12GQ | M52X2 | 1 1/2"-11 | 36 | 33 | 37 | 49 | 48 | 55 |
