* Filter the F1 Thread through selecting the -XX options

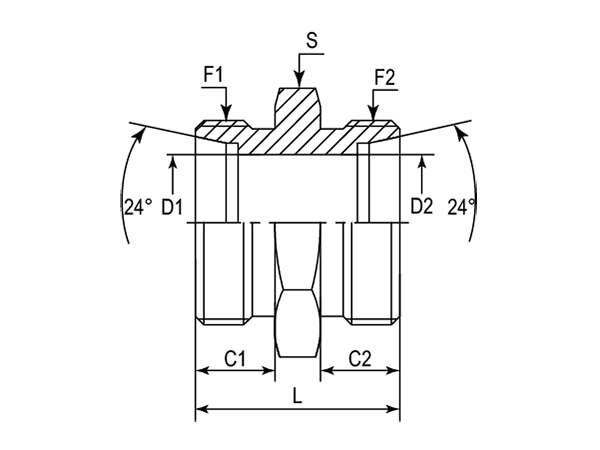

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | Metric | mm | mm | mm | mm | mm | mm |
| -01 | DU-06L | M12X1.5 | M12X1.5 | 10.00 | 10.00 | 4.00 | 4.00 | 24.00 | 12.00 |
| -01 | DU-06LL | M10X1 | M10X1 | 8.00 | 8.00 | 4.50 | 4.50 | 20.00 | 11.00 |
| -01 | DU-06S | M14X1.5 | M14X1.5 | 12.00 | 12.00 | 4.00 | 4.00 | 30.00 | 14.00 |
| -08 | DU-08L | M14X1.5 | M14X1.5 | 10.00 | 10.00 | 6.00 | 6.00 | 25.00 | 14.00 |
| -08 | DU-08LL | M12X1 | M12X1 | 9.00 | 9.00 | 6.00 | 6.00 | 23.00 | 12.00 |
| -08 | DU-08S | M16X1.5 | M16X1.5 | 12.00 | 12.00 | 5.00 | 5.00 | 32.00 | 17.00 |
| -10 | DU-10L | M16X1.5 | M16X1.5 | 11.00 | 11.00 | 8.00 | 8.00 | 27.00 | 17.00 |
| -10 | DU-10S | M18X1.5 | M18X1.5 | 12.00 | 12.00 | 7.00 | 7.00 | 32.00 | 19.00 |
| -12 | DU-12L | M18X1.5 | M18X1.5 | 11.00 | 11.00 | 10.00 | 10.00 | 28.00 | 19.00 |
| -12 | DU-12S | M20X1.5 | M20X1.5 | 12.00 | 12.00 | 8.00 | 8.00 | 34.00 | 22.00 |
| -14 | DU-14S | M22X1.5 | M22X1.5 | 14.00 | 14.00 | 10.00 | 10.00 | 38.00 | 24.00 |
| -15 | DU-15L | M22X1.5 | M22X1.5 | 12.00 | 12.00 | 12.00 | 12.00 | 30.00 | 24.00 |
| -16 | DU-16S | M24X1.5 | M24X1.5 | 14.00 | 14.00 | 12.00 | 12.00 | 38.00 | 27.00 |
| -18 | DU-18L | M26X1.5 | M26X1.5 | 12.00 | 12.00 | 15.00 | 15.00 | 31.00 | 27.00 |
| -20 | DU-20S | M30X2 | M30X2 | 16.00 | 16.00 | 16.00 | 16.00 | 44.00 | 32.00 |
| -22 | DU-22L | M30X2 | M30X2 | 14.00 | 14.00 | 19.00 | 19.00 | 35.00 | 32.00 |
| -25 | DU-25S | M36X2 | M36X2 | 18.00 | 18.00 | 20.00 | 20.00 | 50.00 | 41.00 |
| -28 | DU-28L | M36X2 | M36X2 | 14.00 | 14.00 | 24.00 | 24.00 | 36.00 | 41.00 |
| -30 | DU-30S | M42X2 | M42X2 | 20.00 | 20.00 | 25.00 | 25.00 | 54.00 | 46.00 |
| -38 | DU-38S | M52X2 | M52X2 | 22.00 | 22.00 | 32.00 | 32.00 | 61.00 | 55.00 |
