DOM-U Male Connector(JIC Male) with O Ring

  • DME&JDE Code: DOM-U
  • Product Type: hydraulic adaptor
  • Standard: DIN 2353
  • Structure: straight
  • Connection Type: Male
  • Thread Type: Matric × UNF
  • Sealing Type: O Ring
Technical Data of DOM-U
  • -06
  • -08
  • -10
  • -12
  • -14
  • -15
  • -16
  • -18
  • -20
  • -22
  • -25
  • -28
  • -30
  • -35
  • -38
  • -42

* Filter the F1 Thread through selecting the -XX options

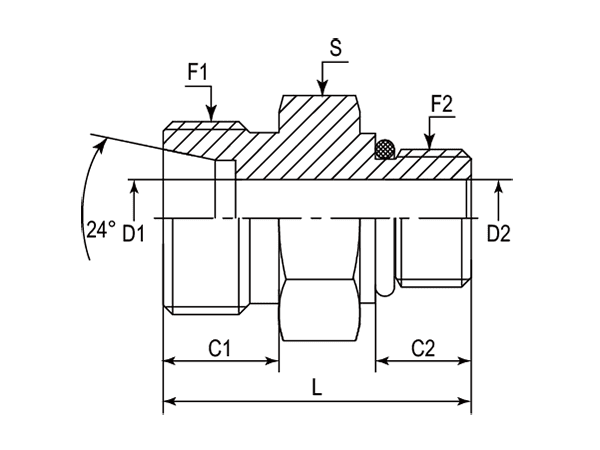

A drawing of DOM-U hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S
- - METRIC UNF mm mm mm mm mm mm
-01 DOM-06L-04U M12X1.5 7/16"-20 10.00 9.14 4.00 4.00 26.00 14
-01 DOM-06L-06U M12X1.5 9/16"-18 10.00 9.93 4.00 7.54 29.50 17
-01 DOM-06S-05U M14X1.5 1/2"-20 12.00 9.14 4.00 5.94 29.00 17
-08 DOM-08L-04U M14X1.5 7/16"-20 10.00 9.14 6.00 4.37 26.00 14
-08 DOM-08L-05U M14X1.5 1/2"-20 10.00 9.14 5.94 5.94 26.70 17
-08 DOM-08L-06U M14X1.5 9/16"-18 10.00 9.93 6.00 6.00 27.50 17
-08 DOM-08L-08U M14X1.5 3/4"-16 10.00 11.13 6.00 9.93 30.00 22
-08 DOM-08S-04U M16X1.5 7/16"-20 12.00 9.14 4.37 4.37 31.00 17
-08 DOM-08S-05U M16X1.5 1/2"-20 12.00 9.14 5.94 5.94 31.00 17
-08 DOM-08S-06U M16X1.5 9/16"-18 12.00 9.93 5.00 7.54 31.00 19
-10 DOM-10L-04U M16X1.5 7/16"-20 11.00 9.14 4.37 4.37 27.00 17
-10 DOM-10L-05U M16X1.5 1/2"-20 11.00 9.14 8.00 5.94 27.00 17
-10 DOM-10L-06U M16X1.5 9/16"-18 11.00 9.93 8.00 8.00 31.00 19
-10 DOM-10L-08U M16X1.5 3/4"-16 11.00 11.13 8.00 8.00 30.00 24
-10 DOM-10L-10U M16X1.5 7/8"-14 11.00 12.70 8.00 8.00 34.00 27
-10 DOM-10S-06U M18X1.5 9/16"-18 12.00 10.00 7.00 7.00 32.00 19
-10 DOM-10S-08U M18X1.5 3/4"-16 12.00 11.13 7.00 9.93 36.00 22
-12 DOM-12L-04U M18X1.5 7/16"-20 11.00 9.14 10.00 4.37 27.50 19
-12 DOM-12L-06U M18X1.5 9/16"-18 11.00 9.93 7.54 7.54 28.00 19
-12 DOM-12L-08U M18X1.5 3/4"-16 11.00 11.13 10.00 10.00 31.00 24
-12 DOM-12L-10U M18X1.5 7/8"-14 11.00 12.70 10.00 10.00 34.00 27
-12 DOM-12S-04U M20X1.5 7/16"-20 12.00 9.14 8.00 4.37 31.00 22
-12 DOM-12S-05U M20X1.5 1/2"-20 12.00 9.14 8.00 5.94 32.00 22
-12 DOM-12S-06U M20X1.5 9/16"-18 12.00 9.93 8.00 8.00 32.00 22
-12 DOM-12S-08U M20X1.5 3/4"-16 12.00 11.13 8.00 9.93 36.00 24
-12 DOM-12S-10U M20X1.5 7/8"-14 12.00 12.70 8.00 12.30 38.00 27
-12 DOM-12S-12U M20X1.5 11/16"-12 12.00 15.09 8.00 15.47 40.50 32
-14 DOM-14S-08U M22X1.5 3/4"-16 14.00 11.13 9.93 9.93 35.00 24
-15 DOM-15L-06U M22X1.5 9/16"-18 12.00 9.93 12.00 7.54 32.00 24
-15 DOM-15L-08U M22X1.5 3/4"-16 12.00 11.13 12.00 9.93 32.00 24
-15 DOM-15L-10U M22X1.5 7/8"-14 12.00 12.70 12.00 12.00 35.00 27
-15 DOM-15L-12U M22X1.5 11/16"-12 12.00 15.09 12.00 15.47 40.00 32
-16 DOM-16S-08U M24X1.5 3/4"-16 14.00 11.13 12.00 9.93 35.00 24
-16 DOM-16S-10U M24X1.5 7/8"-14 14.00 12.70 12.00 12.00 40.00 27
-16 DOM-16S-12U M24X1.5 11/16"-12 14.00 15.09 12.00 12.00 42.00 32
-18 DOM-18L-08U M26X1.5 3/4"-16 12.00 11.13 15.00 9.93 33.00 27
-18 DOM-18L-10U M26X1.5 7/8"-14 12.00 12.70 12.30 12.30 35.00 27
-20 DOM-20S-06U M30X2 9/16"-18 16.00 9.93 16.00 7.54 41.00 32
-20 DOM-20S-08U M30X2 3/4"-16 16.00 11.13 16.00 9.93 42.50 32
-20 DOM-20S-10U M30X2 7/8"-14 16.00 12.70 16.00 12.29 44.00 32
-20 DOM-20S-12U M30X2 11/16"-12 16.00 15.09 15.47 15.47 46.00 32
-22 DOM-22L-08U M30X2 3/4"-16 14.00 11.13 19.00 9.93 35.50 32
-22 DOM-22L-10U M30X2 7/8"-14 14.00 12.70 19.00 12.29 37.00 32
-22 DOM-22L-12U M30X2 11/16"-12 14.00 15.09 19.00 15.47 39.00 32
-22 DOM-22L-16U M30X2 15/16"-12 14.00 15.09 19.00 19.00 40.00 41
-25 DOM-25S-10U M36X2 7/8"-14 18.00 12.70 20.00 12.29 47.00 36
-25 DOM-25S-12U M36X2 11/16"-12 18.00 15.09 20.00 15.00 50.00 36
-25 DOM-25S-16U M36X2 15/16"-12 18.00 15.09 20.00 20.00 50.00 41
-28 DOM-28L-10U M36X2 7/8"-14 14.00 12.70 24.00 12.30 38.50 41
-28 DOM-28L-12U M36X2 11/16"-12 14.00 15.09 24.00 15.47 40.00 41
-28 DOM-28L-16U M36X2 15/16"-12 14.00 15.09 21.44 21.44 40.00 41
-30 DOM-30S-16U M42X2 15/16"-12 20.00 15.09 25.00 21.44 52.00 46
-30 DOM-30S-20U M42X2 15/8"-12 20.00 15.09 25.00 27.38 52.00 50
-35 DOM-35L-16U M45X2 15/16"-12 16.00 15.09 30.00 21.44 43.00 46
-35 DOM-35L-20U M45X2 15/8"-12 16.00 15.09 30.00 27.38 43.00 50
-38 DOM-38S-20U M52X2 15/8"-12 22.00 15.09 32.00 27.38 56.50 55
-38 DOM-38S-24U M52X2 17/8"-12 22.00 15.09 32.00 32.00 57.00 55
-42 DOM-42L-20U M52X2 15/8"-12 16.00 15.09 36.00 27.38 45.00 55
-42 DOM-42L-24U M52X2 17/8"-12 16.00 15.09 36.00 33.32 45.00 55
