DBMC-GED Male Bulkhead Connector (BSPP) with ED Ring

  • DME&JDE Code: DBMC-GED
  • Product Type: hydraulic adaptor
  • Standard: DIN 2353
  • Structure: Straight
  • Connection Type: Male × Male
  • Thread Types: Metric × BSPP
  • Sealing Method: ED Rings
  • Other Features: Bulkhead
Technical Data of DBMC-GED
  • -10
  • -12
  • -35

* Filter the F1 Thread through selecting the -XX options

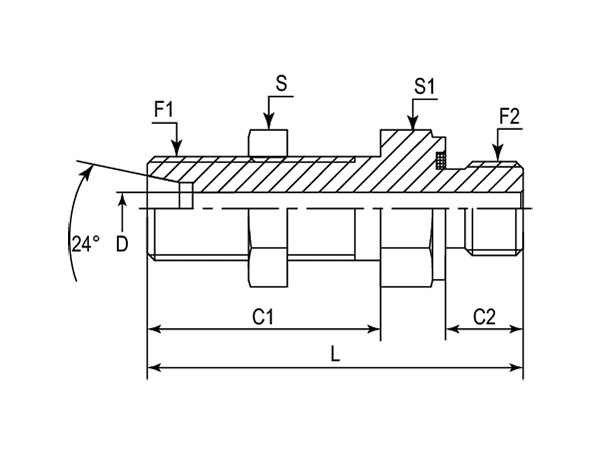

A drawing of DBMC-GED hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) C1 C2 D L S S1
- - Metric BSPP mm mm mm mm mm mm
-01 DBMC-10S-03GED M18X1.5 3/8"-19 37.00 12.00 7.00 59.50 24.00 24.00
-12 DBMC-12S-04GED M20X1.5 1/2"-14 38.00 14.00 8.00 64.00 27.00 27.00
-35 DBMC-35L-10GED M45X2 1-1/4"-11 47.00 20.00 30.00 82.00 50.00 55.00
