Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DS

DS Cutting Ring

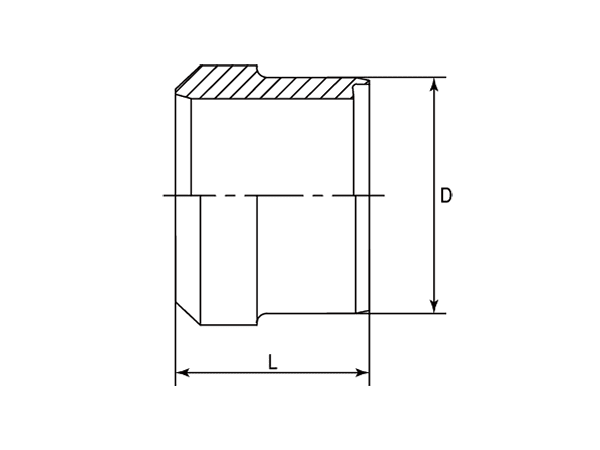

A model drawing of DS hydraulic adaptor.

DME&JDE Code: DS
Product Type: hydraulic adaptor
Adaptor Standard: DIN 2353

Technical Data of DS

-06
-08
-10
-12
-15
-16
-18
-20
-22
-25
-28
-30
-35
-38
-42

* Filter the F1 Thread through selecting the -XX options

-	Part Number	L	D
-	-	mm	mm
-01	DS-06L/S	9.00	8.00
-08	DS-08L/S	9.50	10.10
-10	DS-10L/S	10.00	12.10
-12	DS-12L/S	10.20	14.20
-15	DS-15L	10.50	17.35
-16	DS-16S	10.50	18.35
-18	DS-18L	11.00	20.35
-20	DS-20S	12.50	22.80
-22	DS-22L	11.00	24.35
-25	DS-25S	13.00	27.90
-28	DS-28L	11.50	30.35
-30	DS-30S	13.00	32.90
-35	DS-35L	13.50	37.80
-38	DS-38S	13.50	40.90
-42	DS-42L	13.50	44.90
