* Filter the F1 Thread through selecting the -XX options

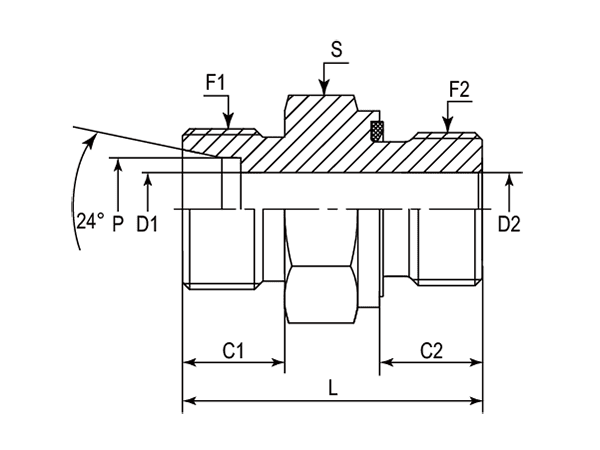

| - | Part Number | F1 (Thread) | F2 (Thread) | P | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | Metric | mm | mm | mm | mm | mm | mm | mm |
| -01 | DMC-06L-M10ED | M12X1.5 | M10X1 | 6.00 | 10.00 | 8.00 | 4.00 | 4.00 | 23.50 | 14.00 |
| -01 | DMC-06L-M12ED | M12X1.5 | M12X1.5 | 6.00 | 10.00 | 12.00 | 4.00 | 4.00 | 30.00 | 17.00 |
| -08 | DMC-08L-M10ED | M14X1.5 | M10X1 | 8.00 | 10.00 | 8.00 | 4.00 | 4.00 | 24.50 | 14.00 |
| -08 | DMC-08L-M12ED | M14X1.5 | M12X1.5 | 8.00 | 10.00 | 12.00 | 6.00 | 6.00 | 29.00 | 17.00 |
| -08 | DMC-08L-M14ED | M14X1.5 | M14X1.5 | 8.00 | 10.00 | 12.00 | 6.00 | 6.00 | 29.00 | 19.00 |
| -08 | DMC-08L-M16ED | M14X1.5 | M16X1.5 | 8.00 | 10.00 | 12.00 | 6.00 | 6.00 | 30.50 | 22.00 |
| -08 | DMC-08L-M18ED | M14X1.5 | M18X1.5 | 8.00 | 10.00 | 12.00 | 6.00 | 10.00 | 30.50 | 24.00 |
| -08 | DMC-08S-M14ED | M16X1.5 | M14X1.5 | 8.00 | 12.00 | 12.00 | 5.00 | 5.00 | 34.00 | 19.00 |
| -10 | DMC-10L-M12ED | M16X1.5 | M12X1.5 | 10.00 | 11.00 | 12.00 | 6.00 | 6.00 | 30.00 | 17.00 |
| -10 | DMC-10L-M14ED | M16X1.5 | M14X1.5 | 10.00 | 11.00 | 12.00 | 6.00 | 6.00 | 30.00 | 19.00 |
| -10 | DMC-10L-M16ED | M16X1.5 | M16X1.5 | 10.00 | 11.00 | 12.00 | 8.00 | 8.00 | 31.50 | 22.00 |
| -10 | DMC-10L-M18ED | M16X1.5 | M18X1.5 | 10.00 | 11.00 | 12.00 | 8.00 | 10.00 | 31.50 | 24.00 |
| -10 | DMC-10L-M22ED | M16X1.5 | M22X1.5 | 10.00 | 11.00 | 14.00 | 8.00 | 12.00 | 35.00 | 27.00 |
| -10 | DMC-10S-M16ED | M18X1.5 | M16X1.5 | 10.00 | 12.00 | 12.00 | 7.00 | 7.00 | 34.50 | 22.00 |
| -12 | DMC-12L-M12ED | M18X1.5 | M12X1.5 | 12.00 | 11.00 | 12.00 | 10.00 | 5.00 | 31.00 | 19.00 |
| -12 | DMC-12L-M14ED | M18X1.5 | M14X1.5 | 12.00 | 11.00 | 12.00 | 10.00 | 7.50 | 31.50 | 19.00 |
| -12 | DMC-12L-M16ED | M18X1.5 | M16X1.5 | 12.00 | 11.00 | 12.00 | 9.00 | 9.00 | 31.50 | 22.00 |
| -12 | DMC-12L-M18ED | M18X1.5 | M18X1.5 | 12.00 | 11.00 | 12.00 | 10.00 | 10.00 | 31.50 | 24.00 |
| -12 | DMC-12L-M22ED | M18X1.5 | M22X1.5 | 12.00 | 11.00 | 14.00 | 10.00 | 10.00 | 35.00 | 27.00 |
| -12 | DMC-12S-M14ED | M20X1.5 | M14X1.5 | 12.00 | 12.00 | 12.00 | 8.00 | 7.00 | 35.00 | 22.00 |
| -12 | DMC-12S-M16ED | M20X1.5 | M16X1.5 | 12.00 | 12.00 | 12.00 | 8.00 | 8.00 | 35.00 | 22.00 |
| -12 | DMC-12S-M18ED | M20X1.5 | M18X1.5 | 12.00 | 12.00 | 12.00 | 8.00 | 8.00 | 36.50 | 24.00 |
| -12 | DMC-12S-M20ED | M20X1.5 | M20X1.5 | 12.00 | 12.00 | 14.00 | 8.00 | 10.00 | 39.00 | 27.00 |
| -12 | DMC-12S-M22ED | M20X1.5 | M22X1.5 | 12.00 | 12.00 | 14.00 | 8.00 | 12.00 | 39.00 | 27.00 |
| -14 | DMC-14S-M20ED | M22X1.5 | M20X1.5 | 14.00 | 14.00 | 14.00 | 10.00 | 10.00 | 41.00 | 27.00 |
| -15 | DMC-15L-M12ED | M22X1.5 | M12X1.5 | 15.00 | 12.00 | 12.00 | 12.00 | 5.00 | 32.00 | 24.00 |
| -15 | DMC-15L-M14ED | M22X1.5 | M14X1.5 | 15.00 | 12.00 | 12.00 | 12.00 | 7.00 | 33.00 | 24.00 |
| -15 | DMC-15L-M16ED | M22X1.5 | M16X1.5 | 15.00 | 12.00 | 12.00 | 12.00 | 8.00 | 32.50 | 24.00 |
| -15 | DMC-15L-M18ED | M22X1.5 | M18X1.5 | 15.00 | 12.00 | 12.00 | 10.00 | 10.00 | 32.50 | 24.00 |
| -15 | DMC-15L-M22ED | M22X1.5 | M22X1.5 | 15.00 | 12.00 | 14.00 | 12.00 | 12.00 | 36.00 | 27.00 |
| -16 | DMC-16L-M22ED | M22X1.5 | M22X1.5 | 16.00 | 12.00 | 14.00 | 12.00 | 12.00 | 36.00 | 27.00 |
| -16 | DMC-16L-M27ED | M22X1.5 | M27X2 | 16.00 | 12.00 | 16.00 | 12.00 | 15.50 | 41.00 | 32.00 |
| -16 | DMC-16S-M18ED | M24X1.5 | M18X1.5 | 16.00 | 14.00 | 12.00 | 10.00 | 10.00 | 38.50 | 27.00 |
| -16 | DMC-16S-M22ED | M24X1.5 | M22X1.5 | 16.00 | 14.00 | 14.00 | 12.00 | 12.00 | 41.00 | 27.00 |
| -18 | DMC-18L-M18ED | M26X1.5 | M18X1.5 | 18.00 | 12.00 | 12.00 | 15.00 | 9.00 | 34.50 | 27.00 |
| -18 | DMC-18L-M22ED | M26X1.5 | M22X1.5 | 18.00 | 12.00 | 14.00 | 14.00 | 14.00 | 36.00 | 27.00 |
| -18 | DMC-18L-M26ED | M26X1.5 | M26X1.5 | 18.00 | 12.00 | 16.00 | 15.00 | 15.00 | 38.00 | 32.00 |
| -20 | DMC-20S-M22ED | M30X2 | M22X1.5 | 20.00 | 16.00 | 14.00 | 13.00 | 13.00 | 45.00 | 32.00 |
| -20 | DMC-20S-M27ED | M30X2 | M27X2 | 20.00 | 16.00 | 16.00 | 15.50 | 15.50 | 47.00 | 32.00 |
| -22 | DMC-22L-M22ED | M30X2 | M22X1.5 | 22.00 | 14.00 | 14.00 | 19.00 | 12.00 | 38.00 | 32.00 |
| -22 | DMC-22L-M26ED | M30X2 | M26X1.5 | 22.00 | 14.00 | 16.00 | 18.00 | 18.00 | 40.00 | 32.00 |
| -25 | DMC-25S-M27ED | M36X2 | M27X2 | 25.00 | 18.00 | 16.00 | 20.00 | 15.50 | 51.00 | 41.00 |
| -28 | DMC-28L-M33ED | M36X2 | M33X2 | 28.00 | 14.00 | 18.00 | 24.00 | 24.00 | 43.00 | 41.00 |
| -30 | DMC-30S-M33ED | M42X2 | M33X2 | 30.00 | 20.00 | 18.00 | 25.00 | 20.00 | 55.00 | 46.00 |
| -30 | DMC-30S-M42ED | M42X2 | M42X2 | 30.00 | 20.00 | 20.00 | 25.00 | 25.00 | 57.00 | 50.00 |
| -35 | DMC-35L-M42ED | M45X2 | M42X2 | 35.30 | 16.00 | 20.00 | 30.00 | 30.00 | 48.00 | 50.00 |
| -38 | DMC-38S-M48ED | M52X2 | M48X2 | 38.30 | 22.00 | 22.00 | 32.00 | 32.00 | 64.00 | 55.00 |
| -42 | DMC-42L-M48ED | M52X2 | M48X2 | 42.30 | 16.00 | 22.00 | 36.00 | 36.00 | 52.00 | 55.00 |
