* Filter the F1 Thread through selecting the -XX options

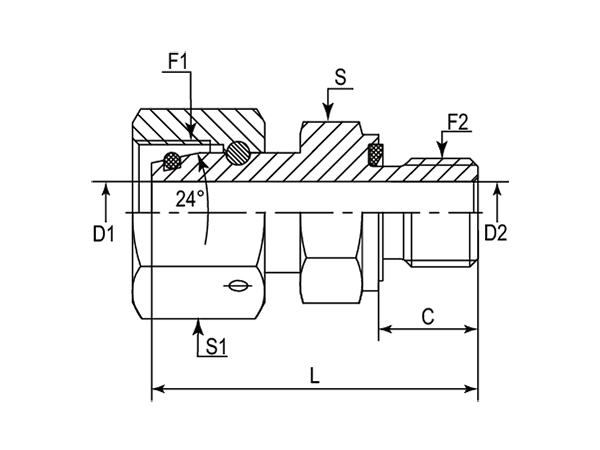

| - | Part Number | F1 (Thread) | F2 (Thread) | C | L | D1 | D2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | BSPP | mm | mm | mm | mm | mm | mm |
| -01 | DEGE-06L-01G | M12X1.5 | 1/8"-28 | 8.00 | 30.50 | 3.00 | 3.00 | 14.00 | 14.00 |
| -01 | DEGE-06L-02G | M12X1.5 | 1/4"-19 | 12.00 | 37.00 | 3.00 | 3.00 | 19.00 | 14.00 |
| -01 | DEGE-06S-02G | M14X1.5 | 1/4"-19 | 12.00 | 36.50 | 3.00 | 3.00 | 19.00 | 17.00 |
| -08 | DEGE-08L-02G | M14X1.5 | 1/4"-19 | 12.00 | 41.50 | 4.00 | 4.00 | 19.00 | 17.00 |
| -08 | DEGE-08S-02G | M16X1.5 | 1/4"-19 | 12.00 | 41.50 | 4.00 | 4.00 | 19.00 | 19.00 |
| -10 | DEGE-10L-02G | M16X1.5 | 1/4"-19 | 12.00 | 39.50 | 6.00 | 6.00 | 19.00 | 19.00 |
| -10 | DEGE-10S-02G | M18X1.5 | 1/4"-19 | 12.00 | 38.50 | 6.00 | 6.00 | 19.00 | 22.00 |
| -10 | DEGE-10S-03G | M18X1.5 | 3/8"-19 | 12.00 | 42.50 | 6.00 | 9.90 | 22.00 | 22.00 |
| -12 | DEGE-12L-02G | M18X1.5 | 1/4"-19 | 12.00 | 39.50 | 7.50 | 7.50 | 19.00 | 22.00 |
| -12 | DEGE-12L-03G | M18X1.5 | 3/8"-19 | 12.00 | 46.00 | 7.50 | 7.50 | 22.00 | 22.00 |
| -12 | DEGE-12L-04G | M18X1.5 | 1/2"-14 | 14.00 | 43.50 | 8.00 | 8.00 | 27.00 | 22.00 |
| -12 | DEGE-12S-03G | M20X1.5 | 3/8"-19 | 12.00 | 44.00 | 8.00 | 8.00 | 22.00 | 24.00 |
| -12 | DEGE-12S-04G | M20X1.5 | 1/2"-14 | 14.00 | 40.50 | 8.00 | 12.00 | 27.00 | 24.00 |
| -14 | DEGE-14S-04G | M22X1.5 | 1/2"-14 | 14.00 | 44.50 | 10.00 | 10.00 | 27.00 | 27.00 |
| -15 | DEGE-15L-04G | M22X1.5 | 1/2"-14 | 14.00 | 46.00 | 12.00 | 12.00 | 27.00 | 27.00 |
| -16 | DEGE-16S-04G | M24X1.5 | 1/2"-14 | 14.00 | 49.00 | 10.00 | 10.00 | 27.00 | 30.00 |
| -18 | DEGE-18L-04G | M26X1.5 | 1/2"-14 | 14.00 | 45.50 | 12.50 | 12.50 | 27.00 | 32.00 |
| -20 | DEGE-20S-06G | M30X2 | 3/4"-14 | 16.00 | 50.00 | 14.00 | 14.00 | 32.00 | 36.00 |
| -20 | DEGE-20S-08G | M30X2 | 1"-11 | 18.00 | 56.50 | 14.00 | 20.00 | 41.00 | 36.00 |
| -22 | DEGE-22L-04G | M30X2 | 1/2"-14 | 14.00 | 44.50 | 17.00 | 12.50 | 27.00 | 36.00 |
| -22 | DEGE-22L-06G | M30X2 | 3/4"-14 | 16.00 | 47.50 | 17.00 | 17.00 | 32.00 | 36.00 |
| -25 | DEGE-25S-08G | M36X2 | 1"-11 | 18.00 | 60.00 | 18.00 | 18.00 | 41.00 | 46.00 |
| -28 | DEGE-28L-08G | M36X2 | 1"-11 | 18.00 | 53.00 | 22.00 | 22.00 | 41.00 | 41.00 |
| -30 | DEGE-30S-10G | M42X2 | 1-1/4"-11 | 20.00 | 65.50 | 22.00 | 27.50 | 50.00 | 50.00 |
| -35 | DEGE-35L-10G | M45X2 | 1-1/4"-11 | 20.00 | 60.00 | 27.50 | 27.50 | 50.00 | 50.00 |
| -38 | DEGE-38S-12G | M52X2 | 1-1/2"-11 | 22.00 | 82.00 | 29.00 | 29.00 | 55.00 | 60.00 |
| -42 | DEGE-42L-12G | M52X2 | 1-1/2"-11 | 22.00 | 63.00 | 34.00 | 29.00 | 55.00 | 60.00 |
