Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DLS

DLS Welding Elbows

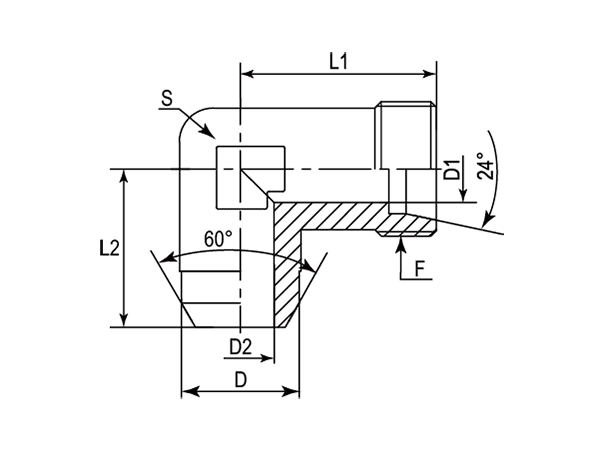

A model drawing of DLS hydraulic adaptor.

DME&JDE Code: DLS
Product Type: hydraulic adaptor
Adaptor Standard: DIN 2353
Adaptor structure: 90° Elbow
Adaptor Connection Type: Male
Thread Types: Metric
Sealing Method: Welding

Technical Data of DLS

-08
-10
-12
-15
-16
-20
-22
-25
-30
-42

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F (Thread)	L1	L2	D1	D2	D	S
-	-	Metric	mm	mm	mm	mm	mm	mm
-01	DLS-08L	M14X1.5	21.00	23.00	6.00	6.00	12.00	12.00
-10	DLS-10L	M16X1.5	22.00	22.00	8.00	8.00	14.00	14.00
-12	DLS-12S	M20X1.5	29.00	29.00	8.00	8.00	17.00	17.00
-15	DLS-15L	M22X1.5	28.00	28.00	12.00	12.00	19.00	19.00
-16	DLS-16S	M24X1.5	32.00	25.00	12.00	12.00	21.00	22.00
-20	DLS-20S	M30X2	37.00	37.00	16.00	16.00	26.00	27.00
-22	DLS-22L	M30X2	35.00	35.00	19.00	19.00	27.00	27.00
-25	DLS-25S	M36X2	42.00	42.00	20.00	20.00	31.00	36.00
-30	DLS-30S	M42X2	49.00	49.00	25.00	25.00	36.00	41.00
-42	DLS-42L	M52X2	51.00	51.00	36.00	36.00	46.00	50.00
