* Filter the F1 Thread through selecting the -XX options

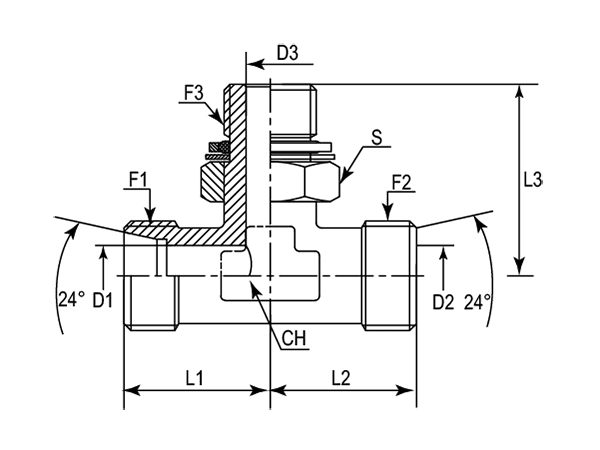

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | F3 (Thread) | D1 | D2 | D3 | L1 | L2 | L3 | CH | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | METRIC | BSPP | mm | mm | mm | mm | mm | mm | mm | mm |
| -01 | DTT-06L-01GQ | M12X1.5 | M12X1.5 | 1/8"-28 | 4 | 4 | 4.4 | 19 | 19 | 26 | 12 | 14 |
| -01 | DTT-06S-02GQ | M14X1.5 | M14X1.5 | 1/4"-19 | 4 | 4 | 7.5 | 23 | 23 | 32 | 14 | 19 |
| -08 | DTT-08L-02GQ | M14X1.5 | M14X1.5 | 1/4"-19 | 6 | 6 | 7.5 | 21 | 21 | 32 | 14 | 19 |
| -08 | DTT-08L-03GQ | M14X1.5 | M14X1.5 | 3/8"-19 | 6 | 6 | 9.9 | 24 | 24 | 37 | 19 | 22 |
| -08 | DTT-08S-02GQ | M16X1.5 | M16X1.5 | 1/4"-19 | 5 | 5 | 7.5 | 24 | 24 | 32 | 19 | 19 |
| -08 | DTT-08S-03GQ | M16X1.5 | M16X1.5 | 3/8"-19 | 5 | 5 | 9.9 | 24 | 24 | 37 | 19 | 22 |
| -10 | DTT-10L-02GQ | M16X1.5 | M16X1.5 | 1/4"-19 | 8 | 8 | 7.5 | 22 | 22 | 32 | 19 | 19 |
| -10 | DTT-10L-03GQ | M16X1.5 | M16X1.5 | 3/8"-19 | 8 | 8 | 9.9 | 26 | 26 | 37 | 19 | 22 |
| -10 | DTT-10L-04GQ | M16X1.5 | M16X1.5 | 1/2"-14 | 8 | 8 | 12.3 | 27 | 27 | 44 | 22 | 27 |
| -10 | DTT-10S-03GQ | M18X1.5 | M18X1.5 | 3/8"-19 | 7 | 7 | 9.9 | 25 | 25 | 37 | 19 | 22 |
| -12 | DTT-12L-02GQ | M18X1.5 | M18X1.5 | 1/4"-19 | 10 | 10 | 7.5 | 24 | 24 | 37 | 19 | 19 |
| -12 | DTT-12L-03GQ | M18X1.5 | M18X1.5 | 3/8"-19 | 10 | 10 | 9.9 | 24 | 24 | 37 | 19 | 22 |
| -12 | DTT-12L-04GQ | M18X1.5 | M18X1.5 | 1/2"-14 | 10 | 10 | 12.3 | 27 | 27 | 44 | 22 | 27 |
| -12 | DTT-12S-03GQ | M20X1.5 | M20X1.5 | 3/8"-19 | 8 | 8 | 9.9 | 29 | 29 | 37 | 22 | 22 |
| -12 | DTT-12S-04GQ | M20X1.5 | M20X1.5 | 1/2"-14 | 8 | 8 | 12.3 | 29 | 29 | 43 | 22 | 27 |
| -14 | DTT-14S-04GQ | M22X1.5 | M22X1.5 | 1/2"-14 | 10 | 10 | 12.3 | 30 | 30 | 44 | 22 | 27 |
| -15 | DTT-15L-03GQ | M22X1.5 | M22X1.5 | 3/8"-19 | 12 | 12 | 9.9 | 28 | 28 | 39 | 22 | 22 |
| -15 | DTT-15L-04GQ | M22X1.5 | M22X1.5 | 1/2"-14 | 12 | 12 | 12.3 | 28 | 28 | 44 | 22 | 27 |
| -16 | DTT-16S-03GQ | M24X1.5 | M24X1.5 | 3/8"-19 | 12 | 12 | 9.9 | 33 | 33 | 41.5 | 27 | 22 |
| -16 | DTT-16S-04GQ | M24X1.5 | M24X1.5 | 1/2"-14 | 12 | 12 | 12.3 | 33 | 33 | 47 | 27 | 27 |
| -18 | DTT-18L-04GQ | M26X1.5 | M26X1.5 | 1/2"-14 | 15 | 15 | 12.3 | 31 | 31 | 47 | 27 | 27 |
| -18 | DTT-18L-06GQ | M26X1.5 | M26X1.5 | 3/4"-14 | 15 | 15 | 15 | 33 | 33 | 47 | 27 | 36 |
| -20 | DTT-20S-06GQ | M30X2 | M30X2 | 3/4"-14 | 16 | 16 | 15.5 | 37 | 37 | 51 | 30 | 36 |
| -22 | DTT-22L-06GQ | M30X2 | M30X2 | 3/4"-14 | 19 | 19 | 15.5 | 35 | 35 | 51 | 30 | 36 |
| -22 | DTT-22L-08GQ | M36X2 | M36X2 | 1"-11 | 24 | 24 | 21.5 | 40 | 40 | 59 | 36 | 41 |
| -25 | DTT-25S-06GQ | M36X2 | M36X2 | 3/4"-14 | 20 | 20 | 15.5 | 42 | 42 | 57.5 | 36 | 36 |
| -25 | DTT-25S-08GQ | M36X2 | M36X2 | 1"-11 | 20 | 20 | 21.5 | 42 | 42 | 56 | 36 | 41 |
| -28 | DTT-28L-08GQ | M36X2 | M36X2 | 1"-11 | 24 | 24 | 21.5 | 38 | 38 | 56 | 36 | 41 |
| -28 | DTT-28L-10GQ | M36X2 | M36X2 | 1"1/4-11 | 24 | 24 | 27.5 | 44.5 | 44.5 | 60.5 | 41 | 50 |
| -30 | DTT-30S-08GQ | M42X2 | M42X2 | 1"-11 | 25 | 25 | 21.5 | 49 | 49 | 57 | 41 | 41 |
| -30 | DTT-30S-10GQ | M42X2 | M42X2 | 1 1/4"-11 | 25 | 25 | 27.5 | 49 | 49 | 59 | 41 | 50 |
| -35 | DTT-35L-10GQ | M45X2 | M45X2 | 1"1/4-11 | 30 | 30 | 27.5 | 45 | 45 | 65 | 48 | 50 |
| -38 | DTT-38S-12GQ | M52X2 | M52X2 | 1"1/2-11 | 32 | 32 | 33 | 57 | 57 | 66 | 55 | 55 |
| -42 | DTT-42L-12GQ | M52X2 | M52X2 | 1"1/2-11 | 36 | 36 | 33 | 51 | 51 | 66 | 55 | 55 |
