DEGE-U DIN 2353 Swivel Female Connector SAE MALE with O Ring

  • DME&JDE Code: DEGE-M
  • Product Type: hydraulic adaptor
  • Standard: DIN2353
  • Structure: Straight
  • Connection Type: Swivel Female × Male
  • Thread Types: Metric × UNF
  • Sealing Method: O Ring
Technical Data of DEGE-U
  • -06
  • -08
  • -10
  • -12
  • -15
  • -16
  • -18
  • -20
  • -22
  • -25
  • -28
  • -30
  • -35
  • -38
  • -42

* Filter the F1 Thread through selecting the -XX options

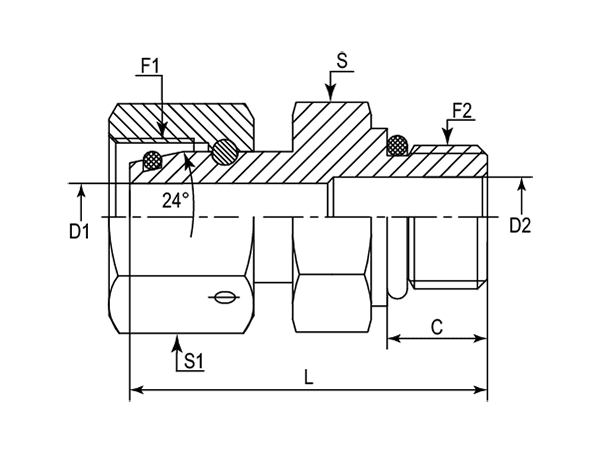

A drawing of DEGE-U hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) C D1 D2 L S S1
- - METRIC UNF mm mm mm mm mm mm
-01 DEGE-06L-04U M12X1.5 7/16"-20 9.14 3 3 30 14 14
-01 DEGE-06L-05U M12X1.5 1/2"-20 9.14 3 5.94 30 14 14
-01 DEGE-06S-04U M14X1.5 7/16"-20 9.14 3 4.37 31 14 17
-08 DEGE-08L-04U M14X1.5 7/16"-20 9.14 4 4 30 14 17
-08 DEGE-08L-06U M14X1.5 9/16"-18 9.93 4 7.54 31 17 17
-08 DEGE-08S-04U M16X1.5 7/16"-20 9.14 4 4 31 14 19
-08 DEGE-08S-06U M16X1.5 9/16"-18 9.93 4 7.54 32 17 19
-10 DEGE-10L-05U M16X1.5 1/2"-20 9.14 5.94 5.94 31 17 19
-10 DEGE-10L-06U M16X1.5 9/16"-18 9.93 6 7.54 32 17 19
-10 DEGE-10L-08U M16X1.5 3/4"-16 11.13 6 9.93 35.5 19 19
-10 DEGE-10S-06U M18X1.5 9/16"-18 9.93 6 6 33 19 22
-10 DEGE-10S-08U M18X1.5 3/4"-16 11.13 6 9.93 35 19 22
-12 DEGE-12L-06U M18X1.5 9/16"-18 9.93 7.5 7.5 35 19 22
-12 DEGE-12L-08U M18X1.5 3/4"-16 11.13 7.5 9.93 37.5 19 22
-12 DEGE-12S-06U M20X1.5 9/16"-18 9.93 7.54 7.54 36 19 24
-12 DEGE-12S-08U M20X1.5 3/4"-16 11.13 8 9.93 37 19 24
-14 DEGE-14S-10U M22X1.5 7/8"-14 12.7 8 12.29 43 24 27
-15 DEGE-15L-06U M22X1.5 9/16"-18 9.93 10 7.54 36 22 27
-15 DEGE-15L-08U M22X1.5 3/4"-16 11.13 9.93 9.93 36.5 19 27
-15 DEGE-15L-10U M22X1.5 7/8"-14 12.7 10 12.29 42 24 27
-16 DEGE-16S-08U M24X1.5 3/4"-16 11.13 9.93 9.93 38 22 30
-16 DEGE-16S-10U M24X1.5 7/8"-14 12.7 10 12.29 42 24 30
-16 DEGE-16S-12U M24X1.5 1"1/16-12 15.09 10 15.47 45 27 30
-18 DEGE-18L-08U M26X1.5 3/4"-16 11.13 9.93 9.93 40 27 32
-18 DEGE-18L-10U M26X1.5 7/8"-14 12.7 12.29 12.29 42 27 32
-18 DEGE-18L-12U M26X1.5 1"1/16-12 15.09 12.5 15.47 45 30 32
-20 DEGE-20S-10U M30X2 7/8"-14 12.7 12.29 12.29 46 30 36
-20 DEGE-20S-12U M30X2 1"1/16-12 15.09 14 14 49 30 36
-22 DEGE-22L-12U M30X2 1"1/16-12 15.09 15.47 15.47 47 32 36
-22 DEGE-22L-16U M30X2 1"5/16-12 15.09 17 21.44 55 36 36
-25 DEGE-25S-16U M36X2 1"5/16-12 15.09 18 21.44 55 36 46
-28 DEGE-28L-16U M36X2 1"5/16-12 15.09 21.44 21.44 53 41 41
-28 DEGE-28L-20U M36X2 1"5/8-12 15.09 22 27.38 54.5 41 41
-30 DEGE-30S-12U M42X2 1"1/16-12 15.09 22 15.47 53.5 41 50
-30 DEGE-30S-20U M42X2 1"5/8-12 15.09 22 27.38 57 46 50
-30 DEGE-30S-24U M42X2 1"7/8-12 15.09 22 33.32 62 50 50
-35 DEGE-35L-20U M45X2 1"5/8-12 15.09 27.38 27.38 54.5 46 50
-35 DEGE-35L-24U M45X2 1"7/8-12 15.09 28 33.32 60 50 50
-38 DEGE-38S-24U M52X2 1"7/8-12 15.09 30 33.32 75 50 50
-38 DEGE-38S-32U M52X2 2"1/2-12 15.09 30 45.25 79 65 60
-42 DEGE-42L-24U M52X2 1"7/8-12 15.09 33.32 33.32 60 55 60
-42 DEGE-42L-32U M52X2 2"1/2-12 15.09 34 45.25 70 65 60
