* Filter the F1 Thread through selecting the -XX options

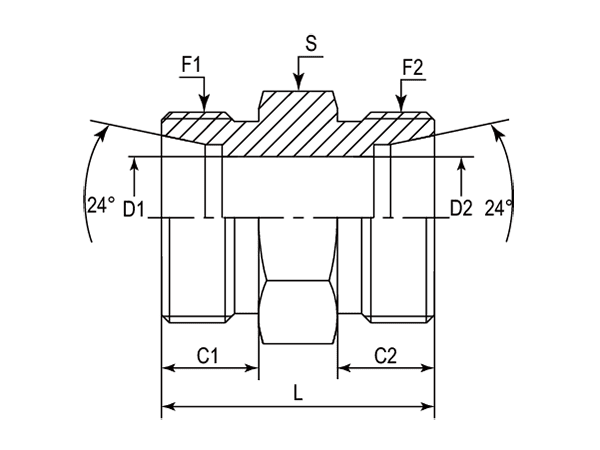

| - | Part Number | F1 (Thread) | F2 (Thread) | C | L | D1 | D2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | Metric | mm | mm | mm | mm | mm | mm |
| -01 | DUR-08L-06L | M14X1.5 | M12X1.5 | 10.00 | 10.00 | 6.00 | 4.00 | 25.00 | 14.00 |
| -10 | DUR-10L-06L | M16X1.5 | M12X1.5 | 11.00 | 10.00 | 8.00 | 4.00 | 26.00 | 17.00 |
| -10 | DUR-10L-08L | M16X1.5 | M14X1.5 | 11.00 | 10.00 | 6.00 | 6.00 | 26.00 | 17.00 |
| -12 | DUR-12L-06L | M18X1.5 | M12X1.5 | 11.00 | 10.00 | 10.00 | 4.00 | 27.00 | 19.00 |
| -12 | DUR-12L-08L | M18X1.5 | M14X1.5 | 11.00 | 10.00 | 10.00 | 6.00 | 27.00 | 19.00 |
| -12 | DUR-12L-10L | M18X1.5 | M16X1.5 | 11.00 | 11.00 | 8.00 | 8.00 | 28.00 | 19.00 |
| -12 | DUR-12S-08S | M20X1.5 | M16X1.5 | 12.00 | 12.00 | 8.00 | 5.00 | 34.00 | 22.00 |
| -12 | DUR-12S-10S | M20X1.5 | M18X1.5 | 12.00 | 12.00 | 7.00 | 7.00 | 34.00 | 24.00 |
| -12 | DUR-12S-12L | M20X1.5 | M18X1.5 | 12.00 | 11.00 | 8.00 | 10.00 | 33.00 | 22.00 |
| -14 | DUR-14S-10S | M22X1.5 | M18X1.5 | 14.00 | 12.00 | 10.00 | 7.00 | 36.00 | 24.00 |
| -14 | DUR-14S-12S | M22X1.5 | M20X1.5 | 14.00 | 12.00 | 8.00 | 8.00 | 36.00 | 24.00 |
| -15 | DUR-15L-08L | M22X1.5 | M14X1.5 | 12.00 | 10.00 | 12.00 | 6.00 | 28.00 | 24.00 |
| -15 | DUR-15L-10L | M22X1.5 | M16X1.5 | 12.00 | 11.00 | 12.00 | 8.00 | 29.00 | 24.00 |
| -15 | DUR-15L-12L | M22X1.5 | M18X1.5 | 12.00 | 11.00 | 12.00 | 10.00 | 29.00 | 24.00 |
| -16 | DUR-16S-12S | M24X1.5 | M20X1.5 | 14.00 | 12.00 | 12.00 | 8.00 | 36.00 | 27.00 |
| -16 | DUR-16S-14S | M24X1.5 | M22X1.5 | 14.00 | 14.00 | 12.00 | 10.00 | 38.00 | 27.00 |
| -16 | DUR-16S-15L | M24X1.5 | M22X1.5 | 14.00 | 12.00 | 12.00 | 12.00 | 36.00 | 27.00 |
| -18 | DUR-18L-10L | M26X1.5 | M16X1.5 | 12.00 | 11.00 | 15.00 | 8.00 | 30.00 | 27.00 |
| -18 | DUR-18L-12L | M26X1.5 | M18X1.5 | 12.00 | 11.00 | 15.00 | 10.00 | 30.00 | 27.00 |
| -18 | DUR-18L-15L | M26X1.5 | M22X1.5 | 12.00 | 12.00 | 12.00 | 12.00 | 31.00 | 27.00 |
| -18 | DUR-18L-16S | M26X1.5 | M24X1.5 | 12.00 | 14.00 | 15.00 | 12.00 | 36.00 | 27.00 |
| -20 | DUR-20S-10S | M30X2 | M18X1.5 | 16.00 | 12.00 | 7.00 | 7.00 | 40.00 | 32.00 |
| -20 | DUR-20S-12S | M30X2 | M20X1.5 | 16.00 | 12.00 | 16.00 | 8.00 | 40.00 | 32.00 |
| -20 | DUR-20S-16S | M30X2 | M24X1.5 | 16.00 | 14.00 | 16.00 | 12.00 | 42.00 | 32.00 |
| -22 | DUR-22L-12L | M30X2 | M18X1.5 | 14.00 | 11.00 | 10.00 | 10.00 | 32.00 | 32.00 |
| -22 | DUR-22L-15L | M30X2 | M22X1.5 | 14.00 | 12.00 | 19.00 | 12.00 | 33.00 | 32.00 |
| -22 | DUR-22L-18L | M30X2 | M26X1.5 | 14.00 | 12.00 | 15.00 | 15.00 | 33.00 | 32.00 |
| -25 | DUR-25S-16S | M36X2 | M24X1.5 | 18.00 | 14.00 | 20.00 | 12.00 | 46.00 | 41.00 |
| -25 | DUR-25S-20S | M36X2 | M30X2 | 18.00 | 16.00 | 16.00 | 16.00 | 48.00 | 41.00 |
| -28 | DUR-28L-18L | M36X2 | M26X1.5 | 14.00 | 12.00 | 24.00 | 15.00 | 34.00 | 41.00 |
| -28 | DUR-28L-22L | M36X2 | M30X2 | 14.00 | 14.00 | 24.00 | 19.00 | 36.00 | 41.00 |
| -30 | DUR-30S-20S | M42X2 | M30X2 | 20.00 | 16.00 | 25.00 | 16.00 | 50.00 | 46.00 |
| -30 | DUR-30S-25S | M42X2 | M36X2 | 20.00 | 18.00 | 20.00 | 20.00 | 52.00 | 46.00 |
| -35 | DUR-35L-22L | M45X2 | M30X2 | 16.00 | 14.00 | 19.00 | 19.00 | 39.00 | 46.00 |
| -35 | DUR-35L-28L | M45X2 | M36X2 | 16.00 | 14.00 | 30.00 | 24.00 | 39.00 | 46.00 |
| -38 | DUR-38S-25S | M52X2 | M36X2 | 22.00 | 18.00 | 32.00 | 20.00 | 57.00 | 55.00 |
| -38 | DUR-38S-30S | M52X2 | M42X2 | 22.00 | 20.00 | 32.00 | 25.00 | 59.00 | 55.00 |
| -42 | DUR-42L-28L | M52X2 | M36X2 | 16.00 | 14.00 | 36.00 | 24.00 | 44.50 | 55.00 |
