* Filter the F1 Thread through selecting the -XX options

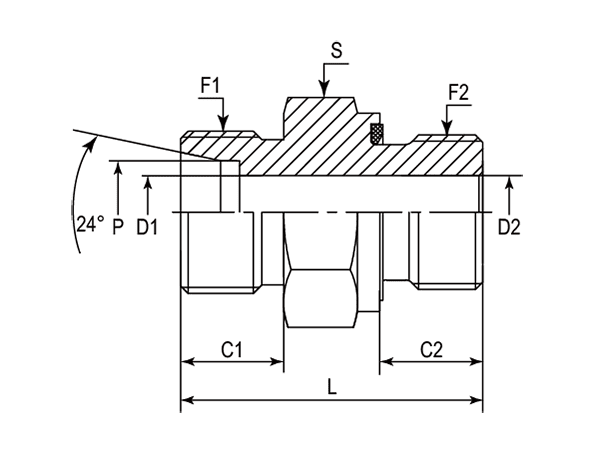

| - | Part Number | F1 (Thread) | F2 (Thread) | P | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | BSPP | mm | mm | mm | mm | mm | mm | mm |
| -01 | DMC-04LL-01GED | M8X1 | 1/8"-28 | 4.10 | 8.00 | 8.00 | 3.00 | 3.00 | 21.50 | 14.00 |
| -06 | DMC-06L-01GED | M12X1.5 | 1/8"-28 | 6.00 | 10.00 | 8.00 | 4.00 | 4.00 | 23.50 | 14.00 |
| -06 | DMC-06L-02GED | M12X1.5 | 1/4"-19 | 6.00 | 10.00 | 12.00 | 4.00 | 6.00 | 29.00 | 19.00 |
| -06 | DMC-06L-03GED | M12X1.5 | 3/8"-19 | 6.00 | 10.00 | 12.00 | 4.00 | 9.00 | 30.50 | 22.00 |
| -06 | DMC-06LL-01GED | M10X1 | 1/8"-28 | 6.00 | 8.00 | 8.00 | 4.00 | 4.00 | 21.50 | 14.00 |
| -06 | DMC-06S-02GED | M14X1.5 | 1/4"-19 | 6.00 | 12.00 | 12.00 | 4.00 | 7.50 | 32.00 | 19.00 |
| -08 | DMC-08L-01GED | M14X1.5 | 1/8"-28 | 8.00 | 10.00 | 8.00 | 6.00 | 4.00 | 24.50 | 14.00 |
| -08 | DMC-08L-02GED | M14X1.5 | 1/4"-19 | 8.00 | 10.00 | 12.00 | 6.00 | 6.00 | 29.00 | 19.00 |
| -08 | DMC-08L-03GED | M14X1.5 | 3/8"-19 | 8.00 | 10.00 | 12.00 | 6.00 | 9.00 | 30.50 | 22.00 |
| -08 | DMC-08L-04GED | M14X1.5 | 1/2"-14 | 8.00 | 10.00 | 14.00 | 6.00 | 12.00 | 33.00 | 27.00 |
| -08 | DMC-08LL-01GED | M12X1 | 1/8"-28 | 8.00 | 9.00 | 8.00 | 6.00 | 4.00 | 23.50 | 14.00 |
| -08 | DMC-08S-02GED | M16X1.5 | 1/4"-19 | 8.00 | 12.00 | 12.00 | 5.00 | 5.00 | 34.00 | 19.00 |
| -08 | DMC-08S-03GED | M16X1.5 | 3/8"-19 | 8.00 | 12.00 | 12.00 | 5.00 | 9.00 | 34.50 | 22.00 |
| -10 | DMC-10L-01GED | M16X1.5 | 1/8"-28 | 10.00 | 11.00 | 8.00 | 8.00 | 4.40 | 26.00 | 17.00 |
| -10 | DMC-10L-02GED | M16X1.5 | 1/4"-19 | 10.00 | 11.00 | 12.00 | 6.00 | 6.00 | 30.00 | 19.00 |
| -10 | DMC-10L-03GED | M16X1.5 | 3/8"-19 | 10.00 | 11.00 | 12.00 | 8.00 | 8.00 | 31.50 | 22.00 |
| -10 | DMC-10L-04GED | M16X1.5 | 1/2"-14 | 10.00 | 11.00 | 14.00 | 8.00 | 12.00 | 34.00 | 27.00 |
| -10 | DMC-10S-02GED | M18X1.5 | 1/4"-19 | 10.00 | 12.00 | 12.00 | 7.00 | 5.00 | 34.00 | 19.00 |
| -10 | DMC-10S-03GED | M18X1.5 | 3/8"-19 | 10.00 | 12.00 | 12.00 | 7.00 | 9.90 | 34.50 | 22.00 |
| -10 | DMC-10S-04GED | M18X1.5 | 1/2"-14 | 10.00 | 12.00 | 14.00 | 7.00 | 12.30 | 39.00 | 27.00 |
| -12 | DMC-12L-02GED | M18X1.5 | 1/4"-19 | 12.00 | 11.00 | 12.00 | 7.50 | 7.50 | 31.00 | 19.00 |
| -12 | DMC-12L-03GED | M18X1.5 | 3/8"-19 | 12.00 | 11.00 | 12.00 | 10.00 | 10.00 | 31.50 | 22.00 |
| -12 | DMC-12L-04GED | M18X1.5 | 1/2"-14 | 12.00 | 11.00 | 14.00 | 10.00 | 10.00 | 34.00 | 27.00 |
| -12 | DMC-12L-06GED | M18X1.5 | 3/4"-14 | 12.00 | 11.00 | 16.00 | 10.00 | 16.70 | 37.00 | 32.00 |
| -12 | DMC-12S-02GED | M20X1.5 | 1/4"-19 | 12.00 | 12.00 | 12.00 | 6.00 | 6.00 | 36.00 | 22.00 |
| -12 | DMC-12S-03GED | M20X1.5 | 3/8"-19 | 12.00 | 12.00 | 12.00 | 8.00 | 8.00 | 36.50 | 22.00 |
| -12 | DMC-12S-04GED | M20X1.5 | 1/2"-14 | 12.00 | 12.00 | 14.00 | 8.00 | 12.00 | 39.00 | 27.00 |
| -12 | DMC-12S-06GED | M20X1.5 | 3/4"-14 | 12.00 | 12.00 | 16.00 | 8.00 | 16.00 | 43.00 | 32.00 |
| -14 | DMC-14S-02GED | M22X1.5 | 1/4"-19 | 14.00 | 14.00 | 12.00 | 10.00 | 5.00 | 38.00 | 24.00 |
| -14 | DMC-14S-03GED | M22X1.5 | 3/8"-19 | 14.00 | 14.00 | 12.00 | 9.00 | 9.00 | 33.50 | 24.00 |
| -14 | DMC-14S-04GED | M22X1.5 | 1/2"-14 | 14.00 | 14.00 | 14.00 | 10.00 | 10.00 | 41.00 | 27.00 |
| -15 | DMC-15L-03GED | M22X1.5 | 3/8"-19 | 15.00 | 12.00 | 12.00 | 12.00 | 9.00 | 31.50 | 24.00 |
| -15 | DMC-15L-04GED | M22X1.5 | 1/2"-14 | 15.00 | 12.00 | 14.00 | 12.00 | 12.00 | 35.00 | 27.00 |
| -15 | DMC-15L-06GED | M22X1.5 | 3/4"-14 | 15.00 | 12.00 | 16.00 | 12.00 | 12.00 | 38.00 | 32.00 |
| -16 | DMC-16L-04GED | M22X1.5 | 1/2"-14 | 16.00 | 12.00 | 14.00 | 12.00 | 12.00 | 36.00 | 27.00 |
| -16 | DMC-16S-02GED | M24X1.5 | 1/4"-19 | 16.00 | 14.00 | 12.00 | 12.00 | 5.00 | 38.50 | 27.00 |
| -16 | DMC-16S-03GED | M24X1.5 | 3/8"-19 | 16.00 | 14.00 | 12.00 | 12.00 | 9.00 | 38.50 | 27.00 |
| -16 | DMC-16S-04GED | M24X1.5 | 1/2"-14 | 16.00 | 14.00 | 14.00 | 12.00 | 12.00 | 41.00 | 27.00 |
| -16 | DMC-16S-06GED | M24X1.5 | 3/4"-14 | 16.00 | 14.00 | 16.00 | 12.00 | 16.00 | 45.00 | 32.00 |
| -16 | DMC-16S-08GED | M24X1.5 | 1"-11 | 16.00 | 14.00 | 18.00 | 12.00 | 20.00 | 48.00 | 41.00 |
| -18 | DMC-18L-03GED | M26X1.5 | 3/8"-19 | 18.00 | 12.00 | 12.00 | 15.00 | 9.00 | 34.00 | 27.00 |
| -18 | DMC-18L-04GED | M26X1.5 | 1/2"-14 | 18.00 | 12.00 | 14.00 | 12.00 | 12.00 | 36.00 | 27.00 |
| -18 | DMC-18L-06GED | M26X1.5 | 3/4"-14 | 18.00 | 12.00 | 16.00 | 15.00 | 15.00 | 38.00 | 32.00 |
| -18 | DMC-18L-08GED | M26X1.5 | 1"-11 | 18.00 | 12.00 | 18.00 | 15.00 | 20.00 | 41.00 | 41.00 |
| -20 | DMC-20S-04GED | M30X2 | 1/2"-14 | 20.00 | 16.00 | 14.00 | 16.00 | 12.30 | 45.00 | 32.00 |
| -20 | DMC-20S-06GED | M30X2 | 3/4"-14 | 20.00 | 16.00 | 16.00 | 16.00 | 16.00 | 47.00 | 32.00 |
| -20 | DMC-20S-08GED | M30X2 | 1"-11 | 20.00 | 16.00 | 18.00 | 16.00 | 20.00 | 49.00 | 41.00 |
| -22 | DMC-22L-04GED | M30X2 | 1/2"-14 | 22.00 | 14.00 | 14.00 | 19.00 | 12.00 | 38.00 | 32.00 |
| -22 | DMC-22L-06GED | M30X2 | 3/4"-14 | 22.00 | 14.00 | 16.00 | 18.00 | 18.00 | 40.00 | 32.00 |
| -22 | DMC-22L-08GED | M30X2 | 1"-11 | 22.00 | 14.00 | 18.00 | 19.00 | 21.50 | 43.00 | 41.00 |
| -25 | DMC-25S-04GED | M36X2 | 1/2"-14 | 25.00 | 18.00 | 14.00 | 20.00 | 12.30 | 49.00 | 41.00 |
| -25 | DMC-25S-06GED | M36X2 | 3/4"-14 | 25.00 | 18.00 | 16.00 | 20.00 | 15.50 | 51.00 | 41.00 |
| -25 | DMC-25S-08GED | M36X2 | 1"-11 | 25.00 | 18.00 | 18.00 | 20.00 | 20.00 | 53.00 | 41.00 |
| -25 | DMC-25S-10GED | M36X2 | 1-1/4"-11 | 25.00 | 18.00 | 20.00 | 20.00 | 25.00 | 55.00 | 50.00 |
| -28 | DMC-28L-06GED | M36X2 | 3/4"-14 | 28.00 | 14.00 | 16.00 | 24.00 | 15.50 | 41.00 | 41.00 |
| -28 | DMC-28L-08GED | M36X2 | 1"-11 | 28.00 | 14.00 | 18.00 | 23.00 | 23.00 | 43.00 | 41.00 |
| -28 | DMC-28L-10GED | M36X2 | 1-1/4"-11 | 28.00 | 14.00 | 20.00 | 24.00 | 28.00 | 46.00 | 50.00 |
| -30 | DMC-30S-06GED | M42X2 | 3/4"-14 | 30.00 | 20.00 | 16.00 | 25.00 | 15.50 | 53.00 | 46.00 |
| -30 | DMC-30S-08GED | M42X2 | 1"-11 | 30.00 | 20.00 | 18.00 | 25.00 | 20.00 | 55.00 | 46.00 |
| -30 | DMC-30S-10GED | M42X2 | 1-1/4"-11 | 30.00 | 20.00 | 20.00 | 25.00 | 25.00 | 57.00 | 50.00 |
| -35 | DMC-35L-08GED | M45X2 | 1"-11 | 35.30 | 16.00 | 18.00 | 30.00 | 21.50 | 46.50 | 46.00 |
| -35 | DMC-35L-10GED | M45X2 | 1-1/4"-11 | 35.30 | 16.00 | 20.00 | 30.00 | 30.00 | 48.00 | 50.00 |
| -35 | DMC-35L-12GED | M45X2 | 1-1/2"-11 | 35.30 | 16.00 | 22.00 | 30.00 | 35.00 | 52.00 | 55.00 |
| -38 | DMC-38S-08GED | M52X2 | 1"-11 | 38.30 | 22.00 | 18.00 | 32.00 | 20.00 | 60.00 | 55.00 |
| -38 | DMC-38S-10GED | M52X2 | 1-1/4"-11 | 38.30 | 22.00 | 20.00 | 32.00 | 25.00 | 62.00 | 55.00 |
| -38 | DMC-38S-12GED | M52X2 | 1-1/2"-11 | 38.30 | 22.00 | 22.00 | 32.00 | 32.00 | 64.00 | 55.00 |
| -42 | DMC-42L-10GED | M52X2 | 1-1/4"-11 | 42.30 | 16.00 | 20.00 | 36.00 | 30.00 | 50.00 | 55.00 |
| -42 | DMC-42L-12GED | M52X2 | 1-1/2"-11 | 42.30 | 16.00 | 22.00 | 36.00 | 36.00 | 52.00 | 55.00 |
