DTT-MQ DIN 2353 Adjustable Branch Tee with Metric Male O Ring and Retaining Ring

  • DME&JDE Code: DTT-MQ
  • Product Type: hydraulic adaptor
  • Standard: DIN 2353
  • Structure: Branch Tee
  • Connection Type: Adjustable Male × Male × Male
  • Thread Types: Metric × Metric × Metric
  • Sealing method: O Ring + Retaining Ring
Technical Data of DTT-MQ
  • -06
  • -08
  • -10
  • -12
  • -14
  • -15
  • -16
  • -18
  • -20
  • -22
  • -25
  • -28
  • -30
  • -35
  • -38
  • -42

* Filter the F1 Thread through selecting the -XX options

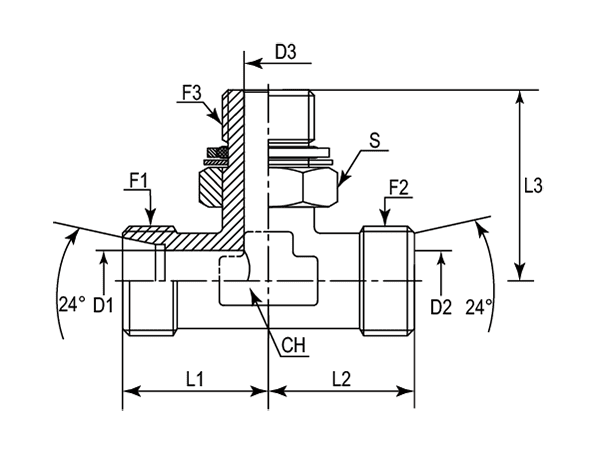

A drawing of DTT-MQ hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) F3 (Thread) D1 D2 D3 L1 L2 L3 CH S
- - METRIC METRIC METRIC mm mm mm mm mm mm mm mm
-01 DTT-06L-M10Q M12X1.5 M12X1.5 M10X1 4 4 4.4 19 19 26 12 14
-01 DTT-06S-M12Q M14X1.5 M14X1.5 M12X1.5 4 4 6 23 23 31 14 17
-01 DTT-06S-M14Q M14X1.5 M14X1.5 M14X1.5 4 4 7.5 23 23 32 14 19
-08 DTT-08L-M12Q M14X1.5 M14X1.5 M12X1.5 6 6 6 21 21 31 14 17
-08 DTT-08L-M14Q M14X1.5 M14X1.5 M14X1.5 6 6 7.5 21 21 32 14 19
-08 DTT-08L-M16Q M14X1.5 M14X1.5 M16X1.5 6 6 9.9 24 24 37 19 22
-08 DTT-08S-M14Q M16X1.5 M16X1.5 M14X1.5 5 5 7.5 24 24 32 19 19
-08 DTT-08S-M16Q M16X1.5 M16X1.5 M16X1.5 5 5 9.9 24 24 37 19 22
-10 DTT-10L-M14Q M16X1.5 M16X1.5 M14X1.5 8 8 7.5 22 22 32 14 19
-10 DTT-10L-M16Q M16X1.5 M16X1.5 M16X1.5 8 8 9.9 26 26 37 19 22
-10 DTT-10L-M20Q M16X1.5 M16X1.5 M20X1.5 8 8 12.3 27 27 44 22 27
-10 DTT-10S-M16Q M18X1.5 M18X1.5 M16X1.5 7 7 9.9 25 25 37 19 22
-12 DTT-12L-M14Q M18X1.5 M18X1.5 M14X1.5 10 10 7.5 24 24 37 19 19
-12 DTT-12L-M16Q M18X1.5 M18X1.5 M16X1.5 10 10 9.9 24 24 37 19 22
-12 DTT-12L-M20Q M18X1.5 M18X1.5 M20X1.5 10 10 12.3 27 27 44 22 27
-12 DTT-12S-M16Q M20X1.5 M20X1.5 M16X1.5 8 8 9.9 29 29 37 22 22
-12 DTT-12S-M18Q M20X1.5 M20X1.5 M18X1.5 8 8 9 29 29 38 19 24
-12 DTT-12S-M20Q M20X1.5 M20X1.5 M20X1.5 8 8 12.3 29 29 43 22 27
-14 DTT-14S-M20Q M22X1.5 M22X1.5 M20X1.5 10 10 12.3 30 30 44 22 27
-15 DTT-15L-M16Q M22X1.5 M22X1.5 M16X1.5 12 12 9.9 28 28 39 22 22
-15 DTT-15L-M18Q M22X1.5 M22X1.5 M18X1.5 12 12 9 28 28 40 24 27
-15 DTT-15L-M20Q M22X1.5 M22X1.5 M20X1.5 12 12 12.3 28 28 44 22 27
-16 DTT-16S-M16Q M24X1.5 M24X1.5 M16X1.5 12 12 9.9 33 33 41.5 27 22
-16 DTT-16S-M20Q M24X1.5 M24X1.5 M20X1.5 12 12 12.3 33 33 47 27 27
-16 DTT-16S-M22Q M24X1.5 M24X1.5 M22X1.5 12 12 12 33 33 48 27 27
-18 DTT-18L-M20Q M26X1.5 M26X1.5 M20X1.5 15 15 12.3 31 31 47 27 27
-18 DTT-18L-M22Q M26X1.5 M26X1.5 M22X1.5 15 15 12 31 31 46 27 27
-18 DTT-18L-M26Q M26X1.5 M26X1.5 M26X1.5 15 15 15 33 33 47 27 36
-20 DTT-20S-M26Q M30X2 M30X2 M26X1.5 16 16 15.5 37 37 51 30 36
-20 DTT-20S-M27Q M30X2 M30X2 M27X2 16 16 15 37 37 50.5 27 32
-22 DTT-22L-M26Q M30X2 M30X2 M26X1.5 19 19 15.5 35.5 35.5 49 30 36
-22 DTT-22L-M27Q M30X2 M30X2 M27X2 19 19 15 35 35 50.5 27 32
-22 DTT-22L-M33Q M30X2 M30X2 M33X2 19 19 21.5 40 40 59 36 41
-25 DTT-25S-M26Q M36X2 M36X2 M26X1.5 20 20 15.5 42 42 57.5 36 36
-25 DTT-25S-M33Q M36X2 M36X2 M33X2 20 20 21.5 42 42 56 36 41
-28 DTT-28L-M33Q M36X2 M36X2 M33X2 24 24 21.5 40 40 59 36 41
-28 DTT-28L-M42Q M36X2 M36X2 M42X2 24 24 27.5 44.5 44.5 60.5 41 50
-30 DTT-30S-M33Q M42X2 M42X2 M33X2 25 25 21.5 49 49 57 41 41
-30 DTT-30S-M42Q M42X2 M42X2 M42X2 25 25 27.5 49 49 65 48 50
-35 DTT-35L-M42Q M45X2 M45X2 M42X2 30 30 27.5 45 45 65 48 50
-38 DTT-38S-M48Q M52X2 M52X2 M48X2 32 32 33 57 57 66 55 55
-42 DTT-42L-M48Q M52X2 M52X2 M48X2 36 36 33 51 51 66 55 55
