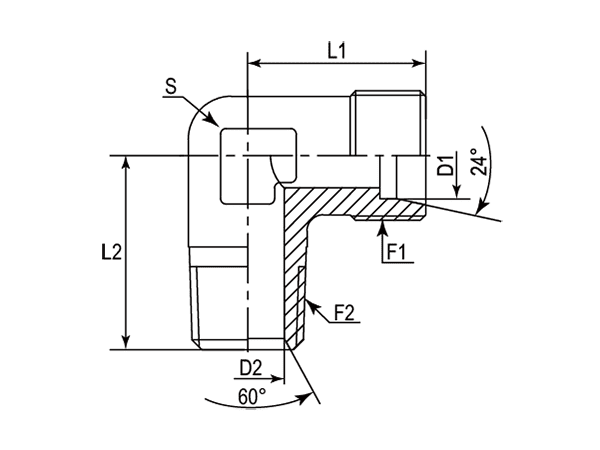

* Filter the F1 Thread through selecting the -XX options
| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S |
|---|---|---|---|---|---|---|---|---|
| - | - | Metric | NPTF | mm | mm | mm | mm | mm |
| -01 | DLM-04LL-01N | M8X1 | 1/8"-27 | 15.00 | 17.00 | 3.00 | 4.00 | 9.00 |
| -06 | DLM-06L-01N | M12X1.5 | 1/8"-27 | 19.00 | 20.00 | 4.00 | 4.78 | 12.00 |
| -06 | DLM-06L-02N | M12X1.5 | 1/4"-18 | 21.00 | 26.00 | 4.00 | 7.14 | 12.00 |
| -06 | DLM-06L-03N | M12X1.5 | 3/8"-18 | 24.00 | 28.00 | 4.00 | 10.31 | 17.00 |
| -06 | DLM-06LL-01N | M10X1 | 1/8"-27 | 15.00 | 17.00 | 4.00 | 4.78 | 9.00 |
| -06 | DLM-06S-02N | M14X1.5 | 1/4"-18 | 23.00 | 26.00 | 4.00 | 7.14 | 12.00 |
| -08 | DLM-08L-01N | M14X1.5 | 1/8"-27 | 21.00 | 26.00 | 6.00 | 4.78 | 12.00 |
| -08 | DLM-08L-02N | M14X1.5 | 1/4"-18 | 21.00 | 26.00 | 6.00 | 7.14 | 12.00 |
| -08 | DLM-08L-03N | M14X1.5 | 3/8"-18 | 24.00 | 28.00 | 6.00 | 10.31 | 17.00 |
| -08 | DLM-08L-04N | M14X1.5 | 1/2"-14 | 24.00 | 34.00 | 6.00 | 13.49 | 19.00 |
| -08 | DLM-08S-02N | M16X1.5 | 1/4"-18 | 24.00 | 27.00 | 5.00 | 7.14 | 14.00 |
| -10 | DLM-10L-01N | M16X1.5 | 1/8"-27 | 22.00 | 27.00 | 8.00 | 4.78 | 14.00 |
| -10 | DLM-10L-02N | M16X1.5 | 1/4"-18 | 22.00 | 27.00 | 8.00 | 7.14 | 14.00 |
| -10 | DLM-10L-03N | M16X1.5 | 3/8"-18 | 25.00 | 28.00 | 8.00 | 10.31 | 17.00 |
| -10 | DLM-10L-04N | M16X1.5 | 1/2"-14 | 24.00 | 34.00 | 8.00 | 13.49 | 19.00 |
| -10 | DLM-10S-03N | M18X1.5 | 3/8"-18 | 25.00 | 28.00 | 7.00 | 10.31 | 17.00 |
| -12 | DLM-12L-02N | M18X1.5 | 1/4"-18 | 24.00 | 28.00 | 10.00 | 7.14 | 17.00 |
| -12 | DLM-12L-03N | M18X1.5 | 3/8"-18 | 24.00 | 28.00 | 10.00 | 10.31 | 17.00 |
| -12 | DLM-12L-04N | M18X1.5 | 1/2"-14 | 24.00 | 34.00 | 10.00 | 13.49 | 22.00 |
| -12 | DLM-12S-02N | M20X1.5 | 1/4"-18 | 29.00 | 29.00 | 8.00 | 7.14 | 19.00 |
| -12 | DLM-12S-03N | M20X1.5 | 3/8"-18 | 29.00 | 28.00 | 8.00 | 10.31 | 19.00 |
| -12 | DLM-12S-04N | M20X1.5 | 1/2"-14 | 29.00 | 36.00 | 8.00 | 13.49 | 19.00 |
| -12 | DLM-12S-06N | M20X1.5 | 3/4"-14 | 29.00 | 40.40 | 8.00 | 16.70 | 27.00 |
| -14 | DLM-14S-03N | M22X1.5 | 3/8"-18 | 30.00 | 30.00 | 10.00 | 10.31 | 19.00 |
| -14 | DLM-14S-04N | M22X1.5 | 1/2"-14 | 30.00 | 34.00 | 10.00 | 13.49 | 19.00 |
| -15 | DLM-15L-03N | M22X1.5 | 3/8"-18 | 28.00 | 30.00 | 12.00 | 10.31 | 19.00 |
| -15 | DLM-15L-04N | M22X1.5 | 1/2"-14 | 28.00 | 34.00 | 12.00 | 13.49 | 19.00 |
| -15 | DLM-15L-06N | M22X1.5 | 3/4"-14 | 34.00 | 38.50 | 12.00 | 16.70 | 27.00 |
| -16 | DLM-16S-03N | M24X1.5 | 3/8"-18 | 33.00 | 34.00 | 12.00 | 10.31 | 24.00 |
| -16 | DLM-16S-04N | M24X1.5 | 1/2"-14 | 33.00 | 36.00 | 12.00 | 13.49 | 24.00 |
| -16 | DLM-16S-06N | M24X1.5 | 3/4"-14 | 33.00 | 40.40 | 12.00 | 18.26 | 27.00 |
| -18 | DLM-18L-04N | M26X1.5 | 1/2"-14 | 31.00 | 36.00 | 15.00 | 13.49 | 24.00 |
| -18 | DLM-18L-06N | M26X1.5 | 3/4"-14 | 34.00 | 42.00 | 15.00 | 18.26 | 27.00 |
| -20 | DLM-20S-04N | M30X2 | 1/2"-14 | 37.00 | 42.00 | 16.00 | 13.49 | 27.00 |
| -20 | DLM-20S-06N | M30X2 | 3/4"-14 | 37.00 | 40.40 | 16.00 | 18.26 | 27.00 |
| -20 | DLM-20S-08N | M30X2 | 1"-1-1/2 | 42.00 | 48.00 | 16.00 | 23.83 | 36.00 |
| -22 | DLM-22L-06N | M30X2 | 3/4"-14 | 35.00 | 38.50 | 19.00 | 18.26 | 27.00 |
| -25 | DLM-25S-04N | M36X2 | 1/2"-14 | 42.00 | 45.00 | 20.00 | 13.49 | 36.00 |
| -25 | DLM-25S-06N | M36X2 | 3/4"-14 | 42.00 | 45.00 | 20.00 | 18.26 | 36.00 |
| -25 | DLM-25S-08N | M36X2 | 1"-11-1/2 | 42.00 | 48.00 | 20.00 | 23.83 | 36.00 |
| -28 | DLM-28L-08N | M36X2 | 1"-11-1/2 | 38.00 | 48.00 | 24.00 | 22.20 | 36.00 |
| -30 | DLM-30S-08N | M42X2 | 1"-11-1/2 | 49.00 | 55.00 | 25.00 | 23.83 | 41.00 |
| -30 | DLM-30S-10N | M42X2 | 1-1/4"-11-1/2 | 49.00 | 55.00 | 25.00 | 31.75 | 41.00 |
| -35 | DLM-35L-10N | M45X2 | 1-1/4"-11-1/2 | 45.00 | 55.00 | 30.00 | 31.75 | 41.00 |
| -38 | DLM-38S-12N | M52X2 | 1-1/2"-11-1/2 | 57.00 | 61.00 | 32.00 | 38.10 | 50.00 |
| -42 | DLM-42L-12N | M52X2 | 1-1/2"-11-1/2 | 51.00 | 61.00 | 36.00 | 38.10 | 50.00 |
