* Filter the F1 Thread through selecting the -XX options

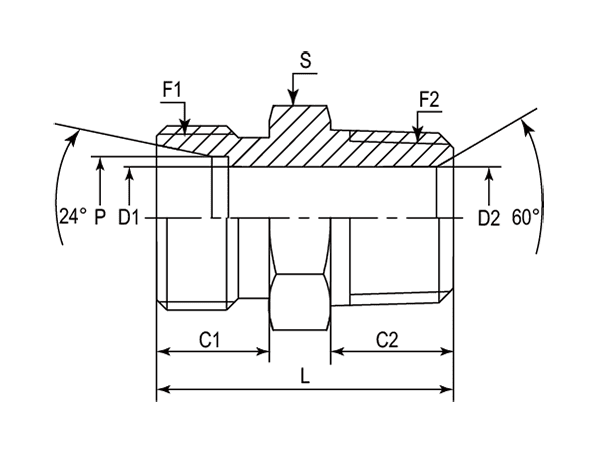

| - | Part Number | F1 (Thread) | F2 (Thread) | P | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | BSPT | mm | mm | mm | mm | mm | mm | mm |
| -01 | DMC-04LL-01R | M8X1 | 1/8"-28 | 4.10 | 8.00 | 10.00 | 3.00 | 4.50 | 23.50 | 12.00 |
| -06 | DMC-06L-01R | M12X1.5 | 1/8"-28 | 6.00 | 10.00 | 10.00 | 4.00 | 4.00 | 24.00 | 12.00 |
| -06 | DMC-06L-02R | M12X1.5 | 1/4"-19 | 6.00 | 10.00 | 14.00 | 4.00 | 6.00 | 28.00 | 17.00 |
| -06 | DMC-06L-03R | M12X1.5 | 3/8"-19 | 6.00 | 10.00 | 15.00 | 4.00 | 9.00 | 32.00 | 19.00 |
| -06 | DMC-06LL-01R | M10X1 | 1/8"-28 | 6.00 | 8.00 | 8.00 | 4.50 | 4.50 | 20.00 | 11.00 |
| -06 | DMC-06S-01R | M14X1.5 | 1/8"-28 | 6.00 | 12.00 | 10.00 | 4.00 | 4.00 | 28.00 | 14.00 |
| -06 | DMC-06S-02R | M14X1.5 | 1/4"-19 | 6.00 | 12.00 | 14.00 | 4.00 | 5.94 | 33.00 | 17.00 |
| -08 | DMC-08L-01R | M14X1.5 | 1/8"-28 | 8.00 | 10.00 | 10.00 | 6.00 | 4.50 | 26.00 | 14.00 |
| -08 | DMC-08L-02R | M14X1.5 | 1/4"-19 | 8.00 | 10.00 | 14.00 | 5.94 | 5.94 | 30.00 | 17.00 |
| -08 | DMC-08L-03R | M14X1.5 | 3/8"-19 | 8.00 | 10.00 | 15.00 | 6.00 | 9.00 | 32.50 | 19.00 |
| -08 | DMC-08L-04R | M14X1.5 | 1/2"-14 | 8.00 | 10.00 | 19.00 | 6.00 | 12.00 | 36.00 | 22.00 |
| -08 | DMC-08LL-01R | M12X1 | 1/8"-28 | 8.00 | 9.00 | 10.00 | 4.50 | 4.50 | 25.00 | 12.00 |
| -08 | DMC-08S-02R | M16X1.5 | 1/4"-19 | 8.00 | 12.00 | 14.00 | 5.00 | 5.00 | 32.00 | 17.00 |
| -10 | DMC-10L-01R | M16X1.5 | 1/8"-28 | 10.00 | 11.00 | 10.00 | 8.00 | 4.50 | 26.00 | 17.00 |
| -10 | DMC-10L-02R | M16X1.5 | 1/4"-19 | 10.00 | 11.00 | 14.00 | 6.00 | 6.00 | 28.50 | 17.00 |
| -10 | DMC-10L-03R | M16X1.5 | 3/8"-19 | 10.00 | 11.00 | 14.00 | 8.00 | 8.00 | 31.00 | 19.00 |
| -10 | DMC-10L-04R | M16X1.5 | 1/2"-14 | 10.00 | 11.00 | 14.00 | 8.00 | 12.00 | 32.00 | 22.00 |
| -10 | DMC-10S-02R | M18X1.5 | 1/4"-19 | 10.00 | 12.00 | 14.00 | 6.00 | 6.00 | 34.00 | 19.00 |
| -10 | DMC-10S-03R | M18X1.5 | 3/8"-19 | 10.00 | 12.00 | 15.00 | 7.00 | 7.00 | 35.00 | 19.00 |
| -10 | DMC-10S-04R | M18X1.5 | 1/2"-14 | 10.00 | 12.00 | 19.00 | 7.00 | 12.00 | 41.00 | 22.00 |
| -12 | DMC-12L-02R | M18X1.5 | 1/4"-19 | 12.00 | 11.00 | 12.50 | 10.00 | 6.00 | 30.00 | 19.00 |
| -12 | DMC-12L-03R | M18X1.5 | 3/8"-19 | 12.00 | 11.00 | 12.00 | 9.00 | 9.00 | 30.00 | 19.00 |
| -12 | DMC-12L-04R | M18X1.5 | 1/2"-14 | 12.00 | 11.00 | 16.00 | 10.00 | 10.00 | 33.00 | 24.00 |
| -12 | DMC-12S-02R | M20X1.5 | 1/4"-19 | 12.00 | 12.00 | 14.00 | 8.00 | 6.00 | 36.00 | 22.00 |
| -12 | DMC-12S-03R | M20X1.5 | 3/8"-19 | 12.00 | 12.00 | 15.00 | 8.00 | 8.00 | 35.00 | 22.00 |
| -12 | DMC-12S-04R | M20X1.5 | 1/2"-14 | 12.00 | 12.00 | 14.00 | 8.00 | 12.00 | 36.00 | 22.00 |
| -14 | DMC-14S-03R | M22X1.5 | 3/8"-19 | 14.00 | 14.00 | 15.00 | 9.00 | 9.00 | 38.00 | 24.00 |
| -14 | DMC-14S-04R | M22X1.5 | 1/2"-14 | 14.00 | 14.00 | 19.00 | 10.00 | 12.00 | 43.00 | 24.00 |
| -15 | DMC-15L-04R | M22X1.5 | 1/2"-14 | 15.00 | 12.00 | 16.00 | 12.00 | 12.00 | 34.00 | 24.00 |
| -16 | DMC-16S-03R | M24X1.5 | 3/8"-19 | 16.00 | 14.00 | 15.00 | 12.00 | 9.00 | 39.50 | 27.00 |
| -16 | DMC-16S-04R | M24X1.5 | 1/2"-14 | 16.00 | 14.00 | 16.00 | 12.00 | 12.00 | 40.00 | 27.00 |
| -18 | DMC-18L-04R | M26X1.5 | 1/2"-14 | 18.00 | 12.00 | 19.00 | 15.00 | 12.00 | 38.50 | 27.00 |
| -18 | DMC-18L-06R | M26X1.5 | 3/4"-14 | 18.00 | 12.00 | 16.00 | 15.00 | 15.00 | 35.00 | 32.00 |
| -20 | DMC-20S-04R | M30X2 | 1/2"-14 | 20.00 | 16.00 | 19.00 | 16.00 | 12.00 | 46.00 | 32.00 |
| -20 | DMC-20S-06R | M30X2 | 3/4"-14 | 20.00 | 16.00 | 20.00 | 16.00 | 16.00 | 48.00 | 32.00 |
| -22 | DMC-22L-06R | M30X2 | 3/4"-14 | 22.00 | 14.00 | 20.00 | 16.70 | 16.70 | 41.00 | 32.00 |
| -25 | DMC-25S-04R | M36X2 | 1/2"-14 | 25.00 | 18.00 | 19.00 | 20.00 | 12.00 | 50.00 | 41.00 |
| -25 | DMC-25S-06R | M36X2 | 3/4"-14 | 25.00 | 18.00 | 20.00 | 20.00 | 16.70 | 51.00 | 41.00 |
| -25 | DMC-25S-08R | M36X2 | 1"-11 | 25.00 | 18.00 | 24.00 | 20.00 | 22.20 | 56.00 | 41.00 |
| -28 | DMC-28L-08R | M36X2 | 1"-11 | 28.00 | 14.00 | 24.00 | 23.00 | 23.00 | 48.00 | 41.00 |
| -30 | DMC-30S-08R | M42X2 | 1"-11 | 30.00 | 20.00 | 24.00 | 25.00 | 22.20 | 58.00 | 46.00 |
| -30 | DMC-30S-10R | M42X2 | 1-1/4"-11 | 30.00 | 20.00 | 25.00 | 25.00 | 28.60 | 60.00 | 46.00 |
| -35 | DMC-35L-10R | M45X2 | 1-1/4"-11 | 35.30 | 16.00 | 25.00 | 28.60 | 28.60 | 51.00 | 46.00 |
| -38 | DMC-38S-12R | M52X2 | 1-1/2"-11 | 38.30 | 22.00 | 25.00 | 32.00 | 32.00 | 64.00 | 55.00 |
| -42 | DMC-42L-12R | M52X2 | 1-1/2"-11 | 42.30 | 16.00 | 25.00 | 36.00 | 33.30 | 52.00 | 55.00 |
