* Filter the F1 Thread through selecting the -XX options

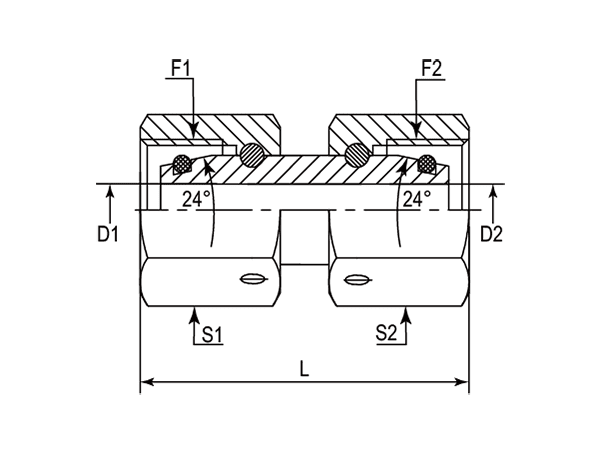

| - | Part Number | F1/F2 (Thread) | D1/D2 | L | S1/S2 |
|---|---|---|---|---|---|
| - | - | Metric | mm | mm | mm |
| -01 | DUE-06L | M12X1.5 | 3.00 | 30.00 | 14.00 |
| -01 | DUE-06S | M14X1.5 | 3.00 | 32.00 | 17.00 |
| -08 | DUE-08L | M14X1.5 | 4.00 | 33.00 | 17.00 |
| -08 | DUE-08S | M16X1.5 | 4.00 | 33.00 | 19.00 |
| -10 | DUE-10L | M16X1.5 | 6.00 | 33.00 | 19.00 |
| -10 | DUE-10S | M18X1.5 | 6.00 | 33.00 | 22.00 |
| -12 | DUE-12L | M18X1.5 | 7.50 | 33.00 | 22.00 |
| -12 | DUE-12S | M20X1.5 | 8.00 | 37.00 | 24.00 |
| -14 | DUE-14S | M22X1.5 | 8.00 | 39.00 | 27.00 |
| -15 | DUE-15L | M22X1.5 | 10.00 | 37.00 | 27.00 |
| -16 | DUE-16S | M24X1.5 | 10.00 | 39.00 | 30.00 |
| -18 | DUE-18L | M26X1.5 | 12.50 | 36.00 | 32.00 |
| -20 | DUE-20S | M30X2 | 14.00 | 53.50 | 36.00 |
| -22 | DUE-22L | M30X2 | 17.00 | 42.00 | 36.00 |
| -25 | DUE-25S | M36X2 | 18.00 | 55.00 | 46.00 |
| -28 | DUE-28L | M36X2 | 22.00 | 45.00 | 41.00 |
| -30 | DUE-30S | M42X2 | 22.00 | 52.00 | 50.00 |
| -35 | DUE-35L | M45X2 | 28.00 | 48.00 | 50.00 |
| -38 | DUE-38S | M52X2 | 30.00 | 61.00 | 60.00 |
| -42 | DUE-42L | M52X2 | 34.00 | 48.00 | 60.00 |
