Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DSVW-M

DSVW-M Banjo Coupling Metric with ED Ring

A 3D drawing of DSVW-M hydraulic adaptor.

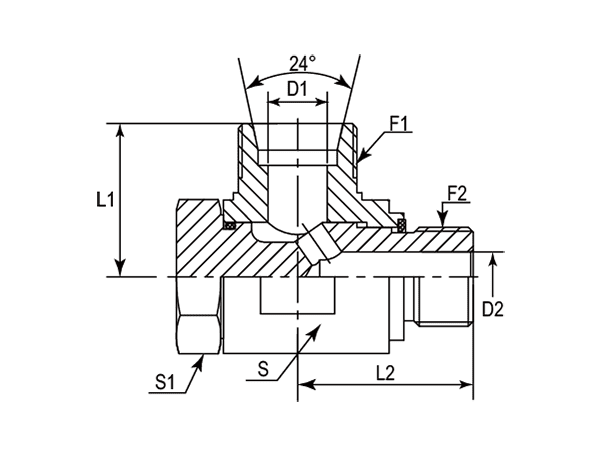

A model drawing of DSVW-M hydraulic adaptor.

DME&JDE Code: DSVW-M
Product Type: hydraulic adaptor
Standard: DIN 2353
Adaptor Connection Type: Male × Male
Thread Types: Metric × Metric
Sealing Method: ED Rings
Other Features: Banjo

Technical Data of DSVW-M

-08
-10
-12

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F1 (Thread)	F2 (Thread)	C	L	D1	D2	S	S1
-	-	Metric	Metric	mm	mm	mm	mm	mm	mm
-01	DSVW-08L-M12	M14X1.5	M12X1.5	23.10	26.00	6.00	7.00	22.00	19.00
-10	DSVW-10L-M14	M16X1.5	M14X1.5	23.10	26.00	8.00	7.00	22.00	19.00
-12	DSVW-12L-M16	M18X1.5	M16X1.5	25.00	28.50	10.00	9.00	27.00	24.00
