* Filter the F1 Thread through selecting the -XX options

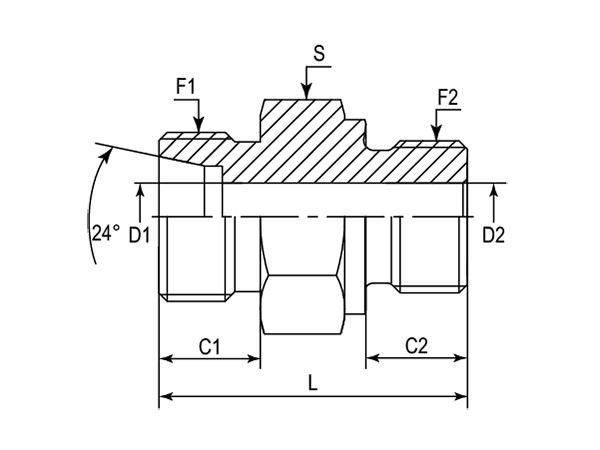

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | UNF | mm | mm | mm | mm | mm | mm |
| -01 | DMC-06L-04FS | M12 × 1.5 | 9/16"-18 | 10.00 | 9.80 | 4.00 | 4.00 | 30.00 | 17 |
| -01 | DMC-06S-04FS | M14 × 1.5 | 9/16"-18 | 12.00 | 9.80 | 4.00 | 4.00 | 32.50 | 19 |
| -08 | DMC-08L-04FS | M14 × 1.5 | 9/16"-18 | 10.00 | 9.80 | 4.37 | 4.37 | 30.00 | 19 |
| -08 | DMC-08L-06FS | M14 × 1.5 | 11/16"-16 | 10.00 | 11.20 | 6.00 | 6.00 | 31.50 | 19 |
| -08 | DMC-08S-04FS | M16 × 1.5 | 9/16"-18 | 12.00 | 9.80 | 4.37 | 4.37 | 32.50 | 22 |
| -08 | DMC-08S-06FS | M16 × 1.5 | 11/16"-16 | 12.00 | 11.20 | 5.00 | 5.00 | 34.00 | 22 |
| -10 | DMC-10L-06FS | M16 × 1.5 | 11/16"-16 | 11.00 | 11.20 | 6.71 | 6.71 | 32.00 | 22 |
| -10 | DMC-10L-08FS | M16 × 1.5 | 13/16"-16 | 11.00 | 12.80 | 8.00 | 8.00 | 34.00 | 22 |
| -10 | DMC-10S-06FS | M18 × 1.5 | 11/16"-16 | 12.00 | 11.20 | 6.71 | 6.71 | 34.00 | 24 |
| -12 | DMC-12L-06FS | M18 × 1.5 | 11/16"-16 | 11.00 | 11.20 | 10.00 | 6.71 | 32.50 | 24 |
| -12 | DMC-12L-08FS | M18 × 1.5 | 13/16"-16 | 11.00 | 12.80 | 9.60 | 9.60 | 34.00 | 24 |
| -12 | DMC-12L-12FS | M18 × 1.5 | 13/16"-12 | 11.00 | 17.02 | 10.00 | 15.47 | 41.50 | 32 |
| -12 | DMC-12S-08FS | M20 × 1.5 | 13/16"-16 | 12.00 | 12.80 | 8.00 | 8.00 | 37.00 | 27 |
| -12 | DMC-12S-10FS | M20 × 1.5 | 1"-14 | 12.00 | 15.49 | 8.00 | 12.29 | 39.50 | 27 |
| -14 | DMC-14S-08FS | M22 × 1.5 | 13/16"-16 | 14.00 | 12.80 | 9.60 | 9.60 | 39.00 | 27 |
| -14 | DMC-14S-10FS | M22 × 1.5 | 1"-14 | 14.00 | 15.50 | 10.00 | 12.50 | 44.00 | 27 |
| -15 | DMC-15L-08FS | M22 × 1.5 | 13/16"-16 | 12.00 | 12.80 | 12.00 | 9.60 | 37.00 | 27 |
| -15 | DMC-15L-10FS | M22 × 1.5 | 1"-14 | 12.00 | 15.50 | 12.00 | 12.00 | 39.00 | 27 |
| -16 | DMC-16S-10FS | M24 × 1.5 | 1"-14 | 14.00 | 15.50 | 12.00 | 12.00 | 44.00 | 27 |
| -18 | DMC-18L-08FS | M26 × 1.5 | 13/16"-16 | 12.00 | 13.00 | 15.00 | 9.50 | 42.00 | 32 |
| -18 | DMC-18L-12FS | M26 × 1.5 | 13/16"-12 | 12.00 | 17.02 | 15.00 | 15.00 | 42.00 | 32 |
| -20 | DMC-20S-12FS | M30 × 2 | 13/16"-12 | 16.00 | 17.02 | 15.47 | 15.47 | 47.00 | 36 |
| -22 | DMC-22L-12FS | M30 × 2 | 13/16"-12 | 14.00 | 17.02 | 19.00 | 15.47 | 45.00 | 36 |
| -22 | DMC-22L-16FS | M30 × 2 | 17/16"-12 | 14.00 | 17.50 | 19.00 | 19.00 | 46.00 | 38 |
| -25 | DMC-25S-12FS | M36 × 2 | 13/16"-12 | 18.00 | 17.02 | 20.00 | 15.47 | 52.00 | 42 |
| -25 | DMC-25S-16FS | M36 × 2 | 17/16"-12 | 18.00 | 17.50 | 20.00 | 20.00 | 52.50 | 42 |
| -28 | DMC-28L-12FS | M36 × 2 | 13/16"-12 | 14.00 | 17.02 | 24.00 | 15.47 | 48.00 | 42 |
| -28 | DMC-28L-16FS | M36 × 2 | 17/16"-12 | 14.00 | 17.50 | 24.00 | 20.60 | 48.50 | 42 |
| -28 | DMC-28L-20FS | M36 × 2 | 111/16"-12 | 14.00 | 17.50 | 24.00 | 26.00 | 48.00 | 46 |
| -30 | DMC-30S-16FS | M42 × 2 | 17/16"-12 | 20.00 | 17.50 | 25.00 | 20.60 | 54.50 | 50 |
| -30 | DMC-30S-20FS | M42 × 2 | 111/16"-12 | 20.00 | 17.50 | 25.00 | 25.00 | 54.00 | 46 |
| -35 | DMC-35L-16FS | M45 × 2 | 17/16"-12 | 16.00 | 17.50 | 30.00 | 20.60 | 53.50 | 55 |
| -35 | DMC-35L-24FS | M45 × 2 | 2"-12 | 16.00 | 17.50 | 30.00 | 32.00 | 51.50 | 55 |
| -38 | DMC-38S-24FS | M52 × 2 | 2"-12 | 22.00 | 17.50 | 32.00 | 32.00 | 57.50 | 55 |
| -42 | DMC-42L-24FS | M52 × 2 | 2"-12 | 16.00 | 17.50 | 36.00 | 32.00 | 51.50 | 55 |
