Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DBUW

DBUW Long Hexagon Metric Male

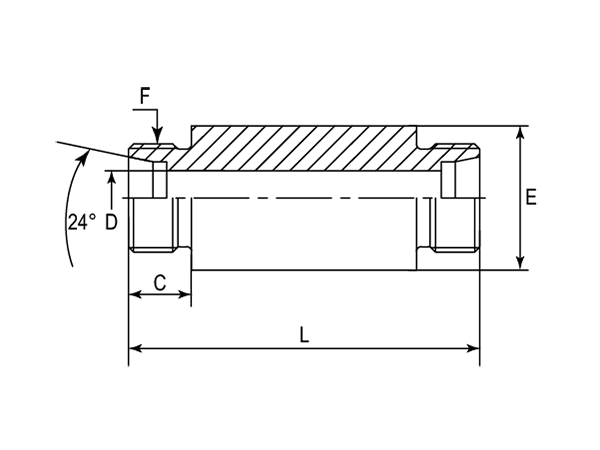

A model drawing of DBUW hydraulic adaptor.

DME&JDE Code: DBUW
Product Type: hydraulic adaptor
Standard: DIN 2353
Structure: Straight
Connection Type: Male
Thread types: Metric
Other Features: Hexagon

Technical Data of DBUW

-06
-08
-10
-12
-15
-16
-20

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F (Thread)	C	D	E	L
-	-	Metric	mm	mm	mm	mm
-01	DBUW-06L	M12X1.5	10.00	4.00	18.00	70.00
-08	DBUW-08L	M14X1.5	10.00	6.00	20.00	70.00
-10	DBUW-10L	M16X1.5	11.00	8.00	22.00	72.00
-12	DBUW-12L	M18X1.5	11.00	10.00	25.00	72.00
-12	DBUW-12S	M20X1.5	12.00	8.00	28.00	74.00
-15	DBUW-15L	M22X1.5	12.00	12.00	28.00	84.00
-16	DBUW-16S	M24X1.5	14.00	12.00	35.00	88.00
-20	DBUW-20S	M30X2	16.00	16.00	38.00	92.00
