* Filter the F1 Thread through selecting the -XX options

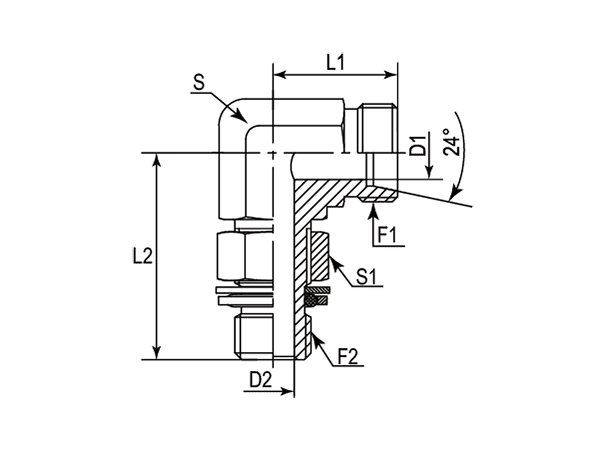

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | BSPP | mm | mm | mm | mm | mm | mm |
| -01 | DL-06L-01GQ | M12X1.5 | 1/8"-28 | 19.00 | 26.00 | 4.00 | 4.40 | 12.00 | 14.00 |
| -01 | DL-06S-02GQ | M14X1.5 | 1/4"-19 | 23.00 | 32.00 | 4.00 | 6.00 | 14.00 | 19.00 |
| -08 | DL-08L-02GQ | M14X1.5 | 1/4"-19 | 21.00 | 32.00 | 6.00 | 7.50 | 14.00 | 19.00 |
| -08 | DL-08L-03GQ | M14X1.5 | 3/8"-19 | 24.00 | 37.00 | 6.00 | 9.90 | 19.00 | 22.00 |
| -08 | DL-08S-02GQ | M16X1.5 | 1/4"-19 | 24.00 | 32.00 | 5.00 | 7.50 | 14.00 | 19.00 |
| -08 | DL-08S-03GQ | M16X1.5 | 3/8"-19 | 24.00 | 37.00 | 5.00 | 9.90 | 19.00 | 22.00 |
| -10 | DL-10L-02GQ | M16X1.5 | 1/4"-19 | 22.00 | 32.00 | 8.00 | 7.50 | 14.00 | 19.00 |
| -10 | DL-10L-03GQ | M16X1.5 | 3/8"-19 | 26.00 | 37.00 | 8.00 | 9.90 | 19.00 | 22.00 |
| -10 | DL-10S-03GQ | M18X1.5 | 3/8"-19 | 25.00 | 37.00 | 7.00 | 9.90 | 19.00 | 22.00 |
| -12 | DL-12L-02GQ | M18X1.5 | 1/4"-19 | 24.00 | 37.00 | 10.00 | 7.50 | 19.00 | 22.00 |
| -12 | DL-12L-03GQ | M18X1.5 | 3/8"-19 | 24.00 | 37.00 | 10.00 | 9.90 | 19.00 | 22.00 |
| -12 | DL-12L-04GQ | M18X1.5 | 1/2"-14 | 27.00 | 44.00 | 10.00 | 12.30 | 22.00 | 27.00 |
| -12 | DL-12S-03GQ | M20X1.5 | 3/8"-19 | 29.00 | 37.00 | 8.00 | 9.90 | 22.00 | 22.00 |
| -12 | DL-12S-04GQ | M20X1.5 | 1/2"-14 | 29.00 | 43.00 | 8.00 | 12.30 | 22.00 | 27.00 |
| -14 | DL-14S-04GQ | M22X1.5 | 1/2"-14 | 30.00 | 44.00 | 10.00 | 10.50 | 22.00 | 27.00 |
| -15 | DL-15L-03GQ | M22X1.5 | 3/8"-19 | 28.00 | 39.00 | 12.00 | 9.90 | 22.00 | 22.00 |
| -15 | DL-15L-04GQ | M22X1.5 | 1/2"-14 | 28.00 | 44.00 | 12.00 | 12.30 | 22.00 | 27.00 |
| -16 | DL-16S-04GQ | M24X1.5 | 1/2"-14 | 33.00 | 47.00 | 12.00 | 12.30 | 27.00 | 27.00 |
| -18 | DL-18L-04GQ | M26X1.5 | 1/2"-14 | 33.00 | 47.00 | 15.00 | 12.30 | 27.00 | 27.00 |
| -18 | DL-18L-06GQ | M26X1.5 | 3/4"-14 | 33.00 | 47.00 | 15.00 | 15.00 | 27.00 | 36.00 |
| -20 | DL-20S-06GQ | M30X2 | 3/4"-14 | 37.00 | 51.00 | 16.00 | 15.50 | 30.00 | 36.00 |
| -22 | DL-22L-06GQ | M30X2 | 3/4"-14 | 35.50 | 49.00 | 19.00 | 15.50 | 30.00 | 36.00 |
| -25 | DL-25S-08GQ | M36X2 | 1"-11 | 42.00 | 59.00 | 20.00 | 21.50 | 36.00 | 41.00 |
| -28 | DL-28L-08GQ | M36X2 | 1"-11 | 40.00 | 59.00 | 24.00 | 21.50 | 36.00 | 41.00 |
| -30 | DL-30S-10GQ | M42X2 | 1-1/4"-11 | 49.00 | 59.00 | 25.00 | 27.50 | 41.00 | 50.00 |
| -35 | DL-35L-10GQ | M45X2 | 1-1/4"-11 | 49.00 | 61.00 | 30.00 | 27.50 | 48.00 | 50.00 |
| -38 | DL-38S-12GQ | M52X2 | 1-1/2"-11 | 57.00 | 66.00 | 32.00 | 33.00 | 55.00 | 55.00 |
| -42 | DL-42L-12GQ | M52X2 | 1-1/2"-11 | 51.00 | 66.00 | 36.00 | 33.00 | 55.00 | 55.00 |
