DMCQ-JC DIN 2353 Male Connector O Ring and Retaining Ring (JIC male)

  • DME&JDE Code: DMCQ-JC
  • Product Type: hydraulic adaptor
  • Standard: DIN 2353
  • Structure: Straight
  • Connection Type: Male × Male
  • Thread Types: Metric × UNF
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DMCQ-JC
  • -06
  • -08
  • -10
  • -12
  • -14
  • -15
  • -16
  • -18
  • -20
  • -22
  • -25
  • -28
  • -30
  • -35
  • -38
  • -42

* Filter the F1 Thread through selecting the -XX options

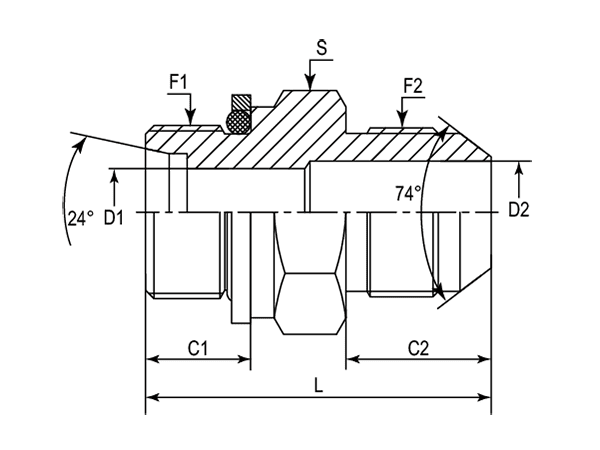

A drawing of DMCQ-JC hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S
- - METRIC UNF mm mm mm mm mm mm
-01 DMCQ-06LL-04JC M10X1 7/16"-20 8 13.97 4.37 4.37 30.5 14
-01 DMCQ-06L-04JC M12X1.5 7/16"-20 11 13.97 4 4 35 19
-01 DMCQ-06S-04JC M14X1.5 7/16"-20 12 13.97 4 4 34 17
-08 DMCQ-08LL-04JC M12X1 7/16"-20 11 13.97 5.3 4.37 32.5 17
-08 DMCQ-08LL-06JC M12X1 9/16"-18 11 14.12 5.3 7.54 33 17
-08 DMCQ-08L-04JC M14X1.5 7/16"-20 11 13.97 6 4.37 35 19
-08 DMCQ-08L-06JC M14X1.5 9/16"-18 11 14.12 6 7.54 35 19
-08 DMCQ-08S-04JC M16X1.5 7/16"-20 12 13.97 4.37 4.37 34 17
-08 DMCQ-08S-06JC M16X1.5 9/16"-18 11.5 14.12 5 5 34.5 22
-10 DMCQ-10LL-04JC M14X1.5 7/16"-20 11 13.97 8 4.37 33.5 19
-10 DMCQ-10L-06JC M16X1.5 9/16"-18 11 14.12 7.54 7.54 35 22
-10 DMCQ-10L-08JC M16X1.5 3/4"-16 11 16.69 8 8 38 22
-10 DMCQ-10S-06JC M18X1.5 9/16"-18 12.5 14.12 7 7 35.5 24
-10 DMCQ-10S-08JC M18X1.5 3/4"-16 12 16.69 7 9.93 38 22
-12 DMCQ-12L-06JC M18X1.5 9/16"-18 12 14.12 10 7.54 37.5 24
-12 DMCQ-12L-08JC M18X1.5 3/4"-16 11 16.69 9.93 9.93 37 24
-12 DMCQ-12S-06JC M20X1.5 9/16"-18 12.5 14.12 7.54 7.54 36 27
-12 DMCQ-12S-08JC M20X1.5 3/4"-16 12.5 16.69 8 9.93 38.5 27
-12 DMCQ-12S-10JC M20X1.5 7/8"-14 12.5 19.25 8 12.29 42.5 27
-14 DMCQ-14S-06JC M22X1.5 9/16"-18 14 14.12 10 7.54 37 27
-14 DMCQ-14S-10JC M22X1.5 7/8"-14 14 19.25 10 12.29 44 24
-15 DMCQ-15L-06JC M22X1.5 9/16"-18 14 14.12 12 7.54 39.5 27
-15 DMCQ-15L-08JC M22X1.5 3/4"-16 12 16.69 12 9.93 39 27
-15 DMCQ-15L-10JC M22X1.5 7/8"-14 13 19.25 12 12 44.5 27
-15 DMCQ-15L-12JC M22X1.5 11/16"-12 13 21.95 12 15.47 47 27
-16 DMCQ-16S-08JC M24X1.5 3/4"-16 14 16.69 12 9.93 43.5 32
-16 DMCQ-16S-10JC M24X1.5 7/8"-14 14 19.25 12 12 46 30
-16 DMCQ-16S-12JC M24X1.5 11/16"-12 14 21.95 12 15.47 49.5 32
-18 DMCQ-18L-10JC M26X1.5 7/8"-14 14 19.25 15 12.29 46.5 32
-18 DMCQ-18L-12JC M26X1.5 11/16"-12 14 21.95 15 15 49.5 32
-18 DMCQ-18L-16JC M26X1.5 15/16"-12 14 23.14 15 21.44 53.5 36
-20 DMCQ-20S-12JC M30X2 11/16"-12 16 21.95 15.47 15.47 52 36
-20 DMCQ-20S-16JC M30X2 15/16"-12 16 23.14 16 21.44 51.5 36
-22 DMCQ-22L-12JC M30X2 11/16"-12 16 21.95 19 15.47 52 36
-25 DMCQ-25S-12JC M36X2 11/16"-12 17 21.95 20 15.47 50 41
-25 DMCQ-25S-16JC M36X2 15/16"-12 17 23.14 20 21.44 53 41
-28 DMCQ-28L-16JC M36X2 15/16"-12 14 23.14 24 21.44 53.5 41
-30 DMCQ-30S-16JC M42X2 15/16"-12 17.5 23.14 25 21.44 54.5 50
-30 DMCQ-30S-20JC M42X2 15/8"-12 17.5 24.33 25 27.38 56 50
-35 DMCQ-35L-20JC M45X2 15/8"-12 16 24.33 30 27.38 51 46
-38 DMCQ-38S-20JC M52X2 15/8"-12 22 24.33 32 27.38 67 60
-38 DMCQ-38S-24JC M52X2 21/2"-12 22 27.5 32 32 70 60
-42 DMCQ-42L-24JC M52X2 17/8"-12 16 27.5 36 33.32 58.5 55
