* Filter the F1 Thread through selecting the -XX options

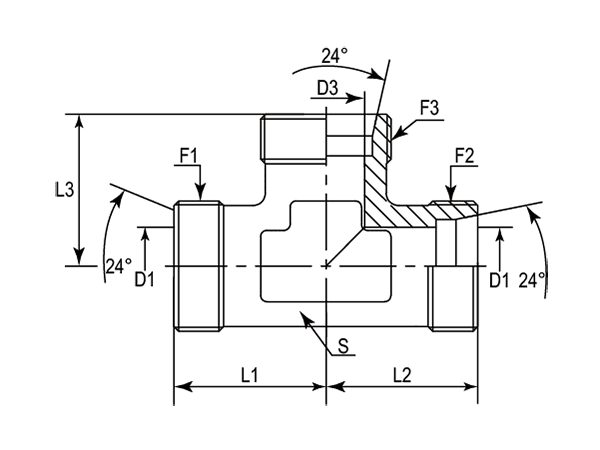

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | F3 (Thread) | D1 | D2 | D3 | L1 | L2 | L3 | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | METRIC | METRIC | mm | mm | mm | mm | mm | mm | mm |
| -01 | DT-04LL | M8X1 | M8X1 | M8X1 | 3.00 | 3.00 | 3.00 | 15.00 | 15.00 | 15.00 | 9 |
| -06 | DT-06LL | M10X1 | M10X1 | M10X1 | 4.50 | 4.50 | 4.50 | 15.00 | 15.00 | 15.00 | 9 |
| -06 | DT-06S | M14X1.5 | M14X1.5 | M14X1.5 | 4.00 | 4.00 | 4.00 | 23.00 | 23.00 | 23.00 | 12 |
| -06 | DT-06L | M12X1.5 | M12X1.5 | M12X1.5 | 4.00 | 4.00 | 4.00 | 19.00 | 19.00 | 19.00 | 12 |
| -08 | DT-08LL | M12X1 | M12X1 | M12X1 | 6.00 | 6.00 | 6.00 | 17.50 | 17.50 | 17.50 | 12 |
| -08 | DT-08L | M14X1.5 | M14X1.5 | M14X1.5 | 6.00 | 6.00 | 6.00 | 21.00 | 21.00 | 21.00 | 12 |
| -08 | DT-08S | M16X1.5 | M16X1.5 | M16X1.5 | 5.00 | 5.00 | 5.00 | 24.00 | 24.00 | 24.00 | 14 |
| -10 | DT-10L | M16X1.5 | M16X1.5 | M16X1.5 | 8.00 | 8.00 | 8.00 | 22.00 | 22.00 | 22.00 | 14 |
| -10 | DT-10S | M18X1.5 | M18X1.5 | M18X1.5 | 7.00 | 7.00 | 7.00 | 25.00 | 25.00 | 25.00 | 17 |
| -12 | DT-12L | M18X1.5 | M18X1.5 | M18X1.5 | 10.00 | 10.00 | 10.00 | 24.00 | 24.00 | 24.00 | 17 |
| -12 | DT-12S | M20X1.5 | M20X1.5 | M20X1.5 | 8.00 | 8.00 | 8.00 | 29.00 | 29.00 | 29.00 | 17 |
| -14 | DT-14S | M22X1.5 | M22X1.5 | M22X1.5 | 10.00 | 10.00 | 10.00 | 30.00 | 30.00 | 30.00 | 19 |
| -15 | DT-15L | M22X1.5 | M22X1.5 | M22X1.5 | 12.00 | 12.00 | 12.00 | 28.00 | 28.00 | 28.00 | 19 |
| -16 | DT-16S | M24X1.5 | M24X1.5 | M24X1.5 | 12.00 | 12.00 | 12.00 | 33.00 | 33.00 | 33.00 | 24 |
| -18 | DT-18L | M26X1.5 | M26X1.5 | M26X1.5 | 15.00 | 15.00 | 15.00 | 31.00 | 31.00 | 31.00 | 24 |
| -20 | DT-20S | M30X2 | M30X2 | M30X2 | 16.00 | 16.00 | 16.00 | 37.00 | 37.00 | 37.00 | 27 |
| -22 | DT-22L | M30X2 | M30X2 | M30X2 | 19.00 | 19.00 | 19.00 | 35.00 | 35.00 | 35.00 | 27 |
| -25 | DT-25S | M36X2 | M36X2 | M36X2 | 20.00 | 20.00 | 20.00 | 42.00 | 42.00 | 42.00 | 36 |
| -28 | DT-28L | M36X2 | M36X2 | M36X2 | 24.00 | 24.00 | 24.00 | 38.00 | 38.00 | 38.00 | 36 |
| -30 | DT-30S | M42X2 | M42X2 | M42X2 | 25.00 | 25.00 | 25.00 | 49.00 | 49.00 | 49.00 | 41 |
| -35 | DT-35L | M45X2 | M45X2 | M45X2 | 30.00 | 30.00 | 30.00 | 45.00 | 45.00 | 45.00 | 41 |
| -38 | DT-38S | M52X2 | M52X2 | M52X2 | 32.00 | 32.00 | 32.00 | 57.00 | 57.00 | 57.00 | 50 |
| -42 | DT-42L | M52X2 | M52X2 | M52X2 | 36.00 | 36.00 | 36.00 | 51.00 | 51.00 | 51.00 | 50 |
