* Filter the F1 Thread through selecting the -XX options

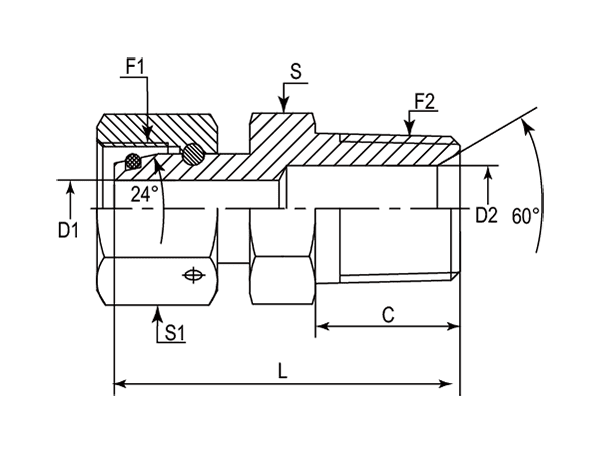

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D1 | D2 | L | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | NPTF | mm | mm | mm | mm | mm | mm |
| -01 | DEGE-06L-01N | M12X1.5 | 1/8"-27 | 9.65 | 3.00 | 4.78 | 31.00 | 14.00 | 14.00 |
| -01 | DEGE-06S-02N | M14X1.5 | 1/4"-18 | 14.22 | 3.00 | 7.14 | 37.00 | 17.00 | 17.00 |
| -08 | DEGE-08L-02N | M14X1.5 | 1/4"-18 | 14.22 | 4.00 | 7.14 | 37.00 | 17.00 | 17.00 |
| -08 | DEGE-08S-02N | M16X1.5 | 1/4"-18 | 14.22 | 4.00 | 7.14 | 36.00 | 14.00 | 19.00 |
| -10 | DEGE-10L-02N | M16X1.5 | 1/4"-18 | 14.22 | 6.00 | 6.00 | 38.50 | 17.00 | 19.00 |
| -10 | DEGE-10S-03N | M18X1.5 | 3/8"-18 | 14.22 | 6.00 | 10.31 | 38.00 | 19.00 | 22.00 |
| -12 | DEGE-12L-02N | M18X1.5 | 1/4"-18 | 14.22 | 7.14 | 7.14 | 40.00 | 19.00 | 22.00 |
| -12 | DEGE-12L-03N | M18X1.5 | 3/8"-18 | 14.22 | 7.50 | 10.31 | 40.00 | 19.00 | 22.00 |
| -12 | DEGE-12S-03N | M20X1.5 | 3/8"-18 | 14.22 | 8.00 | 10.31 | 41.00 | 19.00 | 24.00 |
| -14 | DEGE-14S-04N | M22X1.5 | 1/2"-14 | 19.05 | 8.00 | 13.49 | 47.50 | 22.00 | 27.00 |
| -15 | DEGE-15L-04N | M22X1.5 | 1/2"-14 | 19.05 | 10.00 | 13.49 | 46.00 | 22.20 | 27.00 |
| -16 | DEGE-16S-04N | M24X1.5 | 1/2"-14 | 19.05 | 10.00 | 13.49 | 46.00 | 22.00 | 30.00 |
| -18 | DEGE-18L-04N | M26X1.5 | 1/2"-14 | 19.05 | 12.50 | 12.50 | 48.00 | 27.00 | 32.00 |
| -20 | DEGE-20S-06N | M30X2 | 3/4"-14 | 19.05 | 14.00 | 18.26 | 51.50 | 30.00 | 36.00 |
| -22 | DEGE-22L-06N | M30X2 | 3/4"-14 | 19.05 | 17.00 | 17.00 | 50.00 | 31.75 | 36.00 |
| -25 | DEGE-25S-08N | M36X2 | 1"-11-1/2 | 23.88 | 18.00 | 23.83 | 61.20 | 36.00 | 46.00 |
| -28 | DEGE-28L-08N | M36X2 | 1"-11-1/2 | 23.88 | 22.00 | 23.83 | 58.50 | 36.00 | 41.00 |
| -30 | DEGE-30S-10N | M42X2 | 1-1/4"-11-1/2 | 24.64 | 22.00 | 31.75 | 62.00 | 46.00 | 50.00 |
| -35 | DEGE-35L-10N | M45X2 | 1-1/4"-11-1/2 | 24.64 | 28.00 | 31.75 | 60.00 | 46.00 | 50.00 |
| -38 | DEGE-38S-12N | M52X2 | 1-1/2"-11-1/2 | 25.40 | 30.00 | 38.10 | 79.50 | 50.00 | 60.00 |
| -42 | DEGE-42L-12N | M52X2 | 1-1/2"-11-1/2 | 25.40 | 34.00 | 38.10 | 64.00 | 55.00 | 60.00 |
