Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DAK

DAK Welding Nipple with O Ring

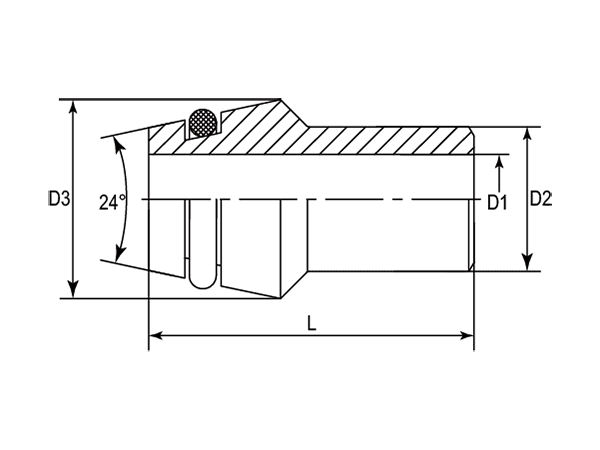

A model drawing of DAK hydraulic adaptor.

DME&JDE Code: DAK
Product Type: hydraulic adaptor
Standard: DIN 2353
Structure: Straight
Sealing Method: Welding and O Rings

Technical Data of DAK

-06
-08
-10
-12
-15
-16
-18
-20
-22
-28

* Filter the F1 Thread through selecting the -XX options

-	Part Number	L	D1	D2	D3
-	-	mm	mm	mm	mm
-01	DAK-06L	31.00	3.00	6.00	9.00
-01	DAK-06S	31.00	2.50	6.00	9.00
-08	DAK-08L	31.00	5.00	8.00	11.00
-08	DAK-08S	31.00	4.00	8.00	11.00
-10	DAK-10L	32.50	7.00	10.00	14.00
-10	DAK-10S	32.50	6.00	10.00	14.00
-12	DAK-12L	32.50	8.00	12.00	16.00
-12	DAK-12S	32.50	7.00	12.00	16.00
-15	DAK-15L	34.00	10.00	15.00	18.00
-16	DAK-16S	39.00	11.00	16.00	20.00
-18	DAK-18L	35.50	13.00	18.00	21.00
-20	DAK-20S	45.00	14.00	20.00	24.00
-22	DAK-22L	38.50	17.00	22.00	25.00
-28	DAK-28L	41.50	23.00	28.00	31.00
