* Filter the F1 Thread through selecting the -XX options

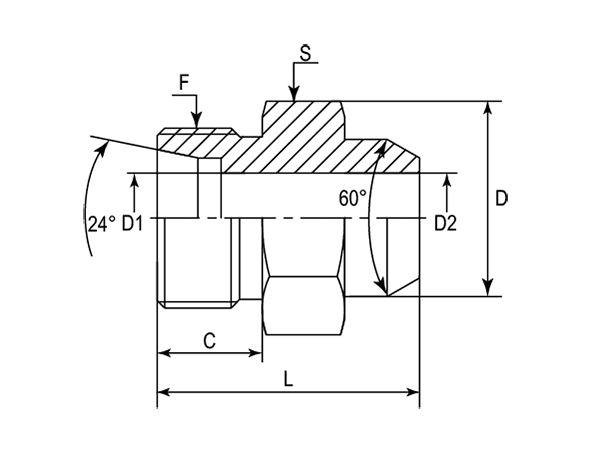

| - | Part Number | F (Thread) | C | D | D1/D2 | L | S |
|---|---|---|---|---|---|---|---|
| - | - | Metric | mm | mm | mm | mm | mm |
| -01 | DAS-06L | M12X1.5 | 10.00 | 10.00 | 4.00 | 21.00 | 12.00 |
| -01 | DAS-06S | M14X1.5 | 12.00 | 11.00 | 4.00 | 26.00 | 14.00 |
| -08 | DAS-08L | M14X1.5 | 10.00 | 12.00 | 6.00 | 23.00 | 14.00 |
| -08 | DAS-08S | M16X1.5 | 12.00 | 13.00 | 5.00 | 28.00 | 17.00 |
| -10 | DAS-10L | M16X1.5 | 11.00 | 14.00 | 8.00 | 25.00 | 17.00 |
| -12 | DAS-12L | M18X1.5 | 11.00 | 16.00 | 10.00 | 25.00 | 19.00 |
| -12 | DAS-12S | M20X1.5 | 12.00 | 17.00 | 8.00 | 32.00 | 22.00 |
| -15 | DAS-15L | M22X1.5 | 12.00 | 19.00 | 12.00 | 29.00 | 22.00 |
| -16 | DAS-16S | M24X1.5 | 14.00 | 21.00 | 12.00 | 35.00 | 27.00 |
| -18 | DAS-18L | M26X1.5 | 12.00 | 22.00 | 15.00 | 31.00 | 27.00 |
| -20 | DAS-20S | M30X2 | 16.00 | 26.00 | 16.00 | 40.00 | 32.00 |
| -22 | DAS-22L | M30X2 | 14.00 | 27.00 | 19.00 | 36.00 | 32.00 |
| -25 | DAS-25S | M36X2 | 18.00 | 31.00 | 20.00 | 44.00 | 41.00 |
| -30 | DAS-30S | M42X2 | 20.00 | 36.00 | 25.00 | 49.00 | 46.00 |
| -35 | DAS-35L | M45X2 | 16.00 | 40.00 | 30.00 | 43.00 | 46.00 |
| -38 | DAS-38S | M52X2 | 22.00 | 44.00 | 32.00 | 54.00 | 55.00 |
| -42 | DAS-42L | M52X2 | 16.00 | 46.00 | 36.00 | 46.00 | 55.00 |
