* Filter the F1 Thread through selecting the -XX options

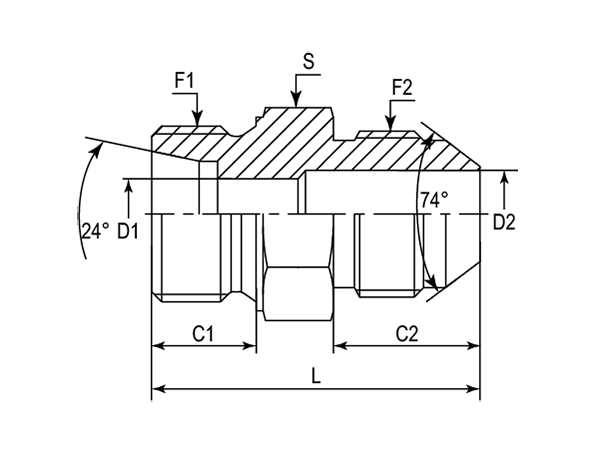

| - | Part Number | F1 (Thread) | F2 (Thread) | C | L | D1 | D2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | UNF | mm | mm | mm | mm | mm | mm |
| -01 | DMC-04LL-04JC | M8X1 | 7/16"-20 | 8.00 | 13.97 | 3.00 | 4.37 | 29.00 | 12.00 |
| -06 | DMC-06L-04JC | M12X1.5 | 7/16"-20 | 10.00 | 13.97 | 4.00 | 4.00 | 30.00 | 14.00 |
| -06 | DMC-06S-04JC | M14X1.5 | 7/16"-20 | 12.00 | 13.97 | 4.00 | 4.00 | 33.00 | 19.00 |
| -06 | DMC-06S-06JC | M14X1.5 | 9/16"-18 | 12.00 | 14.12 | 4.00 | 7.54 | 35.00 | 19.00 |
| -08 | DMC-08L-04JC | M14X1.5 | 7/16"-20 | 10.00 | 13.97 | 6.00 | 4.37 | 30.00 | 14.00 |
| -08 | DMC-08L-06JC | M14X1.5 | 9/16"-18 | 10.00 | 14.22 | 6.00 | 7.54 | 31.00 | 15.88 |
| -08 | DMC-08LL-04JC | M12X1 | 7/16"-20 | 9.00 | 13.97 | 4.37 | 4.37 | 31.00 | 17.00 |
| -08 | DMC-08LL-06JC | M12X1 | 9/16"-18 | 9.00 | 14.12 | 6.00 | 7.54 | 31.00 | 17.00 |
| -08 | DMC-08S-04JC | M16X1.5 | 7/16"-20 | 12.00 | 13.97 | 4.37 | 4.37 | 36.00 | 22.00 |
| -08 | DMC-08S-06JC | M16X1.5 | 9/16"-18 | 12.00 | 14.12 | 5.00 | 7.54 | 36.00 | 22.00 |
| -10 | DMC-10L-04JC | M16X1.5 | 7/16"-20 | 11.00 | 13.97 | 8.00 | 4.37 | 32.00 | 22.00 |
| -10 | DMC-10L-06JC | M16X1.5 | 9/16"-18 | 11.00 | 14.12 | 7.54 | 7.54 | 32.50 | 17.00 |
| -10 | DMC-10L-08JC | M16X1.5 | 3/4"-16 | 11.00 | 16.69 | 8.00 | 9.93 | 37.50 | 22.00 |
| -10 | DMC-10LL-04JC | M14X1.5 | 7/16"-20 | 11.00 | 13.97 | 8.00 | 4.37 | 32.00 | 19.00 |
| -10 | DMC-10S-04JC | M18X1.5 | 7/16"-20 | 12.00 | 13.97 | 7.00 | 4.37 | 35.00 | 24.00 |
| -10 | DMC-10S-06JC | M18X1.5 | 9/16"-18 | 12.00 | 14.12 | 7.00 | 7.00 | 35.00 | 24.00 |
| -10 | DMC-10S-08JC | M18X1.5 | 3/4"-16 | 12.00 | 16.69 | 7.00 | 9.93 | 38.00 | 24.00 |
| -12 | DMC-12L-06JC | M18X1.5 | 9/16"-18 | 11.00 | 14.12 | 10.00 | 7.54 | 32.00 | 19.00 |
| -12 | DMC-12L-08JC | M18X1.5 | 3/4"-16 | 11.00 | 16.69 | 9.93 | 9.93 | 39.00 | 24.00 |
| -12 | DMC-12S-06JC | M20X1.5 | 9/16"-18 | 12.00 | 14.12 | 7.54 | 7.54 | 36.10 | 22.00 |
| -12 | DMC-12S-08JC | M20X1.5 | 3/4"-16 | 12.00 | 16.69 | 8.00 | 9.93 | 38.50 | 22.00 |
| -12 | DMC-12S-10JC | M20X1.5 | 7/8"-14 | 12.00 | 19.25 | 8.00 | 12.29 | 41.50 | 27.00 |
| -14 | DMC-14S-06JC | M22X1.5 | 9/16"-18 | 14.00 | 14.12 | 10.00 | 7.54 | 40.00 | 27.00 |
| -14 | DMC-14S-08JC | M22X1.5 | 3/4"-16 | 14.00 | 16.69 | 9.93 | 9.93 | 41.00 | 27.00 |
| -14 | DMC-14S-10JC | M22X1.5 | 7/8"-14 | 14.00 | 19.25 | 10.00 | 12.29 | 43.50 | 27.00 |
| -15 | DMC-15L-06JC | M22X1.5 | 9/16"-18 | 12.00 | 14.12 | 12.00 | 7.54 | 36.00 | 27.00 |
| -15 | DMC-15L-08JC | M22X1.5 | 3/4"-16 | 12.00 | 16.69 | 12.00 | 9.93 | 39.00 | 27.00 |
| -15 | DMC-15L-10JC | M22X1.5 | 7/8"-14 | 12.00 | 19.25 | 12.00 | 12.00 | 38.50 | 24.00 |
| -15 | DMC-15L-12JC | M22X1.5 | 1-1/16''-12 | 12.00 | 21.95 | 12.00 | 15.47 | 44.50 | 27.00 |
| -16 | DMC-16L-12JC | M24X1.5 | 1-1/16''-12 | 12.00 | 21.95 | 12.00 | 15.47 | 45.00 | 30.00 |
| -16 | DMC-16S-08JC | M24X1.5 | 3/4"-16 | 14.00 | 16.69 | 12.00 | 9.93 | 42.00 | 30.00 |
| -16 | DMC-16S-10JC | M24X1.5 | 7/8"-14 | 14.00 | 19.25 | 12.00 | 12.00 | 45.50 | 30.00 |
| -16 | DMC-16S-12JC | M24X1.5 | 1-1/16''-12 | 14.00 | 21.95 | 12.00 | 15.47 | 47.50 | 30.00 |
| -18 | DMC-18L-08JC | M26X1.5 | 3/4"-16 | 12.00 | 16.69 | 15.00 | 9.93 | 41.00 | 32.00 |
| -18 | DMC-18L-10JC | M26X1.5 | 7/8"-14 | 12.00 | 19.25 | 15.00 | 12.29 | 43.50 | 32.00 |
| -18 | DMC-18L-12JC | M26X1.5 | 1-1/16''-12 | 12.00 | 21.95 | 15.00 | 15.00 | 48.00 | 32.00 |
| -20 | DMC-20S-10JC | M30X2 | 7/8"-14 | 16.00 | 19.25 | 16.00 | 12.29 | 49.00 | 36.00 |
| -20 | DMC-20S-12JC | M30X2 | 1-1/16''-12 | 16.00 | 21.95 | 15.47 | 15.47 | 50.00 | 36.00 |
| -22 | DMC-22L-12JC | M30X2 | 1-1/16''-12 | 14.00 | 21.95 | 19.00 | 15.47 | 47.80 | 36.00 |
| -22 | DMC-22L-16JC | M30X2 | 1-5/16''-12 | 14.00 | 23.14 | 19.00 | 21.44 | 49.00 | 36.00 |
| -25 | DMC-25S-12JC | M36X2 | 1-1/16''-12 | 18.00 | 21.95 | 20.00 | 15.47 | 54.00 | 41.00 |
| -25 | DMC-25S-16JC | M36X2 | 1-5/16''-12 | 18.00 | 23.14 | 20.00 | 20.00 | 53.50 | 41.00 |
| -25 | DMC-25S-20JC | M36X2 | 1-5/8''-12 | 18.00 | 24.33 | 20.00 | 27.38 | 54.50 | 46.00 |
| -27 | DMC-27L-20JC | M38X1.5 | 1-5/8''-12 | 14.00 | 24.33 | 23.00 | 23.00 | 52.00 | 46.00 |
| -27 | DMC-27L-24JC | M38X1.5 | 1-7/8''-12 | 14.00 | 27.51 | 23.00 | 33.32 | 56.00 | 50.00 |
| -28 | DMC-28L-16JC | M36X2 | 1-5/16''-12 | 14.00 | 23.14 | 24.00 | 21.44 | 51.00 | 41.00 |
| -30 | DMC-30S-16JC | M42X2 | 1-5/16''-12 | 20.00 | 23.14 | 25.00 | 21.44 | 58.00 | 50.00 |
| -35 | DMC-35L-20JC | M45X2 | 1-5/8''-12 | 16.00 | 24.33 | 30.00 | 27.38 | 57.00 | 55.00 |
| -38 | DMC-38S-20JC | M52X2 | 1-5/8''-12 | 22.00 | 24.33 | 32.00 | 27.38 | 64.00 | 60.00 |
| -38 | DMC-38S-32JC | M52X2 | 2-1/2''-12 | 22.00 | 33.86 | 32.00 | 45.25 | 74.50 | 65.00 |
| -42 | DMC-42L-20JC | M52X2 | 1-5/8''-12 | 16.00 | 24.33 | 36.00 | 27.38 | 58.00 | 60.00 |
