* Filter the F1 Thread through selecting the -XX options

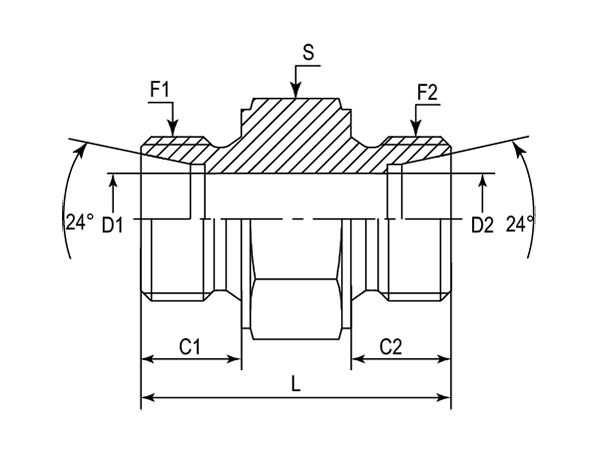

| - | Part Number | F1/F2 (Thread) | C1/C2 | D1/D2 | L | S |
|---|---|---|---|---|---|---|
| - | - | Metric | mm | mm | mm | mm |
| -01 | DU-LH-04LL | M8X1 | 8.00 | 8.00 | 24.00 | 12.00 |
| -06 | DU-LH-06L | M12X1.5 | 10.00 | 4.00 | 30.00 | 17.00 |
| -08 | DU-LH-08L | M14X1.5 | 10.00 | 6.00 | 30.00 | 19.00 |
| -10 | DU-LH-10L | M16X1.5 | 11.00 | 8.00 | 32.00 | 22.00 |
| -12 | DU-LH-12L | M18X1.5 | 11.00 | 10.00 | 34.00 | 24.00 |
| -12 | DU-LH-12S | M20X1.5 | 12.00 | 8.00 | 36.50 | 27.00 |
| -15 | DU-LH-15L | M22X1.5 | 12.00 | 12.00 | 37.00 | 27.00 |
| -16 | DU-LH-16S | M24X1.5 | 14.00 | 12.00 | 40.00 | 30.00 |
| -18 | DU-LH-18L | M26X1.5 | 12.00 | 15.00 | 39.00 | 32.00 |
| -22 | DU-LH-22L | M30X2 | 14.00 | 19.00 | 42.00 | 36.00 |
| -25 | DU-LH-25S | M36X2 | 18.00 | 20.00 | 53.00 | 46.00 |
| -28 | DU-LH-28L | M36X2 | 14.00 | 24.00 | 44.50 | 46.00 |
| -30 | DU-LH-30A | M30X1.5 | 14.00 | 19.00 | 44.00 | 36.00 |
| -30 | DU-LH-30S | M42X2 | 20.00 | 25.00 | 56.00 | 50.00 |
| -35 | DU-LH-35L | M45X2 | 16.00 | 30.00 | 52.00 | 55.00 |
| -M27 | DU-LH-M27 | M27X2 | 12.00 | 15.00 | 39.00 | 32.00 |
| -M27 | DU-LH-M27A | M27X1.5 | 12.00 | 15.00 | 39.00 | 32.00 |
