* Filter the F1 Thread through selecting the -XX options

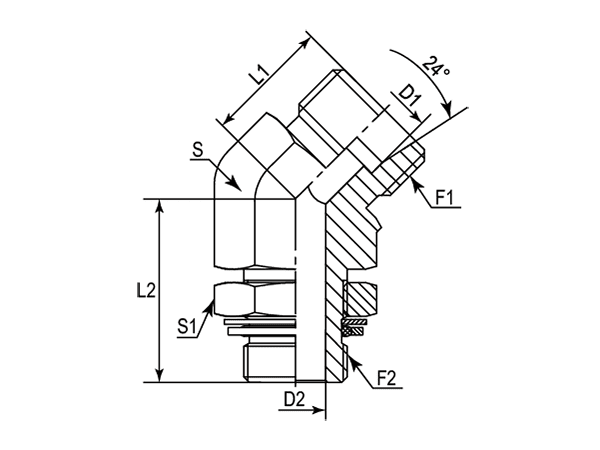

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | D1 | D2 | L1 | L2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | METRIC | mm | mm | mm | mm | mm | mm |
| -01 | DL4-06L-M10Q | M12X1.5 | M10X1 | 4 | 4.5 | 17 | 27 | 14 | 14 |
| -01 | DL4-06L-M14Q | M12X1.5 | M14X1.5 | 4 | 7.5 | 24 | 29 | 14 | 19 |
| -01 | DL4-06S-M12Q | M14X1.5 | M12X1.5 | 4 | 4 | 16 | 27 | 14 | 17 |
| -01 | DL4-06S-M14Q | M14X1.5 | M14X1.5 | 4 | 6 | 16 | 27 | 14 | 19 |
| -08 | DL4-08L-M12Q | M14X1.5 | M12X1.5 | 6 | 4 | 19 | 27 | 14 | 17 |
| -08 | DL4-08L-M14Q | M14X1.5 | M14X1.5 | 6 | 7.5 | 19 | 29 | 14 | 19 |
| -08 | DL4-08L-M16Q | M14X1.5 | M16X1.5 | 6 | 9 | 19 | 33 | 19 | 22 |
| -08 | DL4-08S-M14Q | M16X1.5 | M14X1.5 | 5 | 6 | 19 | 29 | 14 | 19 |
| -10 | DL4-10L-M22Q | M16X1.5 | M22X1.5 | 10 | 14 | 19 | 38.5 | 22 | 27 |
| -10 | DL4-10L-M14Q | M16X1.5 | M14X1.5 | 8 | 7.5 | 19 | 29 | 14 | 19 |
| -10 | DL4-10L-M16Q | M16X1.5 | M16X1.5 | 8 | 9 | 20 | 33 | 19 | 27 |
| -10 | DL4-10S-M14Q | M18X1.5 | M14X1.5 | 7 | 6 | 21 | 29 | 14 | 19 |
| -10 | DL4-10S-M16Q | M18X1.5 | M16X1.5 | 7 | 7 | 20 | 33 | 19 | 22 |
| -12 | DL4-12L-M16Q | M18X1.5 | M16X1.5 | 10 | 9 | 21 | 33 | 19 | 22 |
| -12 | DL4-12L-M22Q | M18X1.5 | M22X1.5 | 12 | 14 | 21 | 38.5 | 22 | 27 |
| -12 | DL4-12S-M16Q | M20X1.5 | M16X1.5 | 8 | 7 | 24 | 33 | 19 | 22 |
| -12 | DL4-12S-M18Q | M20X1.5 | M18X1.5 | 8 | 9 | 21 | 33 | 22 | 24 |
| -12 | DL4-12S-M22Q | M20X1.5 | M22X1.5 | 8 | 12 | 24 | 38.5 | 22 | 27 |
| -14 | DL4-14S-M20Q | M22X1.5 | M20X1.5 | 10 | 10 | 24 | 39 | 22 | 27 |
| -15 | DL4-15L-M16Q | M22X1.5 | M16X1.5 | 12 | 9 | 22 | 33 | 19 | 22 |
| -15 | DL4-15L-M18Q | M22X1.5 | M18X1.5 | 12 | 11 | 24 | 36 | 22 | 24 |
| -15 | DL4-15L-M22Q | M22X1.5 | M22X1.5 | 12 | 14 | 24 | 42 | 27 | 27 |
| -16 | DL4-16S-M22Q | M24X1.5 | M22X1.5 | 12 | 12 | 24 | 38.5 | 22 | 27 |
| -18 | DL4-18L-M22Q | M26X1.5 | M22X1.5 | 15 | 14 | 24 | 38.5 | 22 | 27 |
| -18 | DL4-18L-M27Q | M26X1.5 | M27X2 | 15 | 18 | 24 | 44 | 27 | 32 |
| -20 | DL4-20S-M27Q | M30X2 | M27X2 | 16 | 15 | 26.5 | 44 | 27 | 32 |
| -22 | DL4-22L-M27Q | M30X2 | M27X2 | 19 | 18 | 26 | 46 | 27 | 32 |
| -25 | DL4-25S-M27Q | M36X2 | M27X2 | 20 | 15 | 30.5 | 46 | 27 | 32 |
| -25 | DL4-25S-M33Q | M36X2 | M33X2 | 20 | 20 | 30.5 | 52 | 36 | 41 |
| -28 | DL4-28L-M33Q | M36X2 | M33X2 | 24 | 23 | 30.5 | 52 | 36 | 41 |
| -30 | DL4-30S-M33Q | M42X2 | M33X2 | 25 | 20 | 37 | 54 | 36 | 41 |
| -30 | DL4-30S-M42Q | M42X2 | M42X2 | 25 | 26 | 37 | 48.5 | 41 | 50 |
| -35 | DL4-35L-M42Q | M45X2 | M42X2 | 20 | 30 | 37 | 48.5 | 41 | 50 |
| -38 | DL4-38S-M42Q | M52X2 | M42X2 | 32 | 26 | 37 | 48.5 | 41 | 50 |
| -38 | DL4-38S-M48Q | M52X2 | M48X2 | 32 | 32 | 37 | 49 | 48 | 55 |
| -42 | DL4-42L-M48Q | M52X2 | M48X2 | 36 | 36 | 37 | 49 | 48 | 55 |
