Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DLN

DLN Bulkhead Nut

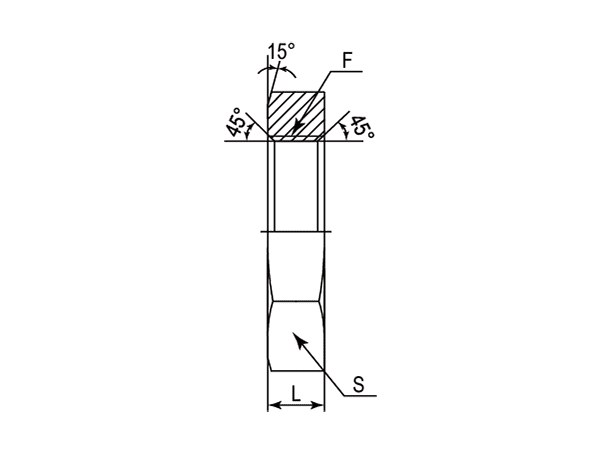

A model drawing of DLN hydraulic adaptor.

DME&JDE Code: DLN
Product Type: hydraulic adaptor
Standard: DIN 2353
Other Features: Bulkhead

Technical Data of DLN

-06
-10
-12
-15
-16
-18
-22
-25
-28
-30
-35

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F (Thread)	L	S
-	-	Metric	mm	mm
-01	DLN-06L	M12X1.5	6.00	17.00
-10	DLN-10L-08S	M16X1.5	6.00	22.00
-12	DLN-12L-10S	M18X1.5	6.00	24.00
-12	DLN-12S	M20X1.5	6.00	27.00
-15	DLN-15L-14S	M22X1.5	7.00	30.00
-16	DLN-16S	M24X1.5	7.00	32.00
-18	DLN-18L	M26X1.5	8.00	36.00
-22	DLN-22L H41	M30X2	8.00	41.00
-22	DLN-22L-20S	M30X2	8.00	41.00
-28	DLN-28L-25S	M36X2	9.00	46.00
-30	DLN-30S	M42X2	9.00	50.00
-35	DLN-35L	M45X2	9.00	55.00
