* Filter the F1 Thread through selecting the -XX options

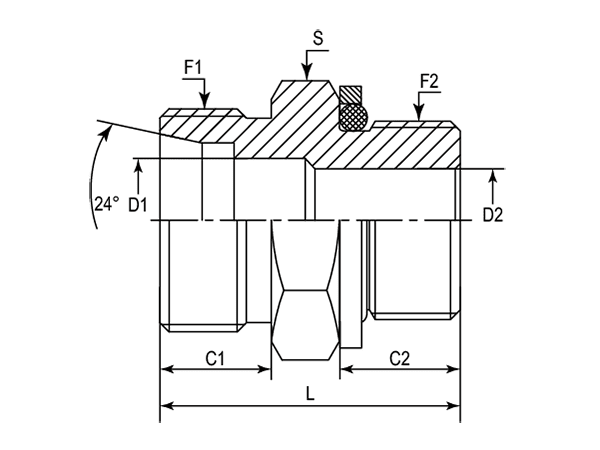

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | METRIC | mm | mm | mm | mm | mm | mm |
| -01 | DMC-06L-M10Q | M12X1.5 | M10X1 | 10.00 | 8.00 | 4.00 | 4.00 | 23.50 | 14 |
| -01 | DMC-06S-M12Q | M14X1.5 | M12X1.5 | 12.00 | 11.00 | 4.00 | 6.00 | 29.50 | 17 |
| -08 | DMC-08L-M12Q | M14X1.5 | M12X1.5 | 10.00 | 11.00 | 6.00 | 6.00 | 26.50 | 17 |
| -08 | DMC-08S-M14Q | M16X1.5 | M14X1.5 | 12.00 | 11.00 | 5.00 | 5.00 | 31.50 | 19 |
| -10 | DMC-10L-M14Q | M16X1.5 | M14X1.5 | 11.00 | 11.00 | 7.50 | 7.50 | 30.00 | 19 |
| -10 | DMC-10L-M22Q | M16X1.5 | M22X1.5 | 11.00 | 13.00 | 8.00 | 14.00 | 34.50 | 27 |
| -10 | DMC-10S-M16Q | M18X1.5 | M16X1.5 | 12.00 | 11.50 | 7.00 | 9.00 | 33.50 | 22 |
| -12 | DMC-12L-M16Q | M18X1.5 | M16X1.5 | 11.00 | 11.50 | 10.00 | 7.00 | 31.00 | 22 |
| -12 | DMC-12L-M22Q | M18X1.5 | M22X1.5 | 11.00 | 13.00 | 10.00 | 14.00 | 34.50 | 27 |
| -12 | DMC-12S-M18Q | M20X1.5 | M18X1.5 | 12.00 | 14.00 | 8.00 | 8.00 | 36.00 | 24 |
| -14 | DMC-14S-M20Q | M22X1.5 | M20X1.5 | 14.00 | 14.00 | 10.00 | 12.00 | 39.50 | 27 |
| -15 | DMC-15L-M18Q | M22X1.5 | M18X1.5 | 12.00 | 12.00 | 10.00 | 10.00 | 33.00 | 24 |
| -15 | DMC-15L-M22Q | M22X1.5 | M22X1.5 | 12.00 | 13.00 | 12.00 | 12.00 | 35.00 | 27 |
| -16 | DMC-16S-M22Q | M24X1.5 | M22X1.5 | 14.00 | 13.00 | 12.00 | 12.00 | 37.00 | 27 |
| -18 | DMC-18L-M22Q | M26X1.5 | M22X1.5 | 12.00 | 13.00 | 14.00 | 14.00 | 35.00 | 27 |
| -20 | DMC-20S-M27Q | M30X2 | M27X2 | 16.00 | 18.50 | 16.00 | 16.00 | 47.00 | 32 |
| -22 | DMC-22L-M22Q | M30X2 | M22X1.5 | 14.00 | 13.00 | 19.00 | 14.00 | 38.00 | 32 |
| -22 | DMC-22L-M26Q | M30X2 | M26X1.5 | 14.00 | 16.00 | 19.00 | 17.00 | 40.50 | 32 |
| -22 | DMC-22L-M27Q | M30X2 | M27X2 | 14.00 | 18.00 | 18.00 | 13.00 | 40.50 | 32 |
| -25 | DMC-25S-M33Q | M36X2 | M33X2 | 18.00 | 18.50 | 20.00 | 20.00 | 51.50 | 41 |
| -28 | DMC-28L-M33Q | M36X2 | M33X2 | 14.00 | 16.00 | 23.00 | 23.00 | 41.00 | 41 |
| -30 | DMC-30S-M42Q | M42X2 | M42X2 | 20.00 | 16.00 | 25.00 | 30.00 | 54.00 | 50 |
| -35 | DMC-35L-M42Q | M45X2 | M42X2 | 16.00 | 16.00 | 30.00 | 30.00 | 45.00 | 50 |
| -38 | DMC-38S-M48Q | M52X2 | M48X2 | 22.00 | 17.50 | 32.00 | 36.00 | 61.50 | 55 |
| -42 | DMC-42L-M48Q | M52X2 | M48X2 | 16.00 | 17.50 | 36.00 | 36.00 | 49.50 | 55 |
