* Filter the F1 Thread through selecting the -XX options

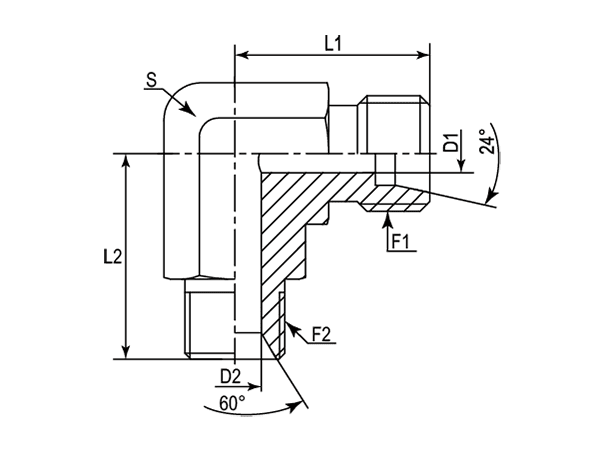

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | D1 | D2 | L1 | L2 | S |
|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | BSPP | mm | mm | mm | mm | mm |
| -01 | DLM-04LL-01G | M8X1 | 1/8"-28 | 3 | 4 | 15 | 17 | 9 |
| -06 | DLM-06LL-01G | M10X1 | 1/8"-28 | 4 | 3.5 | 19 | 20 | 11 |
| -06 | DLM-06L-01G | M12X1.5 | 1/8"-28 | 4 | 3.5 | 19 | 22.5 | 12 |
| -06 | DLM-06L-02G | M12X1.5 | 1/4"-19 | 4 | 4.7 | 21 | 24 | 12 |
| -06 | DLM-06S-02G | M14X1.5 | 1/4"-19 | 4 | 4.7 | 23 | 26 | 12 |
| -08 | DLM-08LL-01G | M12X1 | 1/8"-28 | 6 | 3.5 | 17 | 20 | 12 |
| -08 | DLM-08L-01G | M14X1.5 | 1/8"-28 | 6 | 3.5 | 21 | 22.5 | 12 |
| -08 | DLM-08L-02G | M14X1.5 | 1/4"-19 | 6 | 4.7 | 21 | 24 | 12 |
| -08 | DLM-08L-03G | M14X1.5 | 3/8"-19 | 6 | 7.9 | 24 | 28 | 17 |
| -08 | DLM-08L-04G | M14X1.5 | 1/2"-14 | 6 | 11.1 | 24 | 34 | 19 |
| -08 | DLM-08S-02G | M16X1.5 | 1/4"-19 | 5 | 4.7 | 24 | 27 | 14 |
| -10 | DLM-10L-03G | M16X1.5 | 3/8"-19 | 8 | 7.9 | 25 | 28 | 17 |
| -10 | DLM-10L-04G | M16X1.5 | 1/2"-14 | 8 | 11.1 | 24 | 34 | 19 |
| -10 | DLM-10S-03G | M18X1.5 | 3/8"-19 | 7 | 7.9 | 25 | 28 | 17 |
| -12 | DLM-12L-03G | M18X1.5 | 3/8"-19 | 10 | 7.9 | 24 | 28 | 17 |
| -12 | DLM-12L-04G | M18X1.5 | 1/2"-14 | 10 | 11.1 | 24 | 30 | 22 |
| -12 | DLM-12S-03G | M20X1.5 | 3/8"-19 | 8 | 7.9 | 29 | 28 | 19 |
| -12 | DLM-12S-04G | M20X1.5 | 1/2"-14 | 8 | 11.1 | 29 | 32 | 19 |
| -14 | DLM-14S-03G | M22X1.5 | 3/8"-19 | 10 | 7.9 | 30 | 30 | 19 |
| -14 | DLM-14S-04G | M22X1.5 | 1/2"-14 | 10 | 11.1 | 30 | 34 | 19 |
| -15 | DLM-15L-04G | M22X1.5 | 1/2"-14 | 12 | 11.1 | 28 | 34 | 19 |
| -15 | DLM-15L-06G | M22X1.5 | 3/4"-14 | 12 | 16.7 | 33 | 38 | 27 |
| -16 | DLM-16S-04G | M24X1.5 | 1/2"-14 | 12 | 11.1 | 33 | 36 | 24 |
| -16 | DLM-16S-06G | M24X1.5 | 3/4"-14 | 12 | 16.7 | 33 | 40 | 27 |
| -18 | DLM-18L-04G | M26X1.5 | 1/2"-14 | 15 | 11.1 | 31 | 36 | 24 |
| -18 | DLM-18L-06G | M26X1.5 | 3/4"-14 | 15 | 16.7 | 34 | 42 | 27 |
| -20 | DLM-20S-04G | M30X2 | 1/2"-14 | 16 | 11.1 | 37 | 41 | 27 |
| -20 | DLM-20S-06G | M30X2 | 3/4"-14 | 16 | 16.7 | 37 | 42 | 27 |
| -22 | DLM-22L-06G | M30X2 | 3/4"-14 | 19 | 16.7 | 35 | 38.5 | 27 |
| -25 | DLM-25S-08G | M36X2 | 1"-11 | 20 | 22.2 | 42 | 48 | 36 |
| -28 | DLM-28L-08G | M36X2 | 1"-11 | 24 | 22.2 | 38 | 48 | 36 |
| -30 | DLM-30S-10G | M42X2 | 11/4"-11 | 25 | 28.6 | 49 | 55 | 41 |
| -35 | DLM-35L-10G | M45X2 | 11/4"-11 | 30 | 28.6 | 45 | 55 | 41 |
| -38 | DLM-38S-12G | M52X2 | 11/2"-11 | 32 | 33.3 | 57 | 61 | 50 |
| -42 | DLM-42L-12G | M52X2 | 11/2"-11 | 36 | 33.3 | 51 | 61 | 50 |
