Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DVSTI-MED

DVSTI-MED Blanking Plug Metric for Port with ED Ring

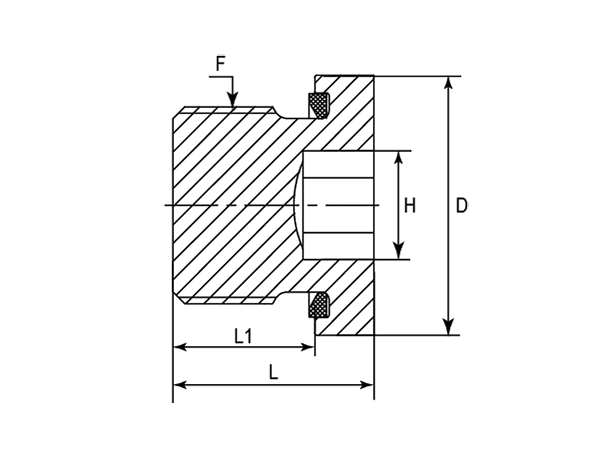

A drawing of DVSTI-MED hydraulic adaptor.

A 3D drawing of DVSTI-MED hydraulic adaptor.

A model drawing of DVSTI-MED hydraulic adaptor.

DME&JDE Code: DVSTI-MED
Product Type: hydraulic adaptor
Adaptor Standard: DIN 2353
Thread Types: Metric
Sealing Method: ED Rings
Other Features: Nut/Plug

Technical Data of DVSTI-MED

-08
-10
-12
-14
-16
-18
-22
-24
-27
-30
-33
-48
-60

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F (Thread)	D	L1	L	H
-	-	Metric	mm	mm	mm	mm
-01	DVSTI-M08ED	M8X1	12.00	8.00	12.00	4.00
-10	DVSTI-M10ED	M10X1	14.00	8.00	12.00	5.00
-12	DVSTI-M12ED	M12X1.5	17.00	12.00	17.00	6.00
-14	DVSTI-M14ED	M14X1.5	19.00	12.00	17.00	6.00
-16	DVSTI-M16ED	M16X1.5	21.90	12.00	17.00	8.00
-18	DVSTI-M18ED	M18X1.5	23.90	12.00	17.00	8.00
-22	DVSTI-M22ED	M22X1.5	27.00	14.00	19.00	10.00
-24	DVSTI-M24ED	M24X1.5	29.80	14.00	19.30	10.00
-27	DVSTI-M27ED	M27X2	31.90	16.00	21.00	12.00
-30	DVSTI-M30ED	M30X2	39.90	16.00	22.50	17.00
-33	DVSTI-M33ED	M33X2	39.90	16.00	22.50	17.00
-48	DVSTI-M48ED	M48X2	55.00	16.00	22.50	24.00
-60	DVSTI-M60ED	M60X2	70.00	18.00	25.00	27.00
